ZTV812 2.4 GHz Wireless A/V Color Camera... - FCC ID Q74ZTV-812

FCC ID Q74ZTV-812

Block Diagram

2.4 GHz Wireless A/V Color Camera

by Shenzhen ZhongWang Electronic Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDQ74ZTV-812
Document ID383202

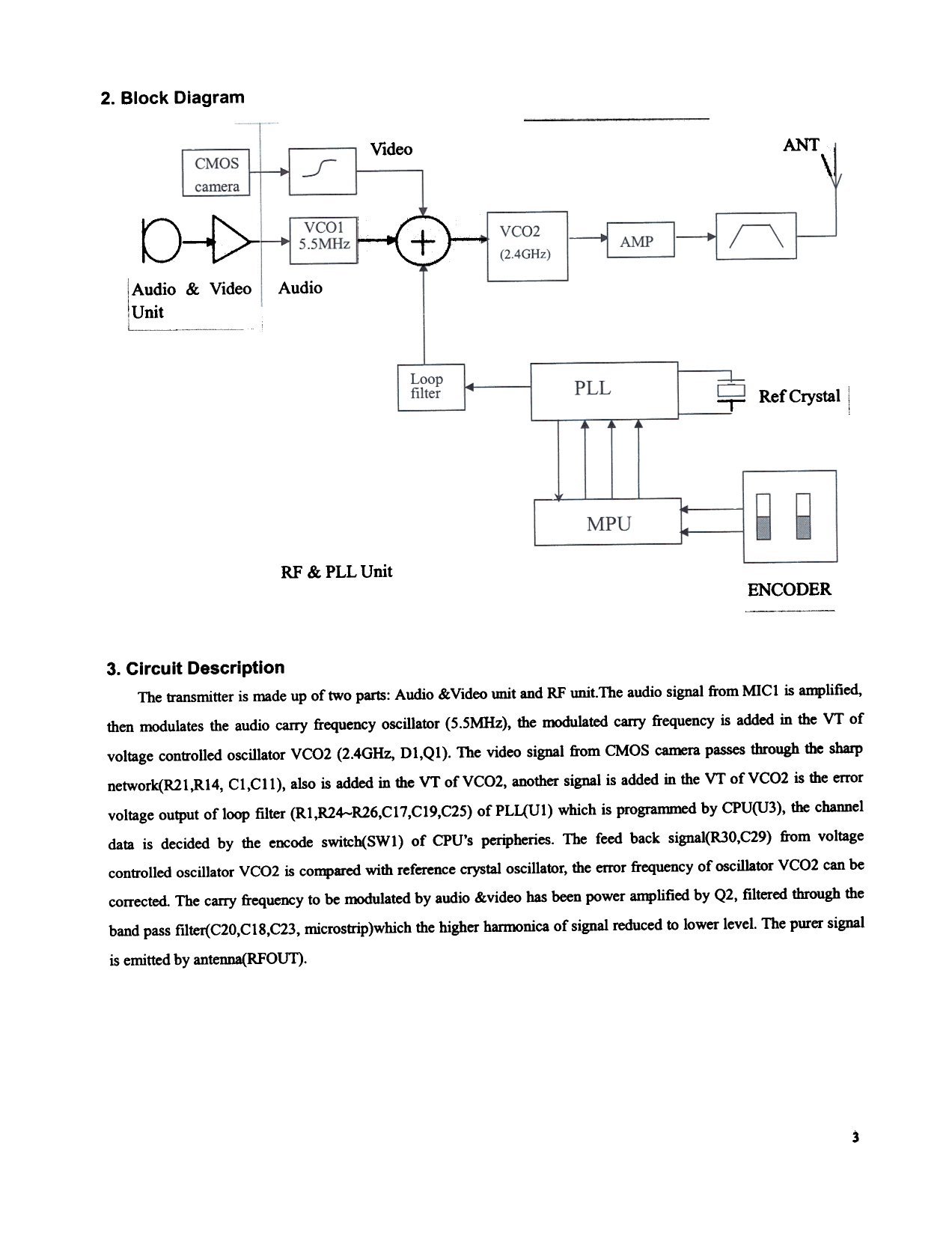

Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantShenzhen ZhongWang Electronic Co., Ltd.
Equipment Class2.4 GHz Wireless A/V Color Camera
Product CodeZTV812
Application IDsUqaHVI/kYdFfm8vxtjiUA==
Application PurposeOriginal Equipment
Application Date2003-12-18
Frequency Range2428-2468 MHz
FRN0009072307
Test FirmBay Area Compliance Laboratory
Certified ByTong Ying
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-12-19
Available2003-12-18
Created2019-01-15
Modified2019-01-15
Pages1
File TypeAdobe Acrobat PDF
File Size150029
File SHA-2560dc8defba5f363641d8025bb7fbbf7282b737066287787d4803de9e5f7630a36
PDF Metadata ProducerGPL Ghostscript 9.25
FCC.gov SourcesFCC.gov 383202
