R8964S26H LTE TDD RRU Teardown Internal... - FCC ID Q78-R8964S26H
FCC ID Q78-R8964S26H

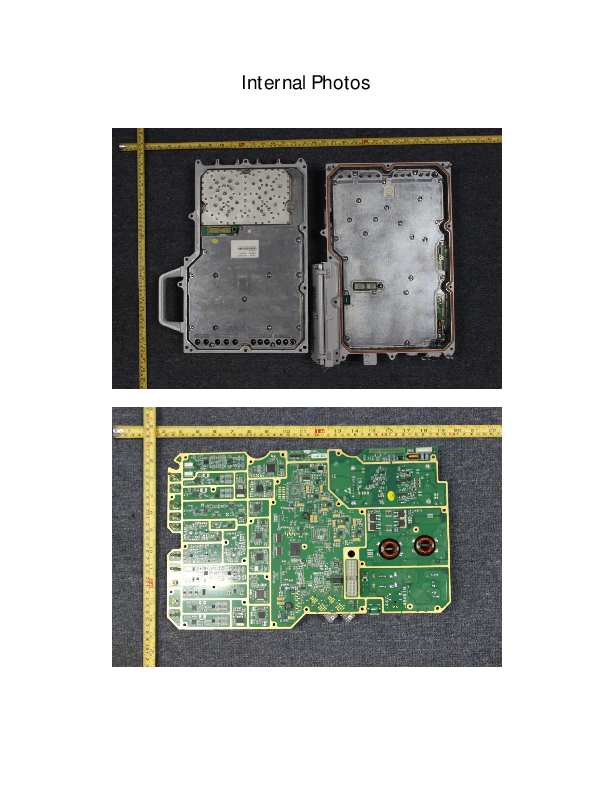

Internal photos
LTE TDD RRU
Document preview loads when visible.
Document Details
| FCC ID | Q78-R8964S26H |
|---|---|
| Document ID | 2477759 |
| Document Type | Internal Photos |
| Description | Internal photos |
| Applicant | ZTE Corporation |
| Equipment Class | LTE TDD RRU |
| Product Code | R8964S26H |
| Application ID | DjEF4QkpB6lsGbVZMuxutg== |
| Application Purpose | Original Equipment |
| Application Date | 2014-12-18 |
| Frequency Range | 2550-2680 MHz |
| FRN | 0009043175 |
| Certified By | Royce.Wang |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2014-12-18 |
| Available | 2014-12-18 |
| Created | 2014-12-02 |
| Modified | 2014-12-02 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 523411 |
| File SHA-256 | 3f126385d5e4afd1a266894bdf488ce9958d83209e83c6f5226b7d813d6bd8d2 |
| PDF Metadata Producer | PDF-XChange 3.60.0106 (Windows) |
| FCC.gov Sources | FCC.gov 2477759 |
