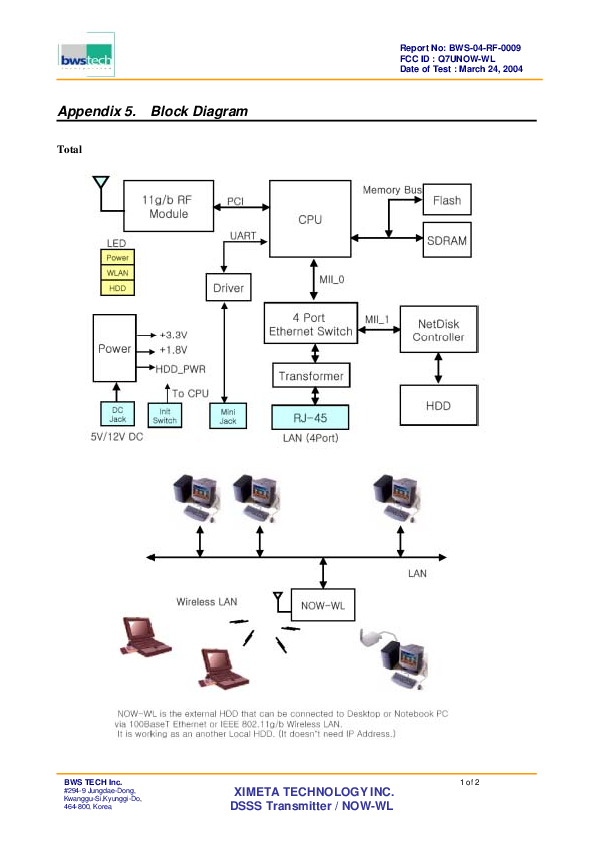

NOWWL NetDisk Wireless Office Block Diagram - FCC ID Q7UNOW-WL

FCC ID Q7UNOW-WL

Block Diagram

NetDisk Wireless Office

by Ximeta Technology Inc.

Document preview loads when visible.

Document Details

FCC IDQ7UNOW-WL
Document ID409796
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantXimeta Technology Inc.
Equipment ClassNetDisk Wireless Office
Product CodeNOWWL
Application IDBalAKFqEdqpf768i5ylBPA==
Application PurposeOriginal Equipment
Application Date2004-03-30
Frequency Range2412-2462 MHz
FRN0009054842
Test FirmBWS TECH INC
Certified ByTAEHYUN NAM President (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-03-30
Available2004-03-30
Created2004-03-26
Modified2004-03-26
Pages2
File TypeAdobe Acrobat PDF
File Size133084
File SHA-25619c8bbaf65b1dda308f75390bdd72a0b06a50d26ed0034ece2cfbef1c4f6fc75
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows)
FCC.gov SourcesFCC.gov 409796
