19H82R1 Bluetooth 4.0 Low Energy Wristband... - FCC ID Q7Z-19H82R1

FCC ID Q7Z-19H82R1

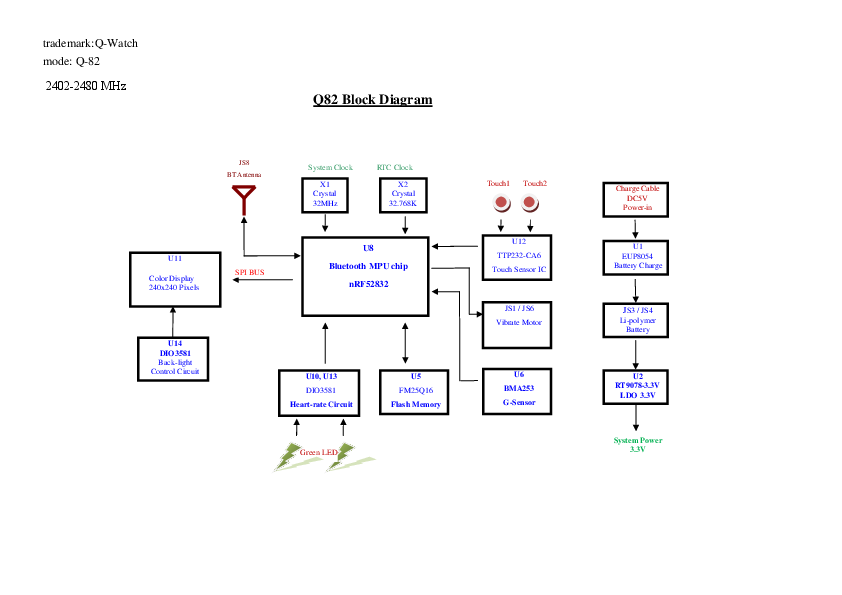

Block Diagram

Bluetooth 4.0 Low Energy Wristband

by Mobile Action Technology Inc.

Document preview loads when visible.

Document Details

FCC IDQ7Z-19H82R1
Document ID4148612
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantMobile Action Technology Inc.
Equipment ClassBluetooth 4.0 Low Energy Wristband
Product Code19H82R1
Application ID6P1gaIRZ4NvO4qcLtSdAfw==
Application PurposeOriginal Equipment
Application Date2019-02-11
Frequency Range2402-2480 MHz
FRN0009054818
Test FirmA Test Lab Techno Corp.
Certified ByMaru Wang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2019-01-28
Available2019-02-11
Created2019-01-09
Modified2019-01-24
Pages1
File TypeAdobe Acrobat PDF
File Size58822
File SHA-25692b2bb60aef7a970a3bd06865ad3643c00020eafa7f1a0f28def342bf40fdb2a
PDF Metadata AuthorMA Steven
PDF Metadata ProducerAcrobat Distiller 8.1.0 (Windows) Steven
FCC.gov SourcesFCC.gov 4148612
