BEFCMU10V3 CABLE MODEM Block Diagram - FCC ID Q87-BEFCMU10V3
FCC ID Q87-BEFCMU10V3

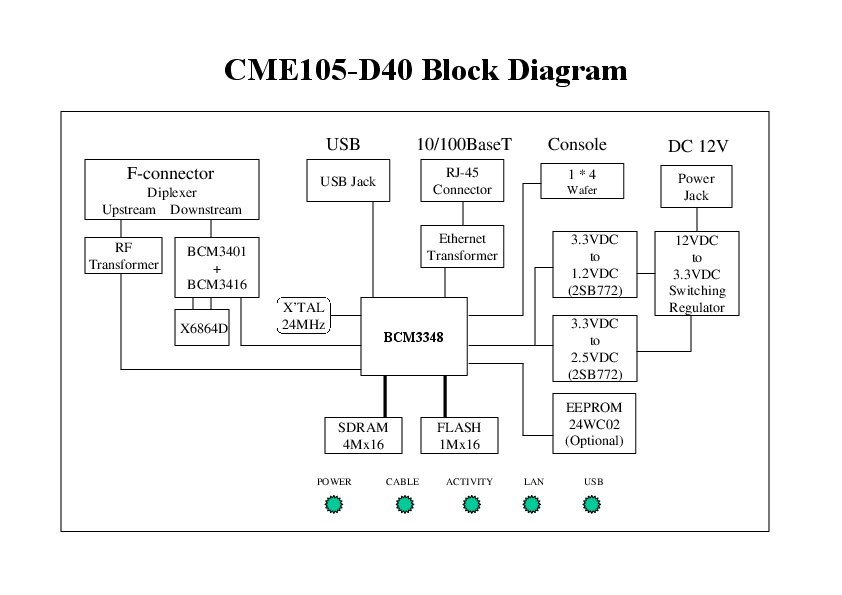

BLOCK DIAGRAM
CABLE MODEM
by LINKSYS LLC
Document preview loads when visible.
Document Details
| FCC ID | Q87-BEFCMU10V3 |
|---|---|
| Document ID | 338422 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Document Title | CME105-D40-方塊圖.PDF |
| Applicant | LINKSYS LLC |
| Equipment Class | CABLE MODEM |
| Product Code | BEFCMU10V3 |
| Application ID | RvLNDZviWZkPu+pLivc+ZQ== |
| Application Purpose | Original Equipment |
| Application Date | 2003-07-09 |
| FRN | 0009100470 |
| Test Firm | DEKRA Testing and Certification Co., Ltd. |
| Certified By | MAX LIN R.D. |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-07-09 |
| Available | 2003-07-09 |
| Created | 2003-06-26 |
| Modified | 2003-07-03 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 36876 |
| File SHA-256 | b0f45bfb4440aa0526eae329757131d015503ba83da5671a100df70b9d1ffcd3 |
| PDF Metadata Author | vincemt |
| PDF Metadata Producer | Acrobat PDFWriter 4.0Windows ª© vincemt |
| FCC.gov Sources | FCC.gov 338422 |
