BT12S Bluetooth Speaker Teardown Internal Photos - FCC ID Q8W-BT12S

FCC ID Q8W-BT12S

Internal photos

Bluetooth Speaker

by SHENZHEN WEIKING TECHNOLOGY CO.,LTD

Document preview loads when visible.

Document Details

FCC IDQ8W-BT12S
Document ID2344433
Document TypeInternal Photos
DescriptionInternal photos

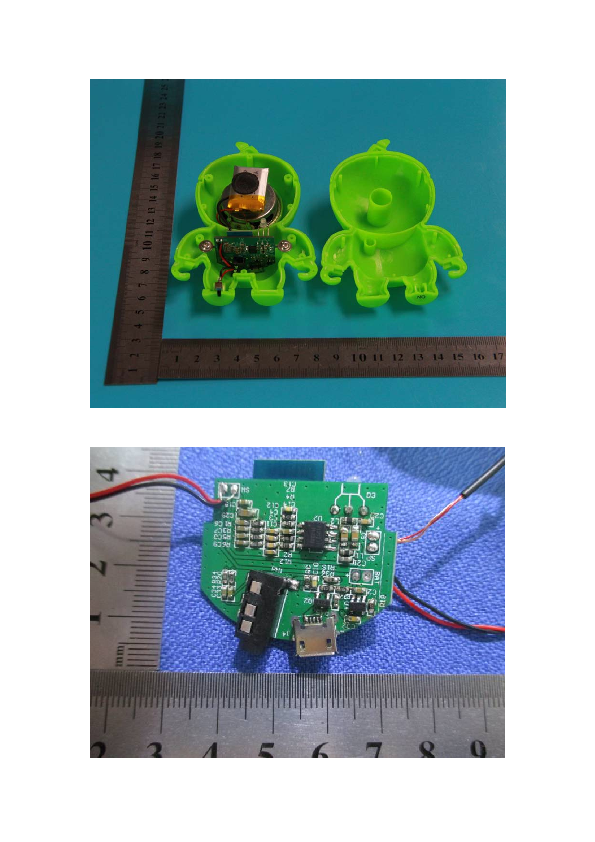

Document TitleInternal Photos of EUT
ApplicantSHENZHEN WEIKING TECHNOLOGY CO.,LTD
Equipment ClassBluetooth Speaker
Product CodeBT12S
Application IDZzJzUYaaXhRFV5hlmwOBiw==
Application PurposeOriginal Equipment
Application Date2014-08-03
Frequency Range2402-2480 MHz
FRN0022137004
Test FirmShenzhen CTL Testing Technology Co., Ltd.
Certified ByLi Guicai General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-08-03
Available2014-08-03
Created2014-07-28
Modified2014-07-28
Pages3
File TypeAdobe Acrobat PDF
File Size354839
File SHA-256094f381e7bce27dd7a1069b84381862f80bdad8fec69676b6d2cc942c96ba3cb
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 2344433
