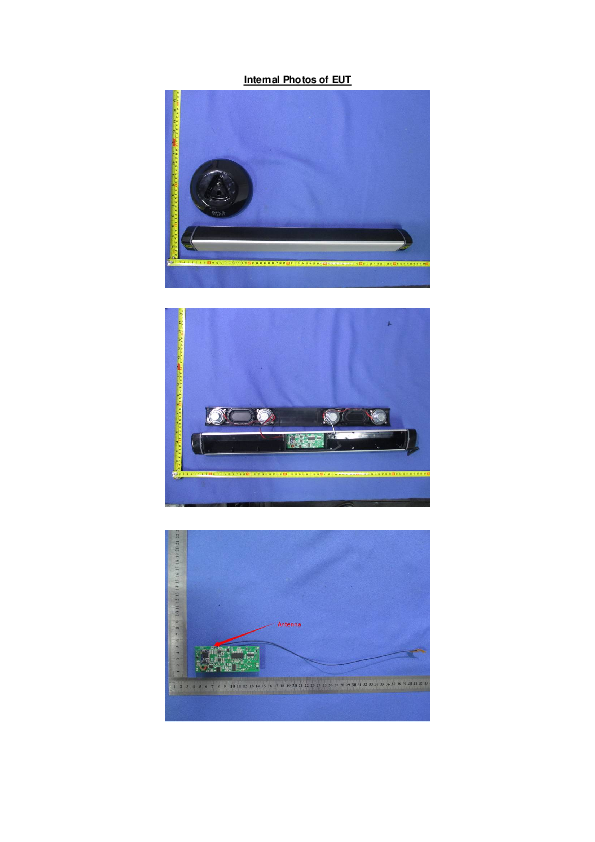

BT48S BLUETOOTH SPEAKER Teardown Internal Photos - FCC ID Q8W-BT48S

FCC ID Q8W-BT48S

Internal photos

BLUETOOTH SPEAKER

by SHENZHEN WEIKING TECHNOLOGY CO.,LTD

Document preview loads when visible.

Document Details

FCC IDQ8W-BT48S
Document ID2395811
Document TypeInternal Photos
DescriptionInternal photos
Document Title文档 2
ApplicantSHENZHEN WEIKING TECHNOLOGY CO.,LTD
Equipment ClassBLUETOOTH SPEAKER
Product CodeBT48S
Application IDwsZob1o/DuHgfhZXF28zeA==
Application PurposeOriginal Equipment
Application Date2014-09-20
Frequency Range2402-2480 MHz
FRN0022137004
Test FirmShenzhen CTL Testing Technology Co., Ltd.
Certified ByLi Guicai General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-09-20
Available2014-09-20
Created2014-09-15
Modified2014-09-15
Pages4
File TypeAdobe Acrobat PDF
File Size544871
File SHA-25635f232b1fa137bf615aeea488e7ffec96e7e9cd9388191230f81e8797103a272
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 2395811
