TE219WELNL Wireless Indoor/Outdoor... - FCC ID Q9PTE219W-EL-NL

FCC ID Q9PTE219W-EL-NL

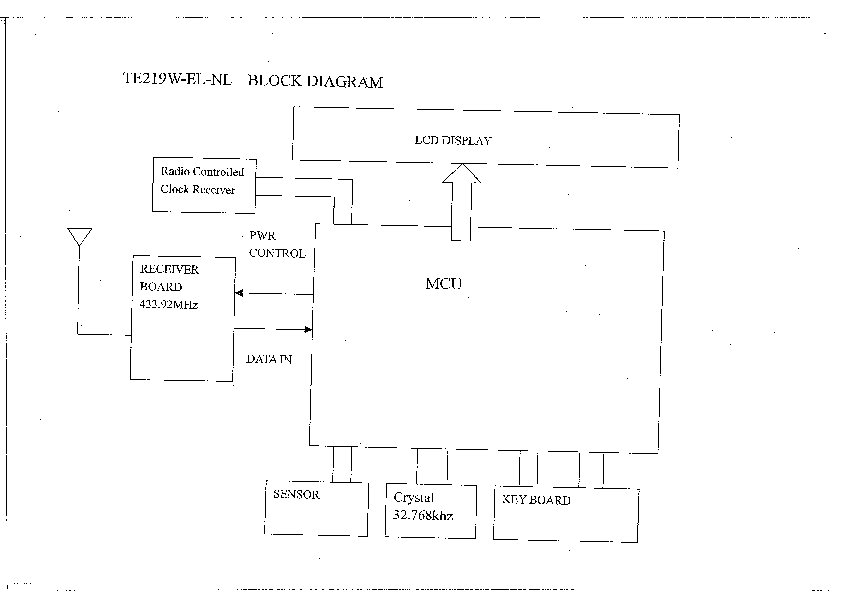

Block Diagram

Wireless Indoor/Outdoor Thermometer (Receiver)

by Hideki Electronics Limited

Document preview loads when visible.

Document Details

FCC IDQ9PTE219W-EL-NL
Document ID458899
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantHideki Electronics Limited
Equipment ClassWireless Indoor/Outdoor Thermometer (Receiver)
Product CodeTE219WELNL
Application ID/P95QitG/LgnCzCePiXxdg==
Application PurposeOriginal Equipment
Application Date2004-08-11
Frequency Range433.92 MHz
FRN0018517011
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-08-11
Available2004-08-11
Created2004-07-29
Modified2004-07-29
Pages2
File TypeAdobe Acrobat PDF
File Size43275
File SHA-256690a51155dd8bdfe41aa4536d3ffe86b0064185d680a09b42ac6f88a59e512f4
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 458899
