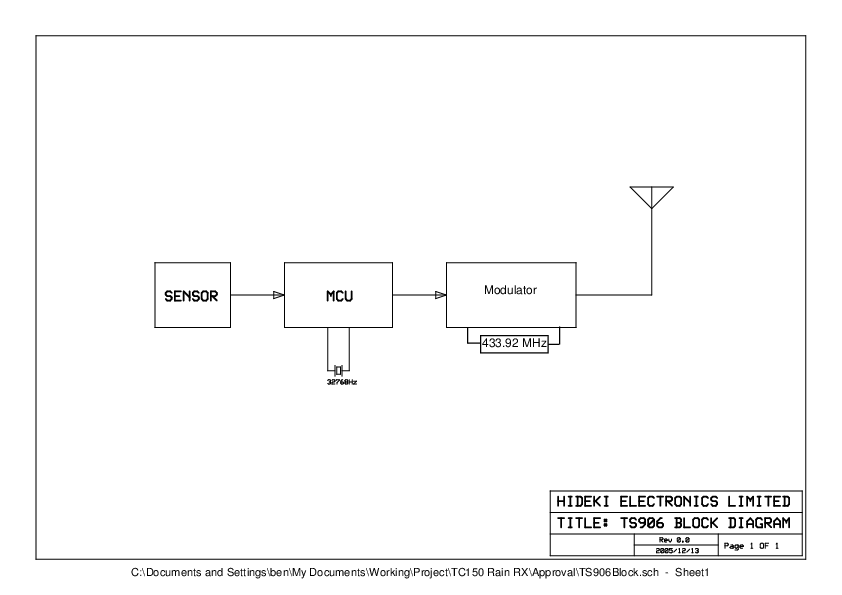

TS906 Wireless Rain Gauge Block Diagram - FCC ID Q9PTS906

FCC ID Q9PTS906

Block Diagram

Wireless Rain Gauge

by Hideki Electronics Limited

Document preview loads when visible.

Document Details

FCC IDQ9PTS906
Document ID648600
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleExpressSCH
ApplicantHideki Electronics Limited
Equipment ClassWireless Rain Gauge
Product CodeTS906
Application IDHp0MhyWHFZ0pYwkBgDibVQ==
Application PurposeOriginal Equipment
Application Date2006-04-19
Frequency Range433.92 MHz
FRN0018517011
Test FirmIntertek Testing Services Hong Kong
Certified ByBilly Chow Asst. Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-04-19
Available2006-04-19
Created2006-04-06
Modified2006-04-06
Pages1
File TypeAdobe Acrobat PDF
File Size30992
File SHA-2565fda0f0eec18f25074df18ee554a81d2d8d19393fd0c4b1e0aa93f8f19babe16
PDF Metadata Authorben
PDF Metadata ProducerGNU Ghostscript 7.06 ben
FCC.gov SourcesFCC.gov 648600
