VPN350 Wireless LAN Adapter (Unlicensed)... - FCC ID QAX-VPN350

FCC ID QAX-VPN350

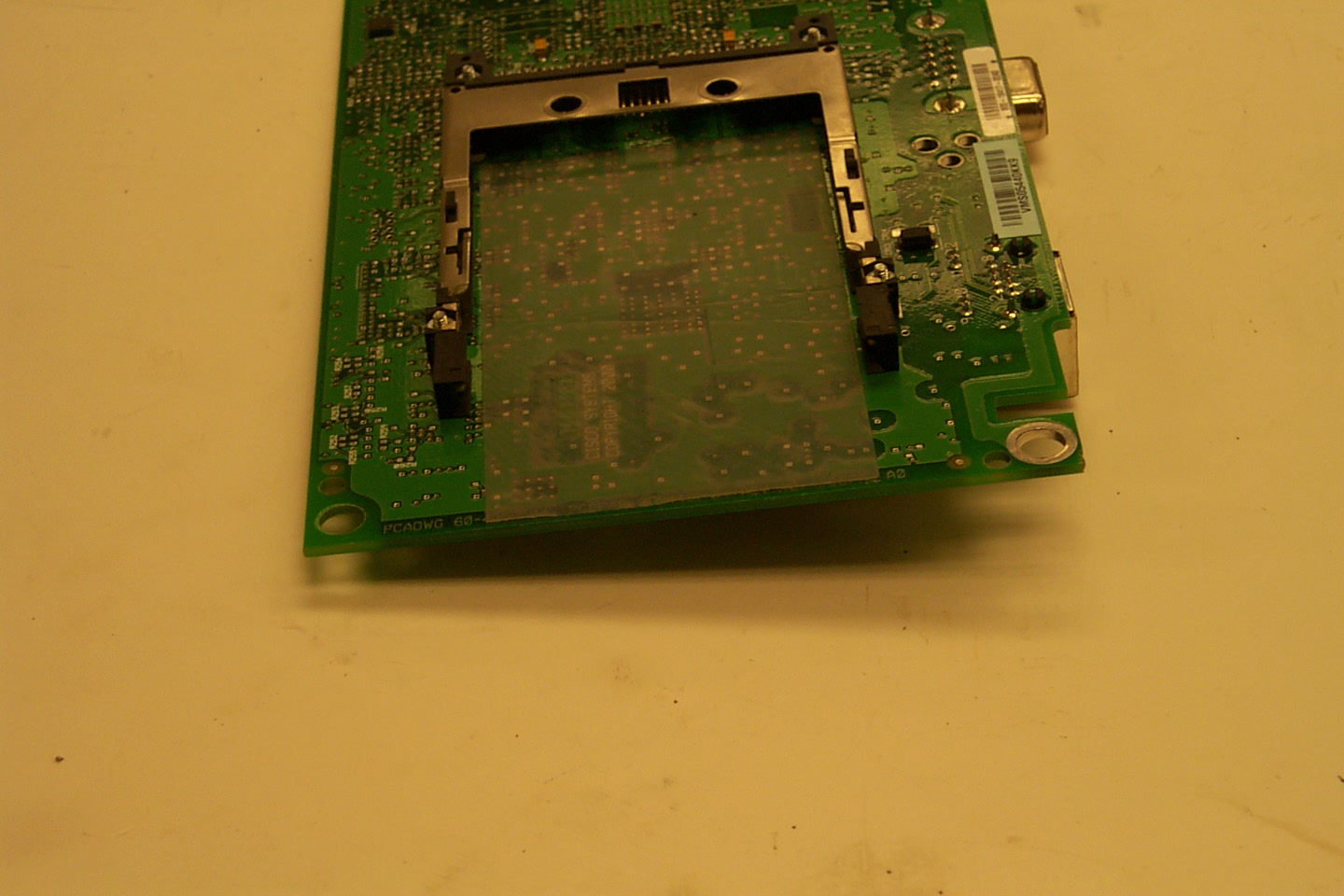

Board without LAN module

Wireless LAN Adapter (Unlicensed)

by VPN Systems, Inc.

Document preview loads when visible.

Document Details

FCC IDQAX-VPN350
Document ID269448
Document TypeInternal Photos
DescriptionBoard without LAN module
ApplicantVPN Systems, Inc.
Equipment ClassWireless LAN Adapter (Unlicensed)
Product CodeVPN350
Application IDoZr2p9PlWwjWbtX0CgC5jg==
Application PurposeOriginal Equipment
Application Date2003-02-27
Frequency Range2412-2465 MHz
FRN0004305033
Test FirmChomerics Test Services
Certified ByEdward W. Suor Managing Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-09-11
Available2003-02-27
Created2002-09-06
Modified2002-09-06
Pages1
File TypeAdobe Acrobat PDF
File Size2810464
File SHA-256e4fd83c837f8fac3eaeeed8dc45ecf08d890bd1033c60f1a268fab1f53816db5
PDF Metadata ProducerAcrobat 4.05 Import Plug-in for Windows Acrobat 4.05 Import Plug-in for Windows
FCC.gov SourcesFCC.gov 269448
