234508903 RC Car Block Diagram - FCC ID QCT234508903

FCC ID QCT234508903

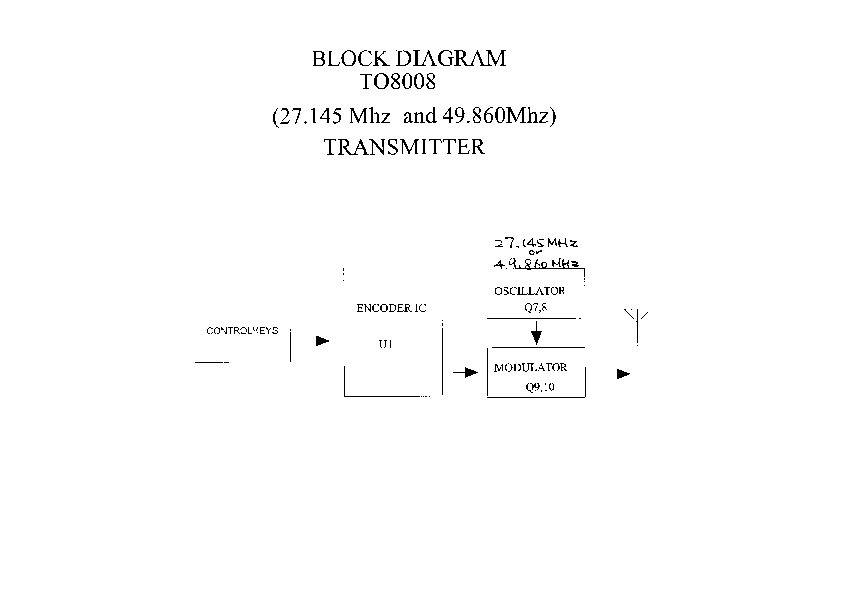

Block Diagram

RC Car

by Winmate Development Limited

Document preview loads when visible.

Document Details

FCC IDQCT234508903
Document ID333177
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantWinmate Development Limited
Equipment ClassRC Car
Product Code234508903
Application IDVSfxlxmSVxWJeQ1VtWHSdg==
Application PurposeOriginal Equipment
Application Date2003-06-17
Frequency Range27.145 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-06-17
Available2003-06-17
Created2003-05-15
Modified2003-05-15
Pages1
File TypeAdobe Acrobat PDF
File Size9884
File SHA-256b8f008ee52deef43b8645baa09da74fb377d8cacc5ff5ba6c8da727ce4ab0b86
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 333177
