234508904 Remote Controlled Toy Schematics - FCC ID QCT234508904
FCC ID QCT234508904

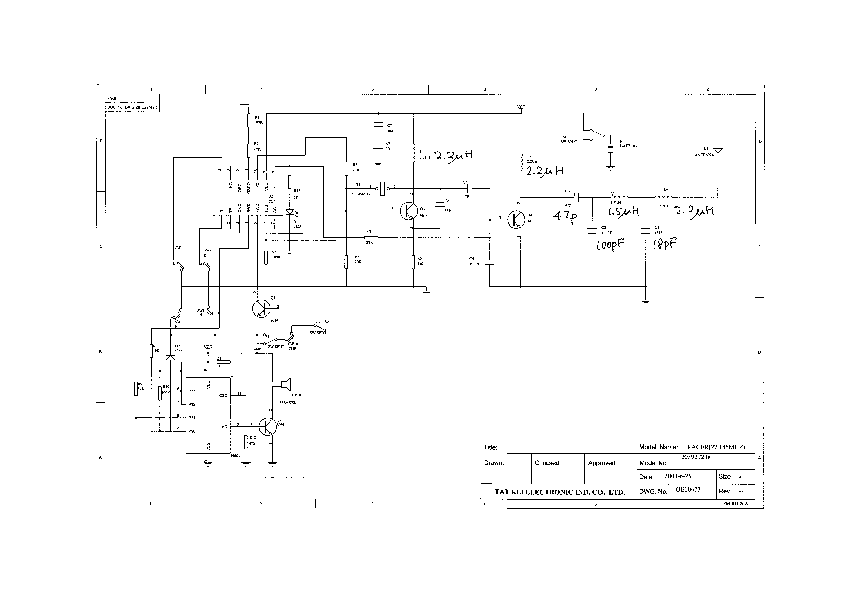

Schematics
Remote Controlled Toy
Document preview loads when visible.
Document Details
| FCC ID | QCT234508904 |
|---|---|
| Document ID | 344122 |
| Document Type | Schematics |
| Description | Schematics |
| Applicant | Winmate Development Limited |
| Equipment Class | Remote Controlled Toy |
| Product Code | 234508904 |
| Application ID | S/D9X/z16iD8jTWH/RCwCg== |
| Application Purpose | Original Equipment |
| Application Date | 2003-07-30 |
| Frequency Range | 27.145 MHz |
| FRN | 0003786449 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-07-30 |
| Available | 2003-07-30 |
| Created | 2003-07-14 |
| Modified | 2003-07-14 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 23127 |
| File SHA-256 | 9c47f0800dcb715e47e4e26f9f9bac0edfb8ee654a41d4f169621c5536d72eef |
| PDF Metadata Author | ITS ELECTRIC TOY |
| PDF Metadata Producer | HP 9100C Digital Sender |
| FCC.gov Sources | FCC.gov 344122 |
