100 Wireless mask communicator for firemen Test... - FCC ID QDQ-100

FCC ID QDQ-100

Modulation limiting plot for 3000Hz

Wireless mask communicator for firemen

by Safety Tech Industries Inc

Document preview loads when visible.

Document Details

FCC IDQDQ-100
Document ID257128
Document TypeTest Report

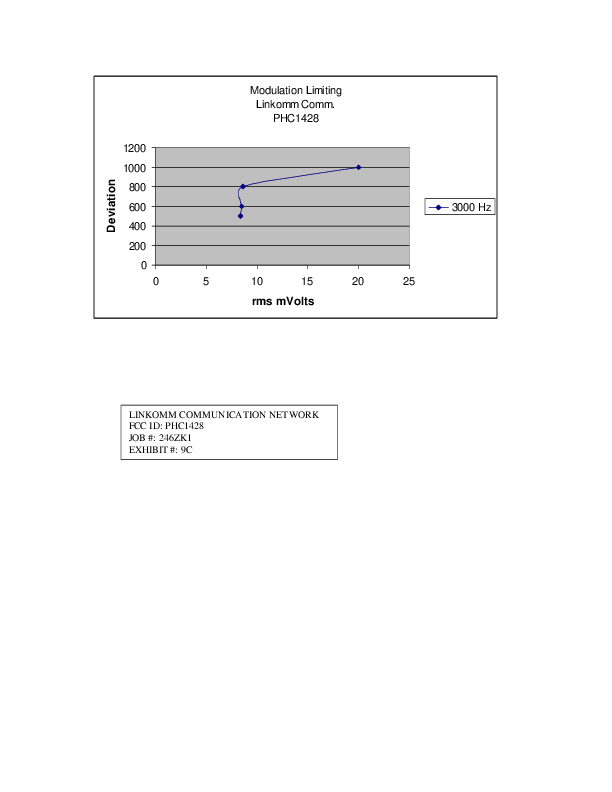

DescriptionModulation limiting plot for 3000Hz
ApplicantSafety Tech Industries Inc
Equipment ClassWireless mask communicator for firemen
Product Code100
Application IDqt6qWfpyOextnbFn9BMv6A==
Application PurposeOriginal Equipment
Application Date2002-07-31
Frequency Range467.663-467.713 MHz
FRN0007230931
Certified ByStephen M. Petix Chief Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-07-17
Available2002-07-31
Created2001-04-09
Modified2002-07-17
Pages1
File TypeAdobe Acrobat PDF
File Size4291
File SHA-256dd56e3cffcdedfab153ca763059e0eb382e0c4b4e8e40198a635541dc3adb469
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 257128
