FCC ID QDS-BRCM1054
802.11a/b/g/n WLAN PCI-E Mini Card
by Broadcom Corporation
Grantee Code: QDS Product Code: BRCM1054
Latest application date: 2016-02-19
Device Images
FCC ID Device Details
| FCC ID | QDS-BRCM1054 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | QDS |
| Product Code | BRCM1054 |
| Applicant Business | Broadcom Corporation 🇺🇸 |
| Related Domains |  broadcom.com  ul.com |
| Equipment Class | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Test Firm | UL Verification Services Inc. (formerly UL CCS) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-02-19 |
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2012-11-08 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2012-11-08 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2011-07-21 |
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2011-07-21 |
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2011-03-03 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2011-03-03 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2011-02-22 |
| 5180-5240 MHz | Original Equipment | 2010-12-17 |
| 2412-2462 MHz | Original Equipment | 2010-12-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| OEM Guide | Users Manual | 2011-08-25 | PDF 160.4 KB |
| User Manual | Users Manual | 2011-08-25 | PDF 1.6 MB |
| User Manual Regulatory | Users Manual | 2011-08-25 | PDF 1 MB |
| UserMan (statement)_QDS-BRCM1054 | Users Manual | 2011-08-05 | PDF 130.5 KB |
| UserMan_QDS-BRCM1054 | Users Manual | 2011-08-05 | PDF 699 KB |
| User Manual 1 | Users Manual | 2011-05-05 | PDF 762.9 KB |
| User Manual 2 | Users Manual | 2011-05-05 | PDF 250.5 KB |
| User manual 1 | Users Manual | 2011-05-05 | PDF 762.9 KB |
| User manual 2 | Users Manual | 2011-05-05 | PDF 250.5 KB |
| Int Pho_QDS-BRCM1054 | Internal Photos | 2011-08-05 | PDF 799.8 KB |
| Photos Int | Internal Photos | 2011-05-05 | PDF 196.5 KB |
| Ext Pho_QDS-BRCM1054 | External Photos | 2011-08-05 | PDF 189.8 KB |
| Photos Ext | External Photos | 2011-05-05 | PDF 354.9 KB |
| Label Loc_QDS-BRCM1054 | ID Label/Location Info | 2011-07-21 | PDF 159.3 KB |
| Label Smpl (module)_QDS-BRCM1054 | ID Label/Location Info | 2011-07-21 | PDF 28.6 KB |
| Label Smpl (with FCC logo)_QDS-BRCM1054 | ID Label/Location Info | 2011-07-21 | PDF 12.3 KB |
| Label Smpl_QDS-BRCM1054 | ID Label/Location Info | 2011-07-21 | PDF 295.9 KB |
| Label | ID Label/Location Info | 2010-12-17 | PDF 27.9 KB |
| 15U22568-E1V3 FCC C2PC SETUP PHOTOS UNII WLAN 0216.pdf | Test Setup Photos | 2016-02-19 | PDF 542.4 KB |

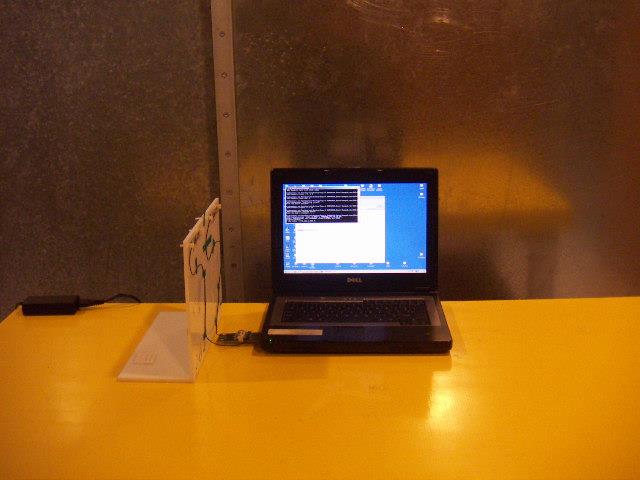

| Test Setup Photos | Test Setup Photos | 2013-05-07 | PDF 732.1 KB |
| SAR Photos | Test Setup Photos | 2011-08-25 | PDF 325.3 KB |
| Test Setup Photos | Test Setup Photos | 2011-08-05 | PDF 98.1 KB |
| Test Photos | Test Setup Photos | 2011-07-31 | PDF 401.8 KB |
| Photo Test Setup | Test Setup Photos | 2011-05-05 | PDF 201.9 KB |
| Photo Test Setup | Test Setup Photos | 2011-05-05 | PDF 270.1 KB |
| Photos Test Setup | Test Setup Photos | 2011-05-05 | PDF 225.5 KB |
| 15U22568-E1V3 FCC C2PC REPORT UNII WLAN 0216.pdf | Test Report | 2016-02-19 | PDF 3.9 MB |
| Test Rpt | Test Report | 2012-11-08 | PDF 548.7 KB |
| Test Rpt | Test Report | 2012-11-08 | PDF 414.9 KB |
| SAR Report | RF Exposure Info | 2011-03-03 | PDF 1.2 MB |
| Test Report | Test Report | 2011-02-22 | PDF 472.5 KB |
| Test Report | Test Report | 2010-12-17 | PDF 3.9 MB |
| Test Report | Test Report | 2010-12-17 | PDF 3.4 MB |
| Test report | Test Report | 2010-12-17 | PDF 340 KB |
| Attestation Statement Ad Hoc Declaration | Attestation Statements | 2011-07-21 | PDF 30.5 KB |
| Ad Hoc Ltr | Attestation Statements | 2011-03-03 | PDF 28.6 KB |
| Ad Hoc Attestation | Attestation Statements | 2010-12-17 | PDF 28.6 KB |
| BCM943228HM4L FCC C2PC (New FCC UNII rule).pdf | Cover Letter(s) | 2016-02-19 | PDF 201.8 KB |
| BCM943228HM4L FCC conf req (New FCC UNII rule).pdf | Cover Letter(s) | 2016-02-19 | PDF 244.8 KB |
| FCC Agent Authorization Letter (UL) Sept 2015.pdf | Cover Letter(s) | 2016-02-19 | PDF 537.4 KB |
| Auth ltr | Cover Letter(s) | 2012-11-08 | PDF 29.3 KB |
| Conf ltr | Cover Letter(s) | 2012-11-08 | PDF 36.1 KB |
| Cvr Ltr | Cover Letter(s) | 2012-11-08 | PDF 29.9 KB |
| Cvr Ltr2 | Cover Letter(s) | 2012-11-08 | PDF 22.4 KB |
| Confidentiality Request | Cover Letter(s) | 2011-07-21 | PDF 30.3 KB |
| Cover Letter Agent Authorization | Cover Letter(s) | 2011-07-21 | PDF 27 KB |
| Cover Letter Description of Change | Cover Letter(s) | 2011-07-21 | PDF 9.9 KB |
| Ad Hoc Ltr | Cover Letter(s) | 2011-03-03 | PDF 28.6 KB |
| Agent Ltr | Cover Letter(s) | 2011-03-03 | PDF 95.9 KB |
| Auth Ltr | Cover Letter(s) | 2011-03-03 | PDF 115.5 KB |
| C2PC Ltr | Cover Letter(s) | 2011-03-03 | PDF 37.5 KB |
| Conf Ltr | Cover Letter(s) | 2011-03-03 | PDF 37.7 KB |
| RF Exposure History | Cover Letter(s) | 2011-03-03 | PDF 72.6 KB |
| Agent Auth Ltr | Cover Letter(s) | 2011-02-22 | PDF 29.3 KB |
| Confid Request | Cover Letter(s) | 2011-02-22 | PDF 34.4 KB |
| Cvr Ltr | Cover Letter(s) | 2011-02-22 | PDF 31.9 KB |
| Cvr Ltr 2 | Cover Letter(s) | 2011-02-22 | PDF 108.2 KB |
| Conf Ltr | Cover Letter(s) | 2010-12-17 | PDF 40.8 KB |
| Conf Request | Cover Letter(s) | 2010-12-17 | PDF 40.8 KB |
| Modular Letter | Cover Letter(s) | 2010-12-17 | PDF 20.4 KB |
| 15U22568-E2V2 FCC MPE Report 0216.pdf | RF Exposure Info | 2016-02-19 | PDF 237.1 KB |
| RF Exposure Info - SAR (15.247) | RF Exposure Info | 2011-07-21 | PDF 3 MB |
| RF Exposure Info - SAR (15.407) | RF Exposure Info | 2011-07-21 | PDF 2.9 MB |
| Dipole 5G | RF Exposure Info | 2011-03-03 | PDF 765.4 KB |
| Dipole 2.4G | RF Exposure Info | 2011-03-03 | PDF 518.5 KB |
| Probe | RF Exposure Info | 2011-03-03 | PDF 625.8 KB |
| SAR Plots 2.4G | RF Exposure Info | 2011-03-03 | PDF 567.1 KB |
| SAR Plots 5G | RF Exposure Info | 2011-03-03 | PDF 4.2 MB |
| MPE | RF Exposure Info | 2010-12-17 | PDF 107.2 KB |
| MPE | RF Exposure Info | 2010-12-17 | PDF 106.7 KB |
| BCM943228HM4L Operational Description, FCC Updated New UNII Rule.pdf Metadata only | Operational Description | PDF 136.9 KB | |
| KDB 594280 D02 v01r03 U-NII Device SW Security Statement (BRCM).pdf Metadata only | Operational Description | PDF 76.3 KB |
Application Information
| Application ID | v4GddI2K3IOuoxnhpmEQdw== |
|---|---|
| Final Action Date | 2016-02-19 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0007091952 |
| Model | BRCM1054 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Responsible Party | Anne Liang, Manager, Compliance Engineering, aliang@broadcom.com , 4089225890 |
| Technical Contact | Ana Aumentado, UL VERIFICATION SERVICES INC., Ana.M.Aumentado@ul.com , 510.771.1000 |
| Non-Technical Contact | Ana Aumentado, UL VERIFICATION SERVICES INC., Ana.M.Aumentado@ul.com , 510-771-1000 |
| Test Firm | Jay Kogoma, UL Verification Services Inc. (formerly UL CCS), jay.kogoma@ul.com , 510-319-4135 |
| TCB Email | LST.FRE.CertNotice@ul.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive change. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. Compliance of this device in all final product configurations is the responsibility of the Grantee. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. Use at lesser separation distance requires SAR evaluation and additional certification. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| v4GddI2K3IOuoxnhpmEQdw== | 2016-02-19 | Class II permissive change or modification of presently authorized equipment |
| XUsmNZlOSmYD2junlUlDlQ== | 2012-11-08 | Class II permissive change or modification of presently authorized equipment |
| DX8b98+nfS0+A/CmgHEEGg== | 2012-11-08 | Class II permissive change or modification of presently authorized equipment |
| MZfjDYgHtX2vgXbWTwQfbQ== | 2011-07-21 | Class II permissive change or modification of presently authorized equipment |
| FzsQrJ3iPM6vu2854SDXhA== | 2011-07-21 | Class II permissive change or modification of presently authorized equipment |
| 8MWOakwJmvs7gWjM3PcOLA== | 2011-03-03 | Class II permissive change or modification of presently authorized equipment |
| 2rcJYeelRHQZubee19KBcA== | 2011-03-03 | Class II permissive change or modification of presently authorized equipment |
| 0Tyf4B55TiRegjFuefblog== | 2011-02-22 | Class II permissive change or modification of presently authorized equipment |
| byl8g5WBinGyGjnASVNLjw== | 2010-12-17 | Original Equipment |
| NSuzZfrrV4MwI10772NOyw== | 2010-12-17 | Original Equipment |
| L9Gnr8u/mekwYKkNm3NqJw== | 2010-12-17 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 15B | CC | ||
| 2412-2462 MHz | 0.393 | 15C | CC, MO |
| 2412-2462 MHz | 0.663 | 15C | CC, MO |
| 2422-2452 MHz | 0.507 | 15C | CC, MO |
| 5180-5240 MHz | 0.023 | 15E | 38, CC, MO |
| 5180-5240 MHz | 0.023 | 15E | CC, MO |
| 5180-5240 MHz | 0.021 | 15E | CC, MO |
| 5190-5230 MHz | 0.022 | 15E | CC, MO |
| 5260-5320 MHz | 0.095 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.095 | 15E | CC, MO |
| 5260-5320 MHz | 0.068 | 15E | CC, MO |
| 5260-5320 MHz | 0.059 | 15E | CC, MO |
| 5270-5310 MHz | 0.095 | 15E | CC, MO |
| 5500-5700 MHz | 0.129 | 15E | 38, CC, MO |
| 5500-5700 MHz | 0.129 | 15E | CC, MO |
| 5500-5700 MHz | 0.066 | 15E | CC, MO |
| 5500-5700 MHz | 0.127 | 15E | CC, MO |
| 5510-5670 MHz | 0.129 | 15E | CC, MO |
| 5745-5825 MHz | 0.148 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.204 | 15C | CC, MO |
| 5745-5825 MHz | 0.399 | 15C | CC, MO |
| 5755-5795 MHz | 0.37 | 15C | CC, MO |
Grants
TCB Grant - Application XUsmNZlOSmYD2junlUlDlQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
National Technical Systems - Silicon Valley 41039 Boyce Road Fremont, CA 94538 |
Date of Grant: 11/08/2012 Application Dated: 11/08/2012 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II Permissive change to add antenna type as described in this filing. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application XUsmNZlOSmYD2junlUlDlQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 11/08/2012 Application Dated: 11/08/2012 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II Permissive change to add antenna type as described in this filing. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 02/19/2016 Application Dated: 02/19/2016 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.095 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.129 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.148 |
| Class II Permissive change. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. Compliance of this device in all final product configurations is the responsibility of the Grantee. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. Use at lesser separation distance requires SAR evaluation and additional certification. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application v4GddI2K3IOuoxnhpmEQdw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 02/19/2016 Application Dated: 02/19/2016 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.095 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.129 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.148 |
| Class II Permissive change. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. Compliance of this device in all final product configurations is the responsibility of the Grantee. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. Use at lesser separation distance requires SAR evaluation and additional certification. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application NSuzZfrrV4MwI10772NOyw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Curtis-Straus LLC One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 07/21/2011 Application Dated: 07/21/2011 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II permissive change to add a new portable host as documented in this filing. The highest measured Body SAR at the most conservative antenna-to-user distance of 0 cm is 1.46 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application MZfjDYgHtX2vgXbWTwQfbQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 07/21/2011 Application Dated: 07/21/2011 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II permissive change to add a new portable host as documented in this filing. The highest measured Body SAR at the most conservative antenna-to-user distance of 0 cm is 1.46 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application L9Gnr8u/mekwYKkNm3NqJw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Curtis-Straus LLC One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 07/21/2011 Application Dated: 07/21/2011 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II permissive change to add a new portable host as documented in this filing. The highest measured Body SAR at the most conservative antenna-to-user distance of 0 cm is 1.46 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application FzsQrJ3iPM6vu2854SDXhA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 07/21/2011 Application Dated: 07/21/2011 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II permissive change to add a new portable host as documented in this filing. The highest measured Body SAR at the most conservative antenna-to-user distance of 0 cm is 1.46 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
National Technical Systems - Silicon Valley 41039 Boyce Road Fremont, CA 94538 |
Date of Grant: 11/08/2012 Application Dated: 11/08/2012 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II Permissive change to add antenna type as described in this filing. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. Compliance of this device in all final product configurations is the responsibility of the Grantee. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application DX8b98+nfS0+A/CmgHEEGg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 11/08/2012 Application Dated: 11/08/2012 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11agn WLAN PCI-E Minicard |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II Permissive change to add antenna type as described in this filing. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. Compliance of this device in all final product configurations is the responsibility of the Grantee. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators, end-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. The highest measured SAR value across all filings under this FCC ID is 1.46 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application byl8g5WBinGyGjnASVNLjw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 12/17/2010 Application Dated: 12/17/2010 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 03/03/2011 Application Dated: 03/03/2011 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II permissive change to add the portable configuration with antenna-body separation distance at 1.8 cm to simulate the antenna position in the Netbook/Laptop/Notebook portable host platform as documented in this filing. The most conservative antenna-to-user distance is 1.8 cm. The highest measured SAR in the Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured body SAR in the Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. The highest measured body SAR values for this composite device in the Netbook/Laptop/Notebook host platform described in this filing. are 2.4 GHz: 0.32 W/kg; 5.2 GHz: 0.25 W/kg; 5.5 GHz 0.44 W/kg; 5.7 GHz: 0.42 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 8MWOakwJmvs7gWjM3PcOLA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 03/03/2011 Application Dated: 03/03/2011 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.393 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.663 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.507 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.204 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.399 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.37 |
| Class II permissive change to add the portable configuration with antenna-body separation distance at 1.8 cm to simulate the antenna position in the Netbook/Laptop/Notebook portable host platform as documented in this filing. The most conservative antenna-to-user distance is 1.8 cm. The highest measured SAR in the Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured body SAR in the Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. The highest measured body SAR values for this composite device in the Netbook/Laptop/Notebook host platform described in this filing. are 2.4 GHz: 0.32 W/kg; 5.2 GHz: 0.25 W/kg; 5.5 GHz 0.44 W/kg; 5.7 GHz: 0.42 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 03/03/2011 Application Dated: 03/03/2011 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II permissive change to add the portable configuration with antenna-body separation distance at 1.8 cm to simulate the antenna position in the Netbook/Laptop/Notebook portable host platform as documented in this filing. The most conservative antenna-to-user distance is 1.8 cm. The highest measured SAR in the Netbook/Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured body SAR in the Netbook/Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. The highest measured body SAR values for this composite device in the Netbook/Laptop/Notebook host platform described in this filing. are 2.4 GHz: 0.32 W/kg; 5.2 GHz: 0.25 W/kg; 5.5 GHz 0.44 W/kg; 5.7 GHz: 0.42 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 2rcJYeelRHQZubee19KBcA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 03/03/2011 Application Dated: 03/03/2011 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5180.0 - 5240.0 | 0.021 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.022 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.068 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.059 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.066 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.127 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.129 |
| Class II permissive change to add the portable configuration with antenna-body separation distance at 1.8 cm to simulate the antenna position in the Netbook/Laptop/Notebook portable host platform as documented in this filing. The most conservative antenna-to-user distance is 1.8 cm. The highest measured SAR in the Netbook/Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. Modular approval. Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. This module may be installed only by the OEM or an OEM integrator. Only antenna(s) documented in this filing may be used with this transmitter. When used in mobile platforms, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest measured body SAR in the Netbook/Laptop/Notebook host platform with the most conservative antenna-to-user distance of 1.8 cm is 0.44 W/kg. The highest measured body SAR values for this composite device in the Netbook/Laptop/Notebook host platform described in this filing. are 2.4 GHz: 0.32 W/kg; 5.2 GHz: 0.25 W/kg; 5.5 GHz 0.44 W/kg; 5.7 GHz: 0.42 W/kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
National Technical Systems - Silicon Valley 41039 Boyce Road Fremont, CA 94538 |
Date of Grant: 02/22/2011 Application Dated: 02/18/2011 |
| Broadcom Corporation |
| 190 Mathilda Place |
| Sunnyvale, CA 94086 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.129 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 0Tyf4B55TiRegjFuefblog==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 190 Mathilda Place Sunnyvale, CA 94086 United States |
Date of Grant: 02/22/2011 Application Dated: 02/18/2011 |
| Attention: Daniel Lawless , Director of Engineering, System Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1054 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n WLAN PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.023 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.095 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.129 |
| Power listed is the maximum combined conducted output power. Client device per section 15.202 definition. Device is 2x2 Spatial Multiplexing MIMO Module. Approval is limited to OEM installation only in mobile RF exposure configurations. Installation of this device in Portable RF exposure configurations requires a permissive change application or new filing. Compliance of this device in all final product configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This composite device is restricted to indoor only operations within the 5150-5250 MHz band. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
