FCC ID QDS-BRCM1082
802.11a/b/g/n/ac WLAN+Bluetooth PCI-E Mini Card
by Broadcom Corporation
Grantee Code: QDS Product Code: BRCM1082
Latest application date: 2016-02-10
Device Images
FCC ID Device Details
| FCC ID | QDS-BRCM1082 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | QDS |
| Product Code | BRCM1082 |
| Applicant Business | Broadcom Corporation 🇺🇸 |
| Related Domains |  broadcom.com |
| Equipment Class | 802.11a/b/g/n/ac WLAN+Bluetooth PCI-E Mini Card |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-02-10 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-16 |
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-16 |
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-16 |
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-02 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-02 |
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2014-10-02 |
| 5180-5240 MHz | Original Equipment | 2014-06-17 |
| 2402-2480 MHz | Original Equipment | 2014-06-17 |
| 2402-2480 MHz | Original Equipment | 2014-06-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2015-04-14 | PDF 4 MB |
| manual | Users Manual | 2015-04-14 | PDF 4 MB |
| User Manual OEM | Users Manual | 2014-11-11 | PDF 332.9 KB |
| User Manual Regulatory | Users Manual | 2014-11-11 | PDF 641.4 KB |
| Photos Internal | Internal Photos | 2014-11-11 | PDF 371.4 KB |
| Phtos Internal | Internal Photos | 2014-11-11 | PDF 371.4 KB |
| Photos External | External Photos | 2014-11-11 | PDF 224 KB |
| Label Location Host | ID Label/Location Info | 2014-10-16 | PDF 27.1 KB |
| Label Sample Host | ID Label/Location Info | 2014-10-16 | PDF 51.3 KB |
| Label | ID Label/Location Info | 2014-06-17 | PDF 69.8 KB |

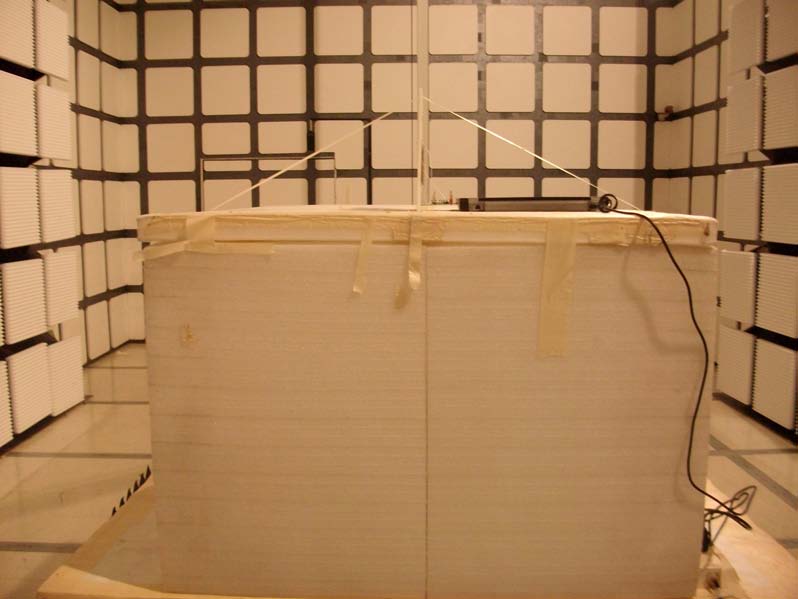

| Test Setup Photos_20160202_v1 - QDS-BRCM1082_TEST PHOTOS FR431243-04 | Test Setup Photos | 2016-02-10 | PDF 152.3 KB |
| Host Photos | Test Setup Photos | 2015-04-14 | PDF 832.2 KB |
| Host photos | Test Setup Photos | 2015-04-14 | PDF 832.2 KB |
| Host setup | Test Setup Photos | 2015-04-14 | PDF 832.2 KB |
| SAR Photo | Test Setup Photos | 2015-04-14 | PDF 362.7 KB |
| SAR Setup Photos | Test Setup Photos | 2015-04-14 | PDF 362.7 KB |
| Test Setup | Test Setup Photos | 2015-04-14 | PDF 292 KB |
| Antenna photos | Test Setup Photos | 2015-04-01 | PDF 393.7 KB |
| Test setup photos | Test Setup Photos | 2015-04-01 | PDF 280.5 KB |
| Test setup photos | Test Setup Photos | 2015-04-01 | PDF 218.9 KB |
| Photos Test Setup | Test Setup Photos | 2014-11-11 | PDF 415.2 KB |
| Photos Test Setup DFX | Test Setup Photos | 2014-11-11 | PDF 187 KB |
| Phtos Test Setup | Test Setup Photos | 2014-11-11 | PDF 327.4 KB |
| QDS-BRCM1082_Report_RF_USA_FR431243-04 | Test Report | 2016-02-10 | PDF 3.5 MB |
| Test Report_20160202_v1 - QDS-BRCM1082_Human Exposure | RF Exposure Info | 2016-02-10 | PDF 204.6 KB |
| Test Repoprt UNII 1 | Test Report | 2014-10-16 | PDF 3.9 MB |
| Test Repoprt UNII 2 | Test Report | 2014-10-16 | PDF 1.7 MB |
| Test Report | Test Report | 2014-10-16 | PDF 889.8 KB |
| BLE test report | Test Report | 2014-10-02 | PDF 1.2 MB |
| Co-location test | Test Report | 2014-10-02 | PDF 136.1 KB |
| Colocation test | Test Report | 2014-10-02 | PDF 136.1 KB |
| Test report | Test Report | 2014-10-02 | PDF 344.1 KB |
| Test report | Test Report | 2014-10-02 | PDF 2.9 MB |
| Test report | Test Report | 2014-10-02 | PDF 1.1 MB |
| WLAN test report | Test Report | 2014-10-02 | PDF 2 MB |
| Test Report | Test Report | 2014-06-17 | PDF 618.7 KB |
| Test Report | Test Report | 2014-06-17 | PDF 972.6 KB |
| Test Report BT | Test Report | 2014-06-17 | PDF 1.4 MB |
| Test Report Co-Located | Test Report | 2014-06-17 | PDF 145 KB |
| Test Report NII | Test Report | 2014-06-17 | PDF 3.6 MB |
| Test Report BT LE | Test Report | 2014-06-16 | PDF 946.1 KB |
| Test Report DTS Metadata only | Test Report | 2014-06-16 | PDF 3 MB |
| Test Report DTS 0616 | Test Report | 2014-06-16 | PDF 3 MB |
| Test Report NII Metadata only | Test Report | 2014-06-16 | PDF 3.7 MB |
| Test Report NII 0616 | Test Report | 2014-06-16 | PDF 3.6 MB |
| Ch 12 & 13 Attestation | Attestation Statements | 2014-10-16 | PDF 43.3 KB |
| WLAN Attestation | Attestation Statements | 2014-10-16 | PDF 27.1 KB |
| Attestation | Attestation Statements | 2014-06-17 | PDF 48.8 KB |
| Cover Letters_20160202_v1 - QDS-BRCM1082_C2PC Letter | Cover Letter(s) | 2016-02-10 | PDF 27.2 KB |
| Cover Letters_20160202_v1 - QDS-BRCM1082_Confidentiality request letter | Cover Letter(s) | 2016-02-10 | PDF 34.5 KB |
| Authorization | Cover Letter(s) | 2014-10-16 | PDF 24.2 KB |
| C2PC Cover Letter | Cover Letter(s) | 2014-10-16 | PDF 26.2 KB |
| Confidentiality | Cover Letter(s) | 2014-10-16 | PDF 31.3 KB |
| Agent authorization | Cover Letter(s) | 2014-10-02 | PDF 13.1 KB |
| C2PC letter | Cover Letter(s) | 2014-10-02 | PDF 63.4 KB |
| Request for confidentiality | Cover Letter(s) | 2014-10-02 | PDF 14.1 KB |
| Agent Letter | Cover Letter(s) | 2014-06-17 | PDF 22.5 KB |
| Confidential Letter | Cover Letter(s) | 2014-06-17 | PDF 34.5 KB |
| Modular Letter | Cover Letter(s) | 2014-06-17 | PDF 143.8 KB |
| SAR Report | RF Exposure Info | 2014-10-16 | PDF 3 MB |
| RF exposure Info | RF Exposure Info | 2014-10-02 | PDF 134.2 KB |
| MPE | RF Exposure Info | 2014-06-17 | PDF 113.1 KB |
| MPE | RF Exposure Info | 2014-06-17 | PDF 113.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 146.2 KB | |
| Schematic Metadata only | Schematics | PDF 165.6 KB | |
| Schematics Metadata only | Schematics | PDF 165.6 KB | |
| Antenna ACON Metadata only | Operational Description | PDF 1.8 MB | |
| Antenna INPAQ Metadata only | Operational Description | PDF 635.3 KB | |
| Antenna Spec Metadata only | Operational Description | PDF 1.3 MB | |
| Antenna specification Metadata only | Operational Description | PDF 818.8 KB | |
| Operation Description Metadata only | Operational Description | PDF 111.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 104.4 KB | |
| Operational Description_20160202_v1 - QDS-BRCM1082_Operational Description Metadata only | Operational Description | PDF 321.1 KB | |
| Operational Description_20160202_v1 - QDS-BRCM1082_Operational Description_Softw Metadata only | Operational Description | PDF 44.4 KB | |
| Operational description Metadata only | Operational Description | PDF 129.7 KB |
Application Information
| Application ID | zygu3vhWczNlmh8QIAFCug== |
|---|---|
| Final Action Date | 2016-02-10 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0007091952 |
| Model | BRCM1082 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11a/b/g/n/ac WLAN+Bluetooth PCI-E Mini Card |
| Responsible Party | Anne Liang, Manager, Compliance Engineering, aliang@broadcom.com , 4089225890 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II permissive change to show compliance with New U-NII sub bands rule per FCC ET docket No. 13-49. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zygu3vhWczNlmh8QIAFCug== | 2016-02-10 | Class II permissive change or modification of presently authorized equipment |
| WKqoRBy75JbjdrE2dTB66Q== | 2014-10-16 | Class II permissive change or modification of presently authorized equipment |
| S6taiyrL4TSi7og/WYAbwg== | 2014-10-16 | Class II permissive change or modification of presently authorized equipment |
| 6bAZm2FzfvgsYLZb+cD0hQ== | 2014-10-16 | Class II permissive change or modification of presently authorized equipment |
| PFfXEyJO9H9QGInnoQ7hyg== | 2014-10-02 | Class II permissive change or modification of presently authorized equipment |
| NTmM+Fre4gDZBcyBjhTqGw== | 2014-10-02 | Class II permissive change or modification of presently authorized equipment |
| 43UG9h2gGWE+AL3qpwwtHQ== | 2014-10-02 | Class II permissive change or modification of presently authorized equipment |
| 0m+c2s2CW/ISFtbxWeUYSQ== | 2014-10-02 | Class II permissive change or modification of presently authorized equipment |
| yfboizuRus66mBeZn0Elrw== | 2014-06-17 | Original Equipment |
| yMBIN7ITNXa/xuzjQtx2xA== | 2014-06-17 | Original Equipment |
| 9xWv4Q7+LnYWZ1PCvtMTSg== | 2014-06-17 | Original Equipment |
| xkOSyibdFMPqpPO3Vv/5ug== | 2014-06-16 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 15B | CC | ||
| 2402-2480 MHz | 0.0008000 | 15C | CC |
| 2402-2480 MHz | 0.007 | 15C | CC |
| 2402-2480 MHz | 0.0007 | 15C | CC |
| 2412-2472 MHz | 0.507 | 15C | CC, MO |
| 2412-2462 MHz | 0.1 | 15C | CC, MO |
| 5180-5240 MHz | 0.0282 | 15E | 36, CC, MO |
| 5180-5240 MHz | 0.0282 | 15E | CC, MO |
| 5190-5230 MHz | 0.0489 | 15E | 36, CC, MO |
| 5190-5230 MHz | 0.0489 | 15E | CC, MO |
| 5190-5230 MHz | 0.0489 | 15E | 38, CC, MO |
| 5210 MHz | 0.0467 | 15E | 36, CC, MO |
| 5210 MHz | 0.0467 | 15E | CC, MO |
| 5210 MHz | 0.0467 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.091 | 15E | 36, CC, MO |
| 5260-5320 MHz | 0.091 | 15E | CC, MO |
| 5260-5320 MHz | 0.091 | 15E | 38, CC, MO |
| 5270-5310 MHz | 0.1803 | 15E | 36, CC, MO |
| 5270-5310 MHz | 0.1803 | 15E | CC, MO |
| 5270-5310 MHz | 0.1803 | 15E | 38, CC, MO |
| 5290 MHz | 0.0673 | 15E | 36, CC, MO |
| 5290 MHz | 0.0673 | 15E | CC, MO |
| 5290 MHz | 0.0673 | 15E | 38, CC, MO |
| 5500-5720 MHz | 0.09 | 15E | 36, CC, MO |
| 5500-5700 MHz | 0.09 | 15E | CC, MO |
| 5500-5720 MHz | 0.09 | 15E | CC, MO |
| 5500-5720 MHz | 0.09 | 15E | 38, CC, MO |
| 5510-5710 MHz | 0.2099 | 15E | 36, CC, MO |
| 5510-5710 MHz | 0.2099 | 15E | CC, MO |
| 5510-5710 MHz | 0.2099 | 15E | 38, CC, MO |
| 5530-5690 MHz | 0.2339 | 15E | 36, CC, MO |
| 5530-5690 MHz | 0.2339 | 15E | CC, MO |
| 5530-5690 MHz | 0.2339 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.3499 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.3917 | 15C | 36, CC, MO |
| 5745-5825 MHz | 0.3917 | 15C | CC, MO |
| 5755-5795 MHz | 0.1991 | 15E | 38, CC, MO |
| 5755-5795 MHz | 0.3041 | 15C | 36, CC, MO |
| 5755-5795 MHz | 0.3041 | 15C | CC, MO |
| 5775 MHz | 0.0528 | 15E | 38, CC, MO |
| 5775 MHz | 0.2208 | 15C | 36, CC, MO |
| 5775 MHz | 0.2208 | 15C | CC, MO |
Grants
TCB Grant - Application zygu3vhWczNlmh8QIAFCug==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 02/10/2016 Application Dated: 02/06/2016 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n/ac WLAN+Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| 38 CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| 38 CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| 38 CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| 38 CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| 38 CC MO | 15E | 5530.0 - 5690.0 | 0.2339 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.3499 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.1991 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.0528 |
| Class II permissive change to show compliance with New U-NII sub bands rule per FCC ET docket No. 13-49. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application zygu3vhWczNlmh8QIAFCug==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 02/10/2016 Application Dated: 02/06/2016 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11a/b/g/n/ac WLAN+Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| 38 CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| 38 CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| 38 CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| 38 CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| 38 CC MO | 15E | 5530.0 - 5690.0 | 0.2339 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.3499 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.1991 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.0528 |
| Class II permissive change to show compliance with New U-NII sub bands rule per FCC ET docket No. 13-49. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/17/2014 Application Dated: 06/16/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application yMBIN7ITNXa/xuzjQtx2xA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 06/17/2014 Application Dated: 06/16/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/17/2014 Application Dated: 06/17/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application yfboizuRus66mBeZn0Elrw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 06/17/2014 Application Dated: 06/17/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/16/2014 Application Dated: 06/16/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application xkOSyibdFMPqpPO3Vv/5ug==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 06/16/2014 Application Dated: 06/16/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.09 | ||
| CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR in this C2PC filing is 1.20 W/Kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application WKqoRBy75JbjdrE2dTB66Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.09 | ||
| CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR in this C2PC filing is 1.20 W/Kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR in this C2PC filing is 1.21 W/Kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application S6taiyrL4TSi7og/WYAbwg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR in this C2PC filing is 1.21 W/Kg. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| 36 CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| 36 CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| 36 CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Class II Permissive change application to alternate a dipole antenna with power reduction as documented. Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 36: | Certain antennas used with this equipment require a minimum cable length, or have output power limitations as documented in the application. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application PFfXEyJO9H9QGInnoQ7hyg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.007 | ||
| CC MO | 15C | 2412.0 - 2472.0 | 0.507 | ||
| CC MO | 15C | 2412.0 - 2462.0 | 0.1 | ||
| 36 CC MO | 15C | 5745.0 - 5825.0 | 0.3917 | ||
| 36 CC MO | 15C | 5755.0 - 5795.0 | 0.3041 | ||
| 36 CC MO | 15C | 5775.0 - 5775.0 | 0.2208 |
| Class II Permissive change application to alternate a dipole antenna with power reduction as documented. Power output listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. 802.11 operations in the 2.4 GHz band support only 20 and 40 MHz bandwidths. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 36: | Certain antennas used with this equipment require a minimum cable length, or have output power limitations as documented in the application. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| Class II Permissive change application to alternate a dipole antenna as documented in this filing. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application NTmM+Fre4gDZBcyBjhTqGw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| Class II Permissive change application to alternate a dipole antenna as documented in this filing. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/17/2014 Application Dated: 06/17/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Output power is conducted. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 9xWv4Q7+LnYWZ1PCvtMTSg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 06/17/2014 Application Dated: 06/17/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Output power is conducted. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Output power is conducted. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 6bAZm2FzfvgsYLZb+cD0hQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/16/2014 Application Dated: 10/16/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Class II Permissive Change to add portable condition for ASUS Notebook model numbers NX500J & GX500J. Output power is conducted. Approval for mobile installation is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 36 CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| 36 CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| 36 CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| 36 CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| 36 CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| 36 CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| 36 CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| 36 CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| 36 CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Class II Permissive change application to alternate a dipole antenna with power reduction as documented. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 36: | Certain antennas used with this equipment require a minimum cable length, or have output power limitations as documented in the application. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 43UG9h2gGWE+AL3qpwwtHQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 36 CC MO | 15E | 5180.0 - 5240.0 | 0.0282 | ||
| 36 CC MO | 15E | 5190.0 - 5230.0 | 0.0489 | ||
| 36 CC MO | 15E | 5210.0 - 5210.0 | 0.0467 | ||
| 36 CC MO | 15E | 5260.0 - 5320.0 | 0.091 | ||
| 36 CC MO | 15E | 5270.0 - 5310.0 | 0.1803 | ||
| 36 CC MO | 15E | 5290.0 - 5290.0 | 0.0673 | ||
| 36 CC MO | 15E | 5500.0 - 5720.0 | 0.09 | ||
| 36 CC MO | 15E | 5510.0 - 5710.0 | 0.2099 | ||
| 36 CC MO | 15E | 5530.0 - 5690.0 | 0.2339 |
| Class II Permissive change application to alternate a dipole antenna with power reduction as documented. Power output listed is maximum combined conducted. Operations in the 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20 MHz, 40 MHz and 80 MHz bandwidths in the 5 GHz band. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 36: | Certain antennas used with this equipment require a minimum cable length, or have output power limitations as documented in the application. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Broadcom Corporation |
| 270 Innovation Drive |
| San Jose, CA 95134 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Class II Permissive change application to alternate a dipole antenna as documented. Output power is conducted. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 0m+c2s2CW/ISFtbxWeUYSQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Broadcom Corporation 270 Innovation Drive San Jose, CA 95134 United States |
Date of Grant: 10/02/2014 Application Dated: 10/02/2014 |
| Attention: Anne Liang , Manager, Compliance Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QDS-BRCM1082 |
| Name of Grantee: | Broadcom Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 802.11abgn/11ac WLAN + Bluetooth PCI-E Mini Card |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0008 |
| Class II Permissive change application to alternate a dipole antenna as documented. Output power is conducted. Approval is valid when antennas used for this transmitter are installed to provide a minimum antenna separation distance of 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
