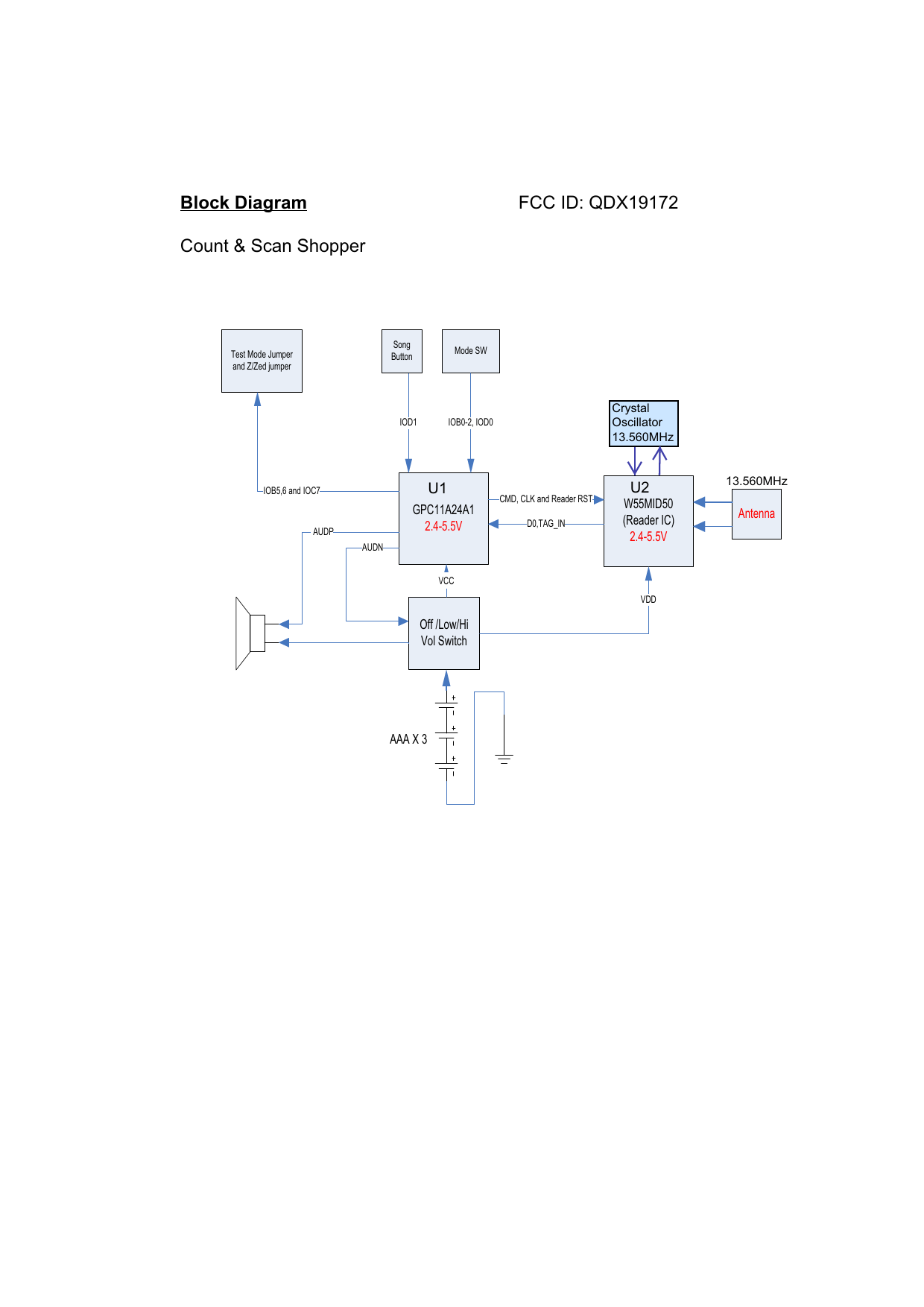

19172 Count & Scan Shopper Block Diagram - FCC ID QDX19172

FCC ID QDX19172

Block Diagram

Count & Scan Shopper

by LeapFrog Enterprises, Inc.

Document preview loads when visible.

Document Details

FCC IDQDX19172
Document ID1340059
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitlePls confirm FCC_Block diagram
ApplicantLeapFrog Enterprises, Inc.
Equipment ClassCount & Scan Shopper
Product Code19172
Application IDf5QkRw0PdqDufhUS9NZftg==
Application PurposeOriginal Equipment
Application Date2010-09-09
Frequency Range13.56 MHz
FRN0007110372
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-09-09
Available2010-09-09
Created2010-08-31
Modified2010-09-07
Pages3
File TypeAdobe Acrobat PDF
File Size63921
File SHA-2564cc1468bea4af623ce7f3220c8f2114866dec093a362edcfeb6305b84ecc77ec
PDF Metadata Authornyi
PDF Metadata CreatorMicrosoft Office Word 2007
PDF Metadata ProducerAcrobat Distiller 8.0.0 (Windows)
FCC.gov SourcesFCC.gov 1340059
