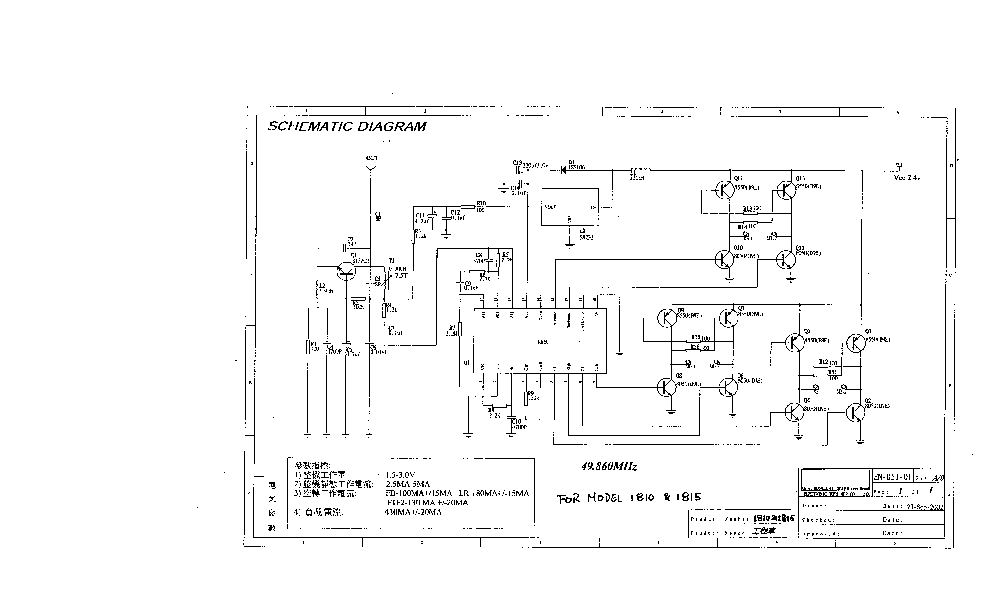

1815R49 RC Car Schematics - FCC ID QFU-1815-R49

FCC ID QFU-1815-R49

Circuit Diagram

RC Car

by Kid-Riffic Toys Ltd.

Document preview loads when visible.

Document Details

FCC IDQFU-1815-R49
Document ID282631
Document TypeSchematics
DescriptionCircuit Diagram
ApplicantKid-Riffic Toys Ltd.
Equipment ClassRC Car
Product Code1815R49
Application IDlo/fMxQhoE0u+ypd4ynxew==
Application PurposeOriginal Equipment
Application Date2002-11-11
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-11-11
Available2002-11-11
Created2002-10-08
Modified2002-10-08
Pages1
File TypeAdobe Acrobat PDF
File Size81602
File SHA-256d52ce2d1a746eb35dba32b4e1e7b15ee4a33d827e47aa4a38055d5eff787e524
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 282631
