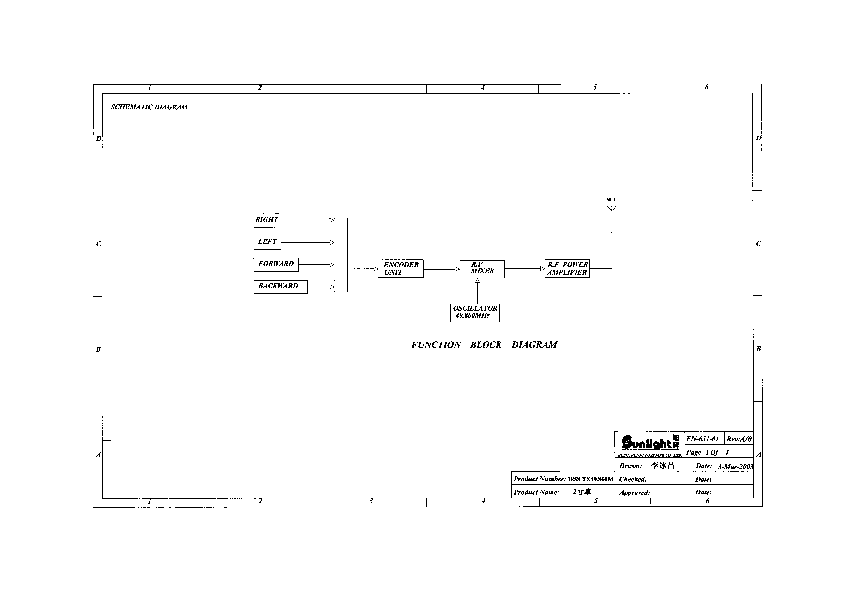

1847T49 RC Car Block Diagram - FCC ID QFU-1847-T49

FCC ID QFU-1847-T49

Block Diagram

RC Car

by Kid-Riffic Toys Ltd.

Document preview loads when visible.

Document Details

FCC IDQFU-1847-T49
Document ID317399
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantKid-Riffic Toys Ltd.
Equipment ClassRC Car
Product Code1847T49
Application IDir23GxnM6VCgLPD0MR+lZA==
Application PurposeOriginal Equipment
Application Date2003-04-11
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-04-11
Available2003-04-11
Created2003-03-19
Modified2003-03-19
Pages1
File TypeAdobe Acrobat PDF
File Size15577
File SHA-256c08adcb3746bb85c7a0cfed6c7e64492cc6d934df19ec643b878a7b4045e8eec
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 317399
