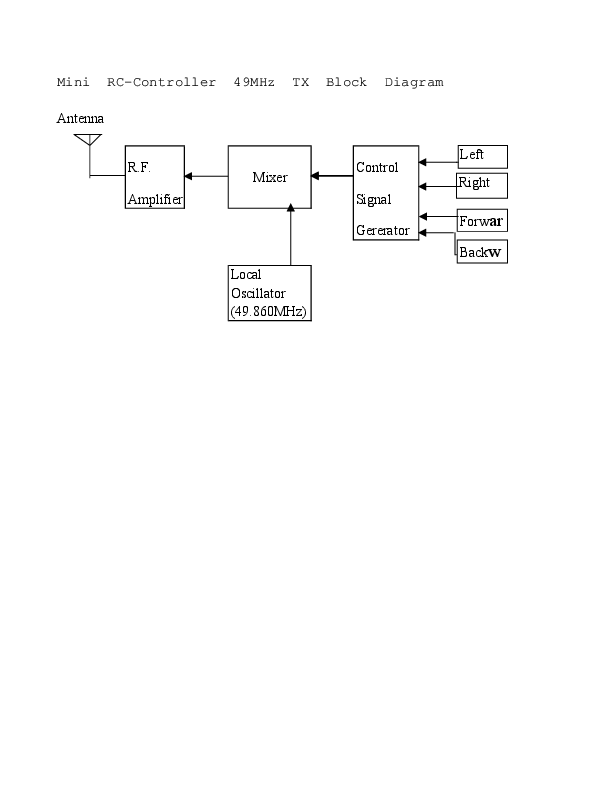

200 49 MHz Remote Control - TX Block Diagram - FCC ID QG3200

FCC ID QG3200

block diagram

49 MHz Remote Control - TX

by Planet Toys Worldwide Limited

Document preview loads when visible.

Document Details

FCC IDQG3200
Document ID257285
Document TypeBlock Diagram
Descriptionblock diagram
Document TitleBook2.xls
ApplicantPlanet Toys Worldwide Limited
Equipment Class49 MHz Remote Control - TX
Product Code200
Application IDq5pQklutdnzBAZTXdrUujA==
Application PurposeOriginal Equipment
Application Date2002-07-17
Frequency Range49.82-49.9 MHz
FRN0003786449
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByKeith Chung Product Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-07-18
Available2002-07-17
Created2002-07-09
Modified2002-07-09
Pages1
File TypeAdobe Acrobat PDF
File Size28077
File SHA-256a0b0cab64bb4ea04d3277202d8cd789e7991c9eceef9b2d3fc923718fced75a5
PDF Metadata AuthorJerry
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) Jerry
FCC.gov SourcesFCC.gov 257285
