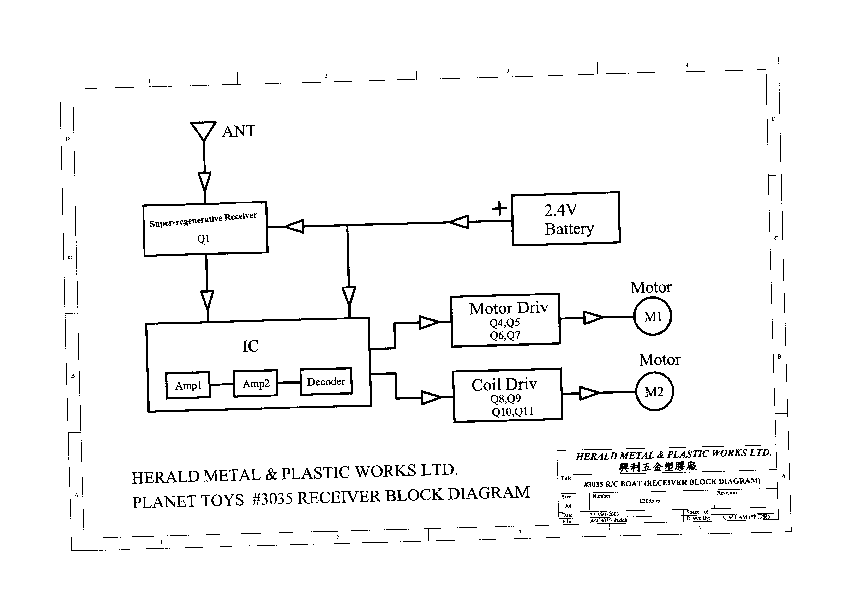

3035R49 RC Boat Block Diagram - FCC ID QG33035R49

FCC ID QG33035R49

Block Diagram

RC Boat

by Planet Toys Worldwide Limited

Document preview loads when visible.

Document Details

FCC IDQG33035R49
Document ID323794
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantPlanet Toys Worldwide Limited
Equipment ClassRC Boat
Product Code3035R49
Application IDhbtCKPN+7zEgZiYeZelj9A==
Application PurposeOriginal Equipment
Application Date2003-05-07
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2003-05-07
Available2003-05-07
Created2003-04-08
Modified2003-04-08
Pages1
File TypeAdobe Acrobat PDF
File Size24740
File SHA-2568208e2f73d9c170d3d28003c050f74cc3b1817561c53827f35c9f830b697deae
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 323794
