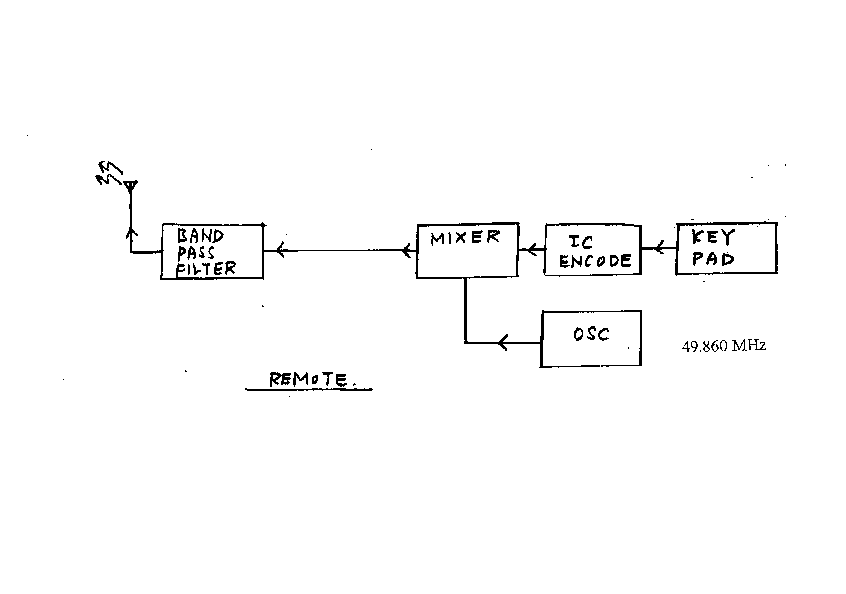

3200T49 RC Motorcycle Block Diagram - FCC ID QG33200T49

FCC ID QG33200T49

Block Diagram

RC Motorcycle

by Planet Toys Worldwide Limited

Document preview loads when visible.

Document Details

FCC IDQG33200T49
Document ID340853
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantPlanet Toys Worldwide Limited
Equipment ClassRC Motorcycle
Product Code3200T49
Application IDtfk+UtKlEDavSI+A8LkIoQ==
Application PurposeOriginal Equipment
Application Date2003-07-17
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2003-07-18
Available2003-07-17
Created2003-07-10
Modified2003-07-10
Pages1
File TypeAdobe Acrobat PDF
File Size8861
File SHA-2563e9f30a0ad1371c16a00a71fefd882a1e00bbc5a0b567792b1d4da68cc080eb0
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 340853
