3279T49 49.82-49.90 mhz wireless r/c-tx... - FCC ID QG33279T49
FCC ID QG33279T49
schematics

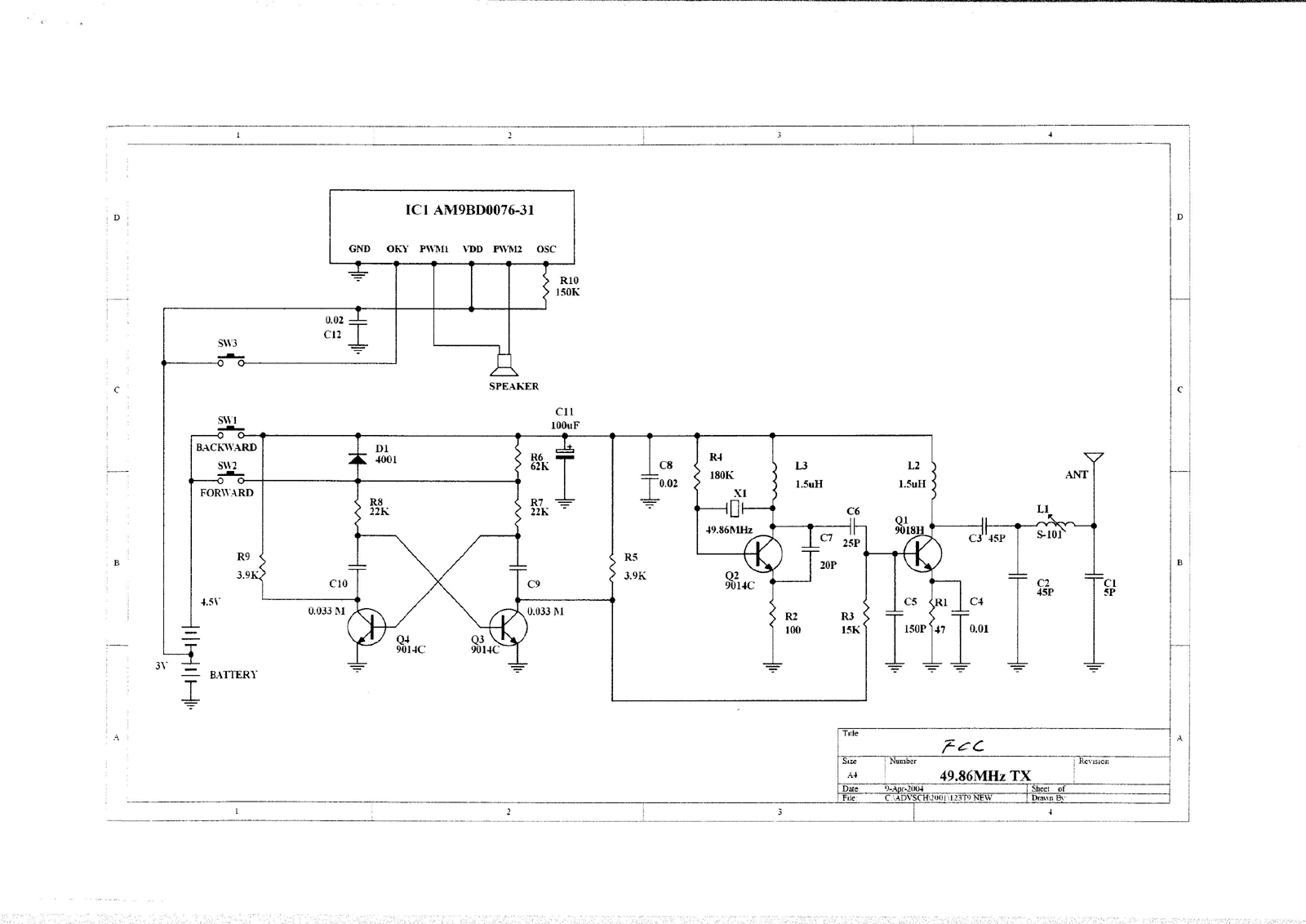

49.82-49.90 mhz wireless r/c-tx
Document preview loads when visible.
Document Details
| FCC ID | QG33279T49 |
|---|---|
| Document ID | 421848 |
| Document Type | Schematics |
| Description | schematics |
| Applicant | Planet Toys Worldwide Limited |
| Equipment Class | 49.82-49.90 mhz wireless r/c-tx |
| Product Code | 3279T49 |
| Application ID | 0kDKoKYPBenQD7fxqQgi2g== |
| Application Purpose | Original Equipment |
| Application Date | 2004-05-11 |
| Frequency Range | 49.82-49.9 MHz |
| FRN | 0003786449 |
| Test Firm | Thru Lab & Engineering |
| Certified By | t.k. wong merchandise manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2004-05-11 |
| Available | 2004-05-11 |
| Created | 2004-04-28 |
| Modified | 2004-04-28 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 177023 |
| File SHA-256 | 1a6a850ef7b064cfb9384fcce189c71bd2905c0316a0aa5b2cceff144d357bf5 |
| PDF Metadata Producer | Adobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows |
| FCC.gov Sources | FCC.gov 421848 |
