3335T49 49.82-49.90 MHz Wireless R/CTX... - FCC ID QG33335T49

FCC ID QG33335T49

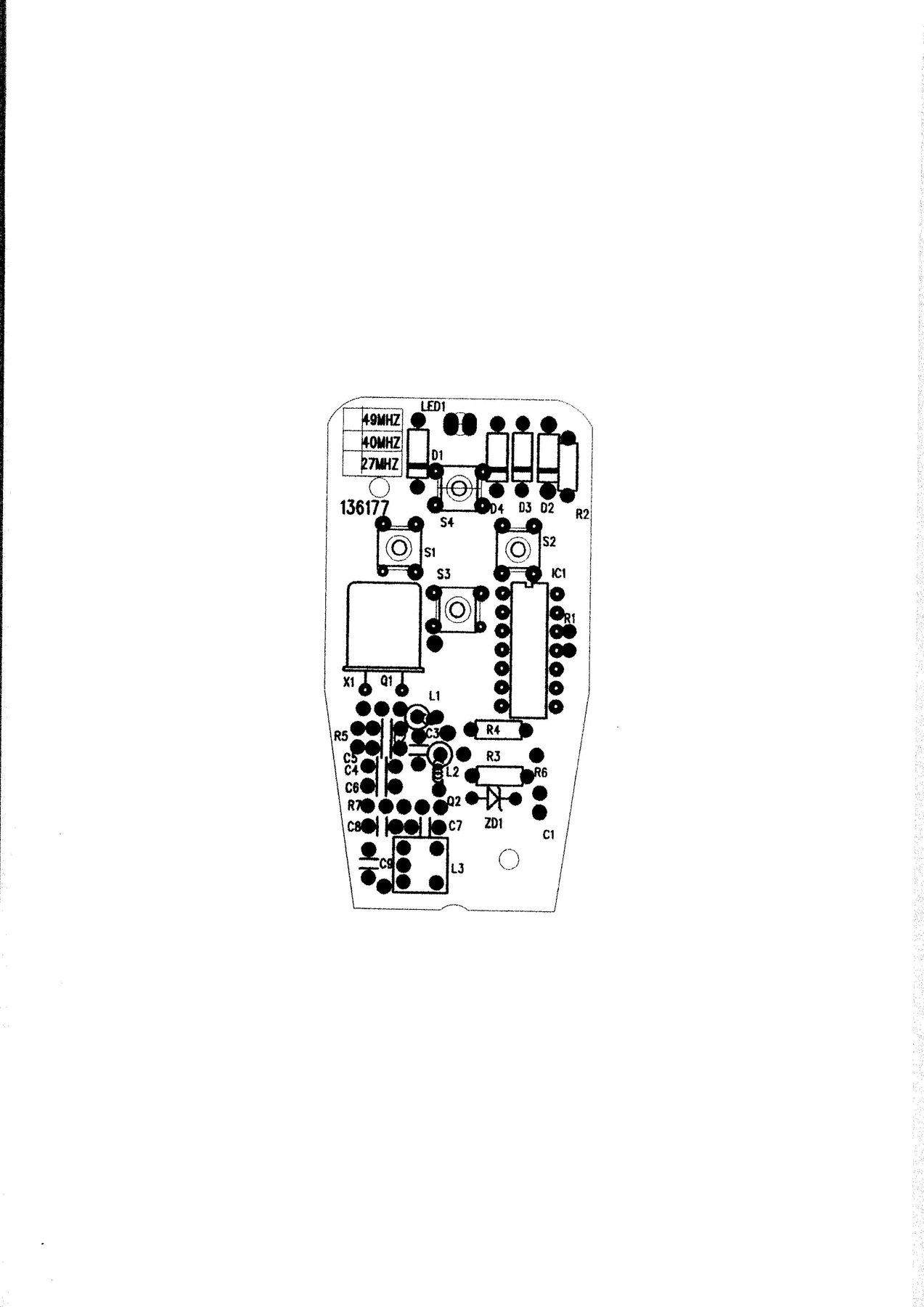

Layout Drawing

49.82-49.90 MHz Wireless R/CTX

by Planet Toys Worldwide Limited

Document preview loads when visible.

Document Details

FCC IDQG33335T49
Document ID413633
Document TypeInternal Photos
DescriptionLayout Drawing
ApplicantPlanet Toys Worldwide Limited
Equipment Class49.82-49.90 MHz Wireless R/CTX
Product Code3335T49
Application IDCIri6mzbdGpBVDw1SsUwhQ==
Application PurposeOriginal Equipment
Application Date2004-04-13
Frequency Range49.82-49.9 MHz
FRN0003786449
Test FirmThru Lab & Engineering
Certified ByT.K. Wong Merchandise Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-04-13
Available2004-04-13
Created2004-04-01
Modified2004-04-02
Pages4
File TypeAdobe Acrobat PDF
File Size404175
File SHA-256889c2f02878cf6a21342f4c078d35c331ed28d1ac133560509d06259d2ce5f99
PDF Metadata ProducerAdobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows
FCC.gov SourcesFCC.gov 413633
