FCC ID QIPALAS3K-US
Data Module
by THALES DIS AlS Deutschland GmbH
Grantee Code: QIP Product Code: ALAS3KUS
Latest application date: 2017-05-08
Device Images
FCC ID Device Details
| FCC ID | QIPALAS3K-US |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | QIP |
| Product Code | ALAS3KUS |
| Applicant Business | THALES DIS AlS Deutschland GmbH 🇩🇪 |
| Related Domains |  thalesgroup.com |
| Equipment Class | Data Module |
| Test Firm | 7layers AG |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 699.7-715.3 MHz | Change in identification of presently authorized equipment. Original FCC ID: QIPALAS6A-US Grant Date: 10/05/2016 | 2017-05-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

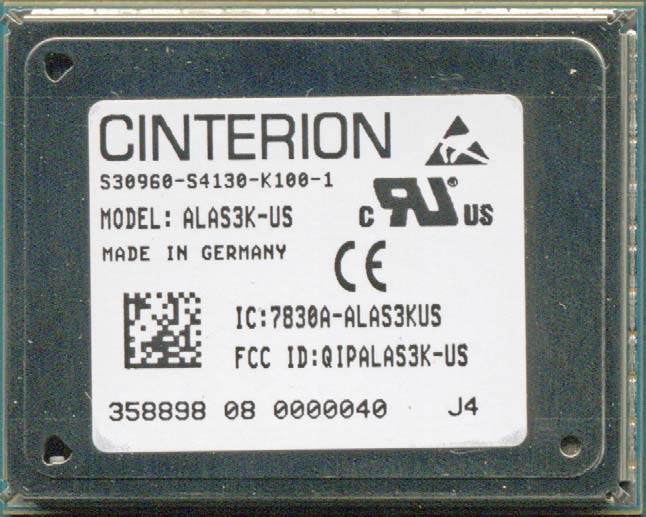

| ext photos | External Photos | 2017-05-08 | PDF 120.9 KB |
| label and location | ID Label/Location Info | 2017-05-08 | PDF 40.1 KB |
| Change in ID request | Cover Letter(s) | 2017-05-08 | PDF 49.4 KB |
| PoA | Cover Letter(s) | 2017-05-08 | PDF 38.1 KB |
Application Information
| Application ID | zVp0ib/d2RY9RXnyUKSlZQ== |
|---|---|
| Final Action Date | 2017-05-08 |
| Application Purpose | Change in identification of presently authorized equipment. Original FCC ID: QIPALAS6A-US Grant Date: 10/05/2016 |
| Applicant FRN | 0019578749 |
| Model | ALAS3K-US |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | Data Module |
| Responsible Party | Axel Heike, Manager Certifications, axel.heike@thalesgroup.com , 004930311028146 |
| Agent | Andreas Andreas Andreas, 7 Layers AG, Andreas.Tuebel@7Layers.com  , +492102749336 |
| Test Firm | Robert Machulec, 7layers AG, robert.machulec@7layers.de  , 49-2102-749-313 |
| TCB Email | vandenbosch.andre@phoenix-testlab.de  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zVp0ib/d2RY9RXnyUKSlZQ== | 2017-05-08 | Change in identification of presently authorized equipment. Original FCC ID: QIPALAS6A-US Grant Date: 10/05/2016 |
| Vxfaw05G91Ov1qhWYloVjA== | 2017-05-08 | Change in identification of presently authorized equipment. Original FCC ID: QIPALAS6A-US Grant Date: 10/05/2016 |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules |
|---|---|---|---|---|
| 699.7-715.3 MHz | 0.2 | 0.01ppm | 9M06G7D | 27 |
| 699.7-715.3 MHz | 0.178 | 0.01ppm | 9M06W7D | 27 |
| 824.2-848.8 MHz | 1.169 | 0.06ppm | 241KG7W | 22H |
| 824.7-848.3 MHz | 0.196 | 0.06ppm | 9M02G7D | 22H |
| 824.7-848.3 MHz | 0.16 | 0.06ppm | 9M02W7D | 22H |
| 826.4-846.6 MHz | 0.259 | 0.06ppm | 4M13F9W | 22H |
| 1710.7-1754.3 MHz | 0.204 | 0.03ppm | 18M2G7D | 27 |
| 1710.7-1754.3 MHz | 0.166 | 0.03ppm | 18M2W7D | 27 |
| 1712.4-1752.6 MHz | 0.257 | 0.03ppm | 4M17F9W | 27 |
| 1850.2-1909.8 MHz | 1.143 | 0.1ppm | 245KGXW | 24E |
| 1850.2-1909.8 MHz | 1.021 | 0.1ppm | 231KG7W | 24E |
| 1850.7-1909.3 MHz | 0.161 | 0.1ppm | 18M2W7D | 24E |
| 1850.7-1909.3 MHz | 0.195 | 0.1ppm | 18M2G7D | 24E |
| 1852.4-1907.6 MHz | 0.262 | 0.1ppm | 4M19F9W | 24E |
Grants
TCB Grant - Application zVp0ib/d2RY9RXnyUKSlZQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 05/08/2017 Application Dated: 05/08/2017 |
| THALES DIS AlS Deutschland GmbH |
| Siemensdamm 50 |
| Berlin, 13629 Germany |
| Attention: Axel Heike , Manager Certifications |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QIPALAS3K-US |
| Name of Grantee: | THALES DIS AlS Deutschland GmbH |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Data Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
EAS Grant - Application zVp0ib/d2RY9RXnyUKSlZQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
THALES DIS AlS Deutschland GmbH Siemensdamm 50 Berlin, 13629 Germany |
Date of Grant: 05/08/2017 Application Dated: 05/08/2017 |
| Attention: Axel Heike , Manager Certifications |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QIPALAS3K-US |
| Name of Grantee: | THALES DIS AlS Deutschland GmbH |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Data Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 05/08/2017 Application Dated: 05/08/2017 |
| THALES DIS AlS Deutschland GmbH |
| Siemensdamm 50 |
| Berlin, 13629 Germany |
| Attention: Axel Heike , Manager Certifications |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QIPALAS3K-US |
| Name of Grantee: | THALES DIS AlS Deutschland GmbH |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Data Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 2.366 | 0.06 PM | 243KGXW | |
| 22H | 824.2 - 848.8 | 1.169 | 0.06 PM | 241KG7W | |
| 22H | 826.4 - 846.6 | 0.259 | 0.06 PM | 4M13F9W | |
| 22H | 824.7 - 848.3 | 0.196 | 0.06 PM | 9M02G7D | |
| 22H | 824.7 - 848.3 | 0.16 | 0.06 PM | 9M02W7D | |
| 24E | 1850.2 - 1909.8 | 1.143 | 0.1 PM | 245KGXW | |
| 24E | 1850.2 - 1909.8 | 1.021 | 0.1 PM | 231KG7W | |
| 24E | 1852.4 - 1907.6 | 0.262 | 0.1 PM | 4M19F9W | |
| 24E | 1850.7 - 1909.3 | 0.195 | 0.1 PM | 18M2G7D | |
| 24E | 1850.7 - 1909.3 | 0.161 | 0.1 PM | 18M2W7D | |
| 27 | 1712.4 - 1752.6 | 0.257 | 0.03 PM | 4M17F9W | |
| 27 | 1710.7 - 1754.3 | 0.204 | 0.03 PM | 18M2G7D | |
| 27 | 1710.7 - 1754.3 | 0.166 | 0.03 PM | 18M2W7D | |
| 27 | 699.7 - 715.3 | 0.2 | 0.01 PM | 9M06G7D | |
| 27 | 699.7 - 715.3 | 0.178 | 0.01 PM | 9M06W7D |
| Output Power listed is conducted. This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. This module is approved for use in products operating as fixed or mobile transmitting devices. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter policy. A separate approval is required for portable operating configurations, as defined in 2.1093 of the rules. The final product operating with this transmitter must include operating instructions and applicable warnings for end users and installers to satisfy RF exposure compliance requirements. To meet RF exposure and radiated output power limits of the applicable rule section, the maximum antenna gain allowed including cable loss is: 4dBi (850 MHz), 9.5 dBi (1900 MHz), 12.5 dBi (1700 MHz) and 10.2 dBi (700 MHz). This Grant is valid only when the device is sold to integrators and the integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. This module supports 1.4 /3 /5 /10 /15 /20 MHz bandwidths for LTE Bands 2 and 4 and 1.4 /3 /5 /10 MHz bandwidths for LTE Bands 5 and 12. The Grantee is responsible for providing the documentation required for modular use. |
EAS Grant - Application Vxfaw05G91Ov1qhWYloVjA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
THALES DIS AlS Deutschland GmbH Siemensdamm 50 Berlin, 13629 Germany |
Date of Grant: 05/08/2017 Application Dated: 05/08/2017 |
| Attention: Axel Heike , Manager Certifications |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | QIPALAS3K-US |
| Name of Grantee: | THALES DIS AlS Deutschland GmbH |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Data Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 2.366 | 0.06 PM | 243KGXW | |
| 22H | 824.2 - 848.8 | 1.169 | 0.06 PM | 241KG7W | |
| 22H | 826.4 - 846.6 | 0.259 | 0.06 PM | 4M13F9W | |
| 22H | 824.7 - 848.3 | 0.196 | 0.06 PM | 9M02G7D | |
| 22H | 824.7 - 848.3 | 0.16 | 0.06 PM | 9M02W7D | |
| 24E | 1850.2 - 1909.8 | 1.143 | 0.1 PM | 245KGXW | |
| 24E | 1850.2 - 1909.8 | 1.021 | 0.1 PM | 231KG7W | |
| 24E | 1852.4 - 1907.6 | 0.262 | 0.1 PM | 4M19F9W | |
| 24E | 1850.7 - 1909.3 | 0.195 | 0.1 PM | 18M2G7D | |
| 24E | 1850.7 - 1909.3 | 0.161 | 0.1 PM | 18M2W7D | |
| 27 | 1712.4 - 1752.6 | 0.257 | 0.03 PM | 4M17F9W | |
| 27 | 1710.7 - 1754.3 | 0.204 | 0.03 PM | 18M2G7D | |
| 27 | 1710.7 - 1754.3 | 0.166 | 0.03 PM | 18M2W7D | |
| 27 | 699.7 - 715.3 | 0.2 | 0.01 PM | 9M06G7D | |
| 27 | 699.7 - 715.3 | 0.178 | 0.01 PM | 9M06W7D |
| Output Power listed is conducted. This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. This module is approved for use in products operating as fixed or mobile transmitting devices. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter policy. A separate approval is required for portable operating configurations, as defined in 2.1093 of the rules. The final product operating with this transmitter must include operating instructions and applicable warnings for end users and installers to satisfy RF exposure compliance requirements. To meet RF exposure and radiated output power limits of the applicable rule section, the maximum antenna gain allowed including cable loss is: 4dBi (850 MHz), 9.5 dBi (1900 MHz), 12.5 dBi (1700 MHz) and 10.2 dBi (700 MHz). This Grant is valid only when the device is sold to integrators and the integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. This module supports 1.4 /3 /5 /10 /15 /20 MHz bandwidths for LTE Bands 2 and 4 and 1.4 /3 /5 /10 MHz bandwidths for LTE Bands 5 and 12. The Grantee is responsible for providing the documentation required for modular use. |
| Mail To: |
