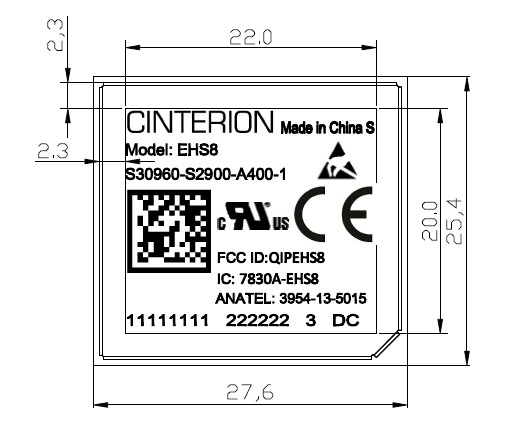

EHS8 Label Diagram - FCC ID QIPEHS8

FCC ID QIPEHS8

EHS8_A400

EHS8

by THALES DIS AlS Deutschland GmbH

IMEI information

Validated IMEI values extracted from this public FCC exhibit.

IMEITAC lookupSource
00440108094184800440108Decoded image barcode

Barcode information

Validated product identifiers extracted from the generated document image; label documents may also include identifiers from available document text.

Data Matrix ]d1

Barcode typeData Matrix ]d1
Decoded value004401080941848

Document preview loads when visible.

Document Details

FCC IDQIPEHS8
Document ID4197142
Document TypeID Label/Location Info
DescriptionEHS8_A400
ApplicantTHALES DIS AlS Deutschland GmbH
Equipment ClassEHS8
Product CodeEHS8
Application IDTSvh7bdQPF/TmQJwNF5VEg==
Application PurposeClass II Permissive Change
Application Date2019-03-20
Frequency Range1850.2-1909.8 MHz
FRN0019578749
Test FirmIndustrial Internet Innovation Center (Shanghai)
Certified ByZhou Yuan Project Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Short-Term Confidentiality Date09/16/2019
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceNo
Composite PartNo
Submitted2019-03-11
Available2019-03-20
Created2019-02-01
Modified2019-02-01
Pages1
File TypeAdobe Acrobat PDF
File Size49525
File SHA-2562edf1b593288d3a8ca68a149fcda41c48999bcb8c3b42f34bde3e63a56541002
PDF Metadata ProducerAdobe Acrobat 10.1 Adobe Acrobat 10.1 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 4197142
