PRX71 PS2 Controller Test Setup Photos - FCC ID QIWPRX7-1

FCC ID QIWPRX7-1

Radiated Emission

PS2 Controller

by Saitek Electronics (SHENZHEN) Ltd

Document preview loads when visible.

Document Details

FCC IDQIWPRX7-1
Document ID315793
Document TypeTest Setup Photos

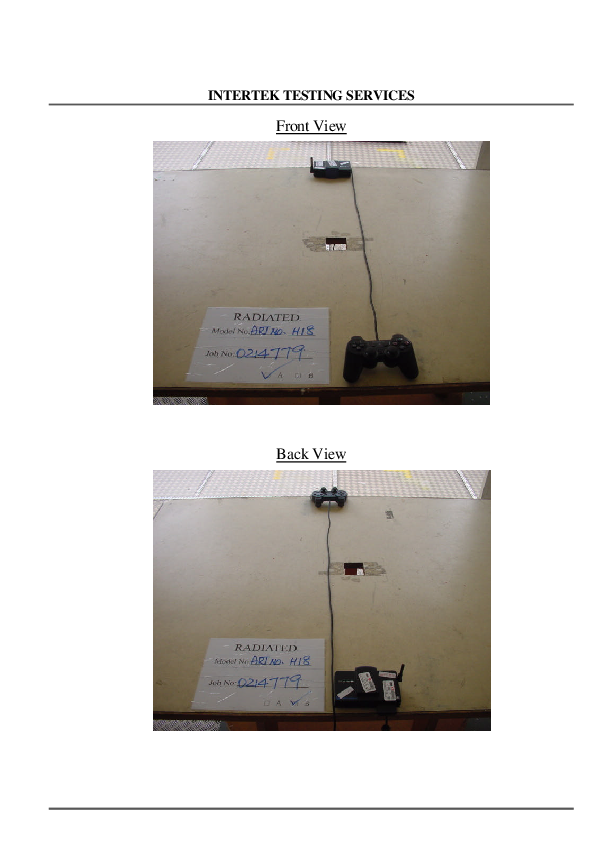

DescriptionRadiated Emission
Document TitleIphoto1.PDF
ApplicantSaitek Electronics (SHENZHEN) Ltd
Equipment ClassPS2 Controller
Product CodePRX71
Application IDbY8/g5t5J+iDDFpiHKWrLg==
Application PurposeOriginal Equipment
Application Date2003-04-04
Frequency Range907-922 MHz
FRN0009778820
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-04-04
Available2003-04-04
Created2002-10-30
Modified2002-10-30
Pages1
File TypeAdobe Acrobat PDF
File Size152130
File SHA-256370eebb5bb45d93fc2c047ed0357e256752ac09330460a15bf7fa6fa3182bdb1
PDF Metadata AuthorWINGL
PDF Metadata ProducerMicrosoft Word Acrobat PDFWriter 4.0 for Windows
FCC.gov SourcesFCC.gov 315793
