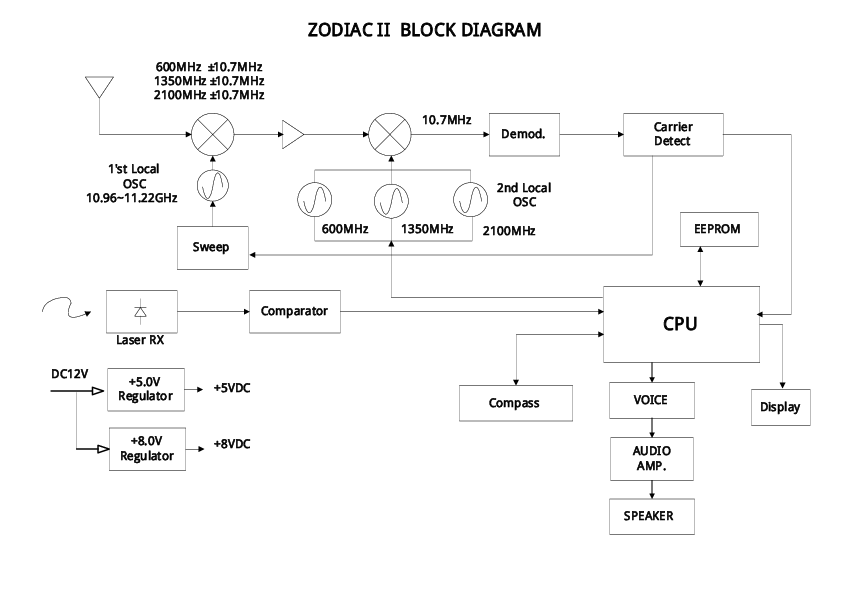

IFS11428 Radar Detector Block Diagram - FCC ID QJ3-IFS-11428

FCC ID QJ3-IFS-11428

Block Diagram

Radar Detector

by PNI Corporation

Document preview loads when visible.

Document Details

FCC IDQJ3-IFS-11428
Document ID382140
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleVisio-ZODIAC II Block diagram.vsd
ApplicantPNI Corporation
Equipment ClassRadar Detector
Product CodeIFS11428
Application ID0PUbPzl1PB6FdmX29bttiA==
Application PurposeOriginal Equipment
Application Date2003-12-17
Frequency Range10960-11220 MHz
FRN0013552872
Test FirmGlen Ellen Laboratories
Certified ByGeroge Hsu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-12-17
Available2003-12-17
Created2003-05-30
Modified2003-12-05
Pages2
File TypeAdobe Acrobat PDF
File Size16999
File SHA-256638c63ebe3cf3bf2eac8eea2c7fb90601743ba205df1997dfd9015809d9a0002
PDF Metadata Author조현주
PDF Metadata ProducerAcrobat PDFWriter 5.0 for Windows NT 조현주
FCC.gov SourcesFCC.gov 382140
