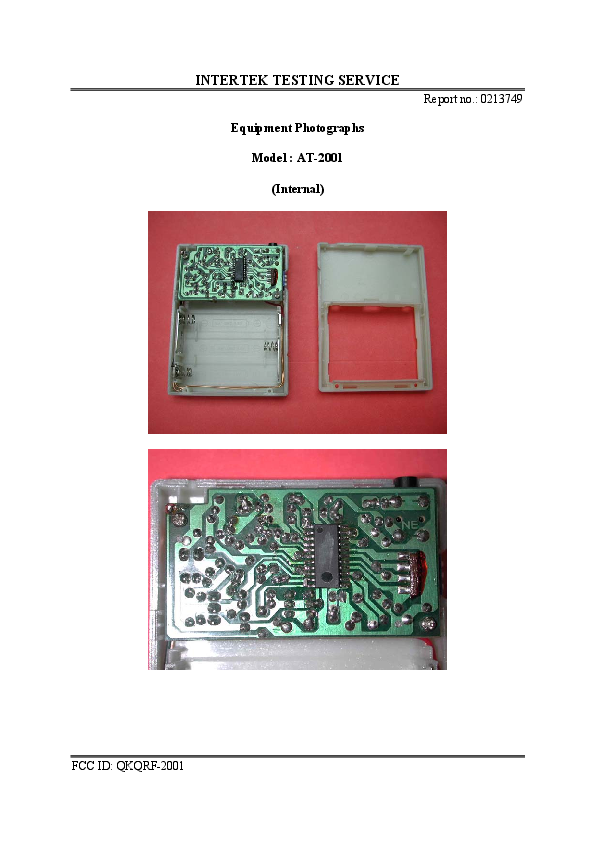

RF2001 FM Transmitter Teardown Internal Photos - FCC ID QKQRF-2001

FCC ID QKQRF-2001

Internal Photo

FM Transmitter

by Richfield Electronics (China) Limited

Document preview loads when visible.

Document Details

FCC IDQKQRF-2001
Document ID281158
Document TypeInternal Photos
DescriptionInternal Photo
Document TitleApplicant Name
ApplicantRichfield Electronics (China) Limited
Equipment ClassFM Transmitter
Product CodeRF2001
Application IDpgjQd1T8t4izAj3ah9Gi6Q==
Application PurposeOriginal Equipment
Application Date2002-11-05
Frequency Range106.7-107.9 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByAlfred Lo Senior Technical Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-11-05
Available2002-11-05
Created2002-10-30
Modified2002-10-30
Pages3
File TypeAdobe Acrobat PDF
File Size295977
File SHA-2566d56f8ea345d3c83246cbe568a14209dbc8ad8a6d634f85e58a51dc9079d2d19
PDF Metadata Authoruser
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) user
FCC.gov SourcesFCC.gov 281158
