SHR5016 Digital Video Recorder Block Diagram - FCC ID QL3SHR5016
FCC ID QL3SHR5016

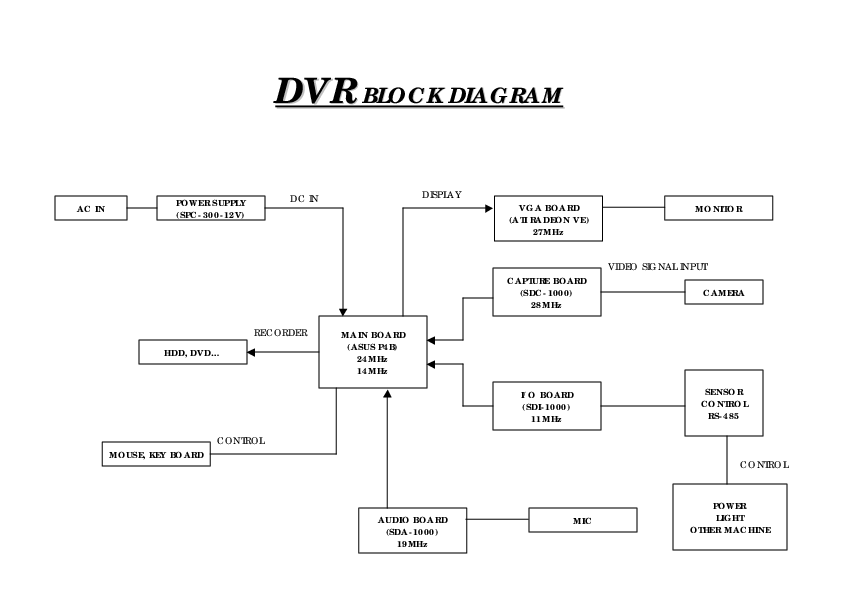

block diagram
Digital Video Recorder
Document preview loads when visible.
Document Details
| FCC ID | QL3SHR5016 |
|---|---|
| Document ID | 271020 |
| Document Type | Block Diagram |
| Description | block diagram |
| Document Title | DVR_Block(삼성전자_모델) |
| Applicant | KODICOM CO., Ltd. |
| Equipment Class | Digital Video Recorder |
| Product Code | SHR5016 |
| Application ID | RxS8jNAyRKIrVNic6VNm/A== |
| Application Purpose | Original Equipment |
| Application Date | 2002-09-16 |
| FRN | 0007584352 |
| Test Firm | EMC Compliance LTD |
| Certified By | Tae Hyun Ha Team Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-09-18 |
| Available | 2002-09-16 |
| Created | 2002-08-31 |
| Modified | 2002-08-31 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 6734 |
| File SHA-256 | cee7dee1d6ecf24e551e08415a3a1c6d257a9b0a0ada257234ec503446c7fa2e |
| PDF Metadata Author | 경일 |
| PDF Metadata Producer | Microsoft PowerPoint - [DVR_Block(삼성전자_모델)] Acrobat PDFWriter 4.0 Windows NT¿ë |
| FCC.gov Sources | FCC.gov 271020 |
