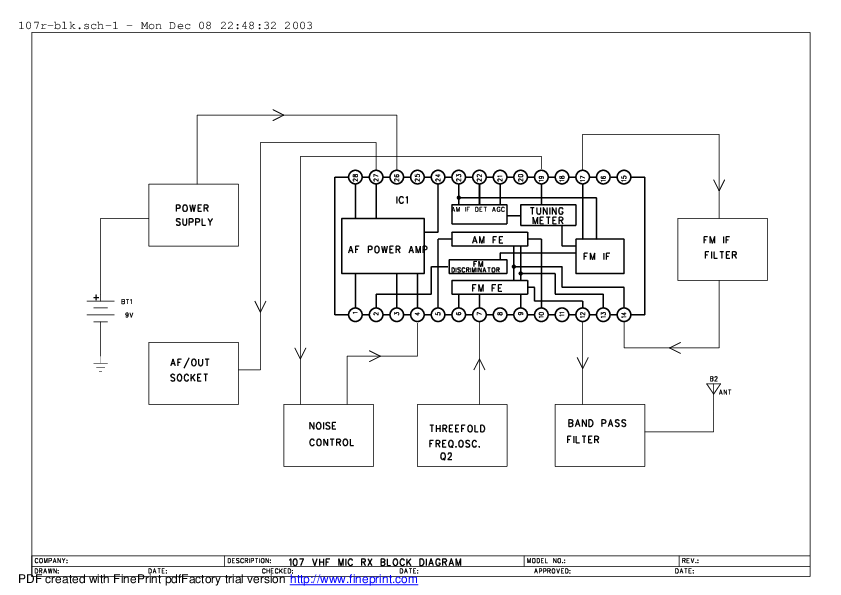

SMM112R Wireless Microphone Receiver Block... - FCC ID QNISMM-112-R

FCC ID QNISMM-112-R

Block Diagram

Wireless Microphone Receiver

by International SMC (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDQNISMM-112-R
Document ID449060
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleCAM output
ApplicantInternational SMC (HK) Ltd.
Equipment ClassWireless Microphone Receiver
Product CodeSMM112R
Application ID7D3Uw9kQrWaGvyQoGtFnCw==
Application PurposeOriginal Equipment
Application Date2004-07-13
Frequency Range171.905 MHz
FRN0003786449
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Superviser
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-13
Available2004-07-13
Created2003-12-08
Modified2003-12-08
Pages1
File TypeAdobe Acrobat PDF
File Size22008
File SHA-256f9b08fc8ba285ca2a02aed7d3e2199ed6cac3bbdc6e10f0243d91e88af809ccb
PDF Metadata Authorpads
PDF Metadata Producerhttp://www.fineprint.com pdfFactory v1.41 (Windows 98 Chinese(Taiwan))
FCC.gov SourcesFCC.gov 449060
