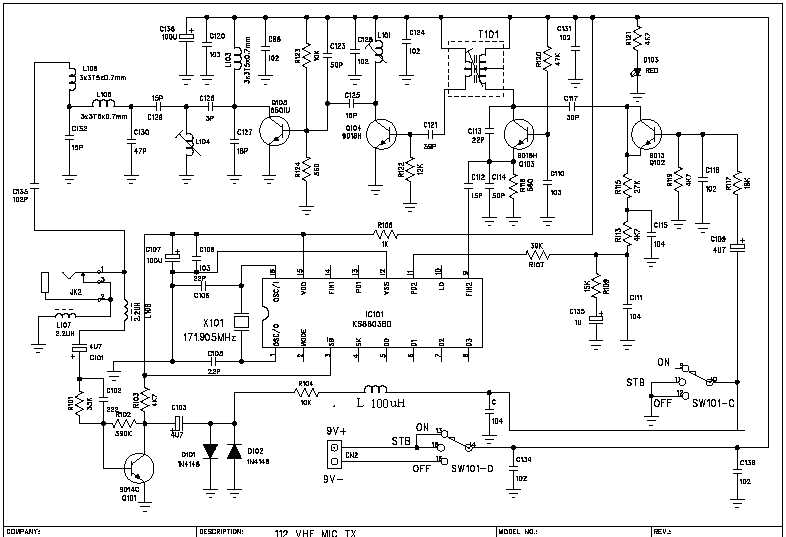

SMM112T Wireless Microphone Schematics - FCC ID QNISMM-112-T

FCC ID QNISMM-112-T

Schematics

Wireless Microphone

by International SMC (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDQNISMM-112-T
Document ID449328
Document TypeSchematics
DescriptionSchematics
ApplicantInternational SMC (HK) Ltd.
Equipment ClassWireless Microphone
Product CodeSMM112T
Application IDSnUzmUYojlqiq8K+Y8uXbA==
Application PurposeOriginal Equipment
Application Date2004-07-13
Frequency Range171.905 MHz
FRN0003786449
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Superviser (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-14
Available2004-07-13
Created2004-07-12
Modified2004-07-12
Pages1
File TypeAdobe Acrobat PDF
File Size64890
File SHA-256e2f3d9ff4e47f767b036bd0f2e201dc8d819997f43c3b9ba701b8997ac82a96f
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows Acrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 449328
