SP02 Bluetooth Speaker Block Diagram - FCC ID QPASP-02
FCC ID QPASP-02

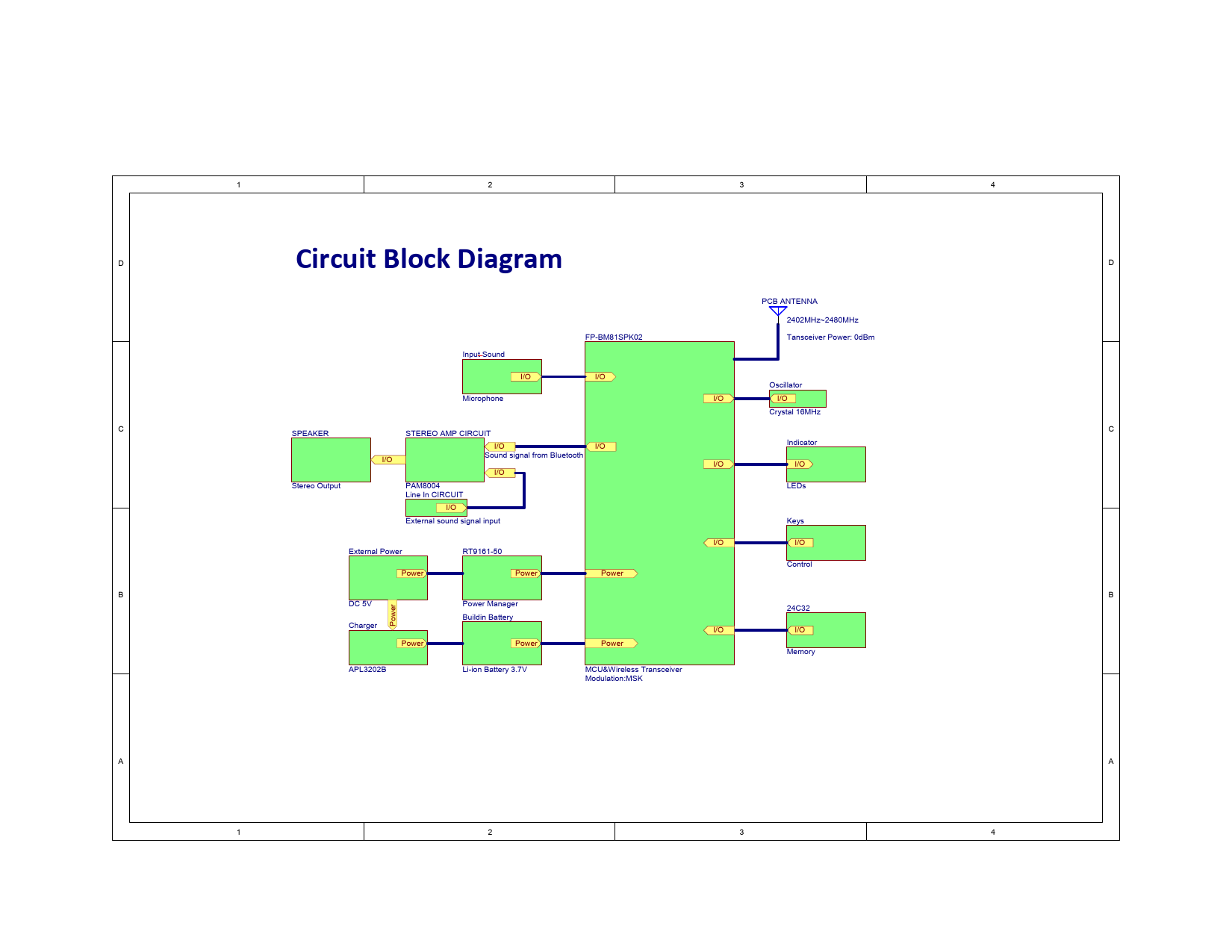

Block Diagram
Bluetooth Speaker
Document preview loads when visible.
Document Details
| FCC ID | QPASP-02 |
|---|---|
| Document ID | 1866863 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | Protel Schematic |
| Applicant | BRIGHT DRAGON TECHNOLOGY LIMITED |
| Equipment Class | Bluetooth Speaker |
| Product Code | SP02 |
| Application ID | 5YTFwi38DpHoSfEes/4DCQ== |
| Application Purpose | Original Equipment |
| Application Date | 2012-12-23 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0019890946 |
| Test Firm | Shenzhen Timeway Technology Consulting Co., Ltd. |
| Certified By | GARY PAI |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2012-12-23 |
| Available | 2012-12-23 |
| Created | 2012-12-21 |
| Modified | 2012-12-21 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 170500 |
| File SHA-256 | e10fccf85331920902e2bc1a67c5b44317fbbdb8b1cb297b65eaba2a1ade9217 |
| PDF Metadata Author | jjbu |
| PDF Metadata Creator | PScript5.dll Version 5.2.2 |
| PDF Metadata Producer | Acrobat Distiller 10.1.4 (Windows) |
| FCC.gov Sources | FCC.gov 1866863 |
