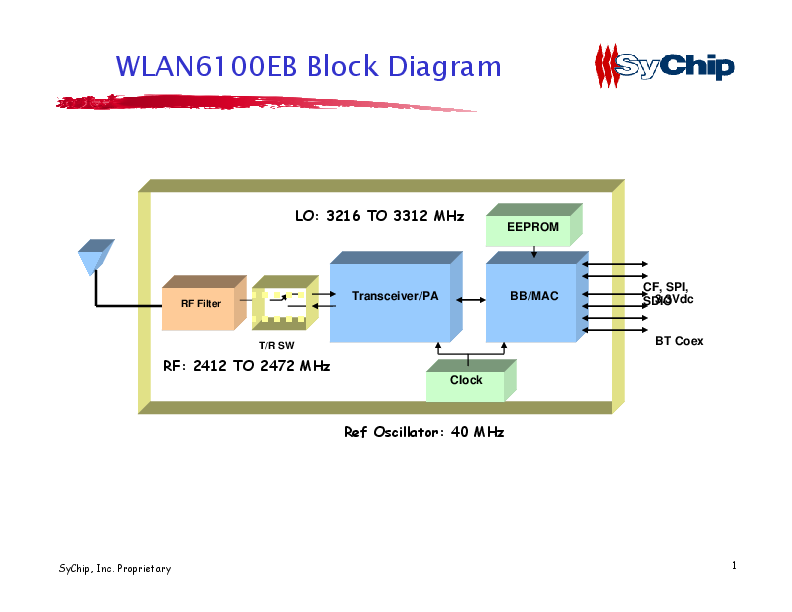

6100 802.11 b/g Transceiver Block Diagram - FCC ID QPU6100

FCC ID QPU6100

Block Diagram

802.11 b/g Transceiver

by Murata Electronics North America

Document preview loads when visible.

Document Details

FCC IDQPU6100
Document ID635325
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleMicrosoft PowerPoint - WLAN6100EB Block diagram rev 2.ppt
ApplicantMurata Electronics North America
Equipment Class802.11 b/g Transceiver
Product Code6100
Application IDw+HP/wrYQ3F7LrpYbyukTA==
Application PurposeOriginal Equipment
Application Date2006-03-10
Frequency Range2412-2462 MHz
FRN0024753089
Test FirmNemko USA, Inc.
Certified ByPravin Patel Frontline Associate
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-03-10
Available2006-03-10
Created2006-03-08
Modified2006-03-08
Pages2
File TypeAdobe Acrobat PDF
File Size197891
File SHA-25675b3437e7bb589d3bcf42362c77cf5ba9f4d9c9b2ac991dd0b1ee2c2136ee3a5
PDF Metadata Authorpprudhomme
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) pprudhomme
FCC.gov SourcesFCC.gov 635325
