M15 Mobile transmitter for Part 87 Schematics - FCC ID QQTM15

FCC ID QQTM15

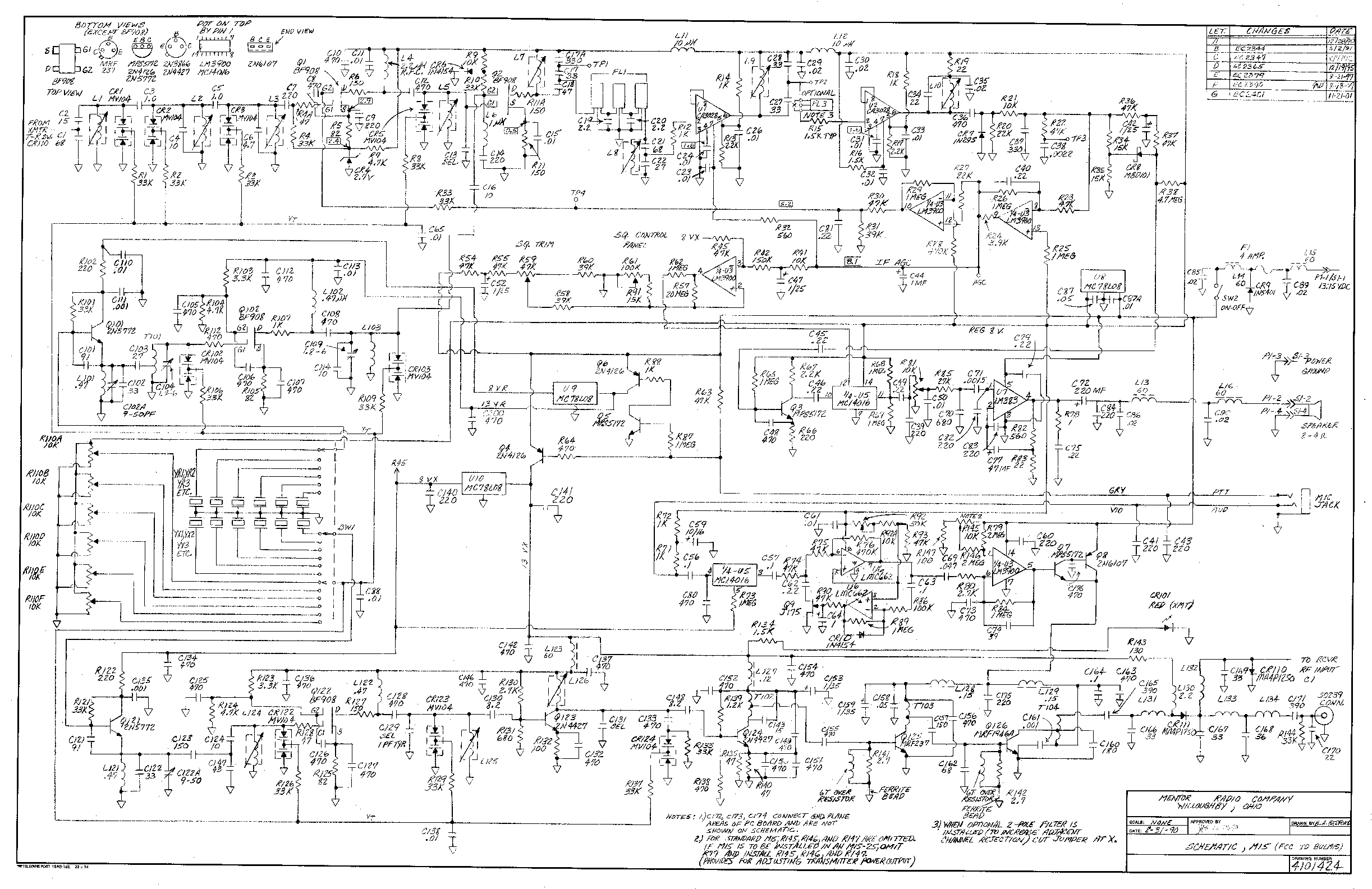

M15 schematic

Mobile transmitter for Part 87

by Mentor Radio, LLC

Document preview loads when visible.

Document Details

FCC IDQQTM15
Document ID330129
Document TypeSchematics
DescriptionM15 schematic
ApplicantMentor Radio, LLC
Equipment ClassMobile transmitter for Part 87
Product CodeM15
Application IDVbvNh3sFl2BEwvTn7OwReA==
Application PurposeChange in Identification
Application Date2003-06-27
Frequency Range118-137 MHz
FRN0016536187
Certified ByJack W. Streater Engineer, Mentor Radio Div.
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-06-04
Available2003-06-27
Created2003-05-29
Modified2003-05-29
Pages1
File TypeAdobe Acrobat PDF
File Size702356
File SHA-2561ed1e3f59eee78357bcf1a1bbdddb3aef7c3130edabdb23352aa4437c40d9a9c
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows Acrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 330129
