JPAA Parking Sensor Block Diagram - FCC ID QU7JPAA
FCC ID QU7JPAA

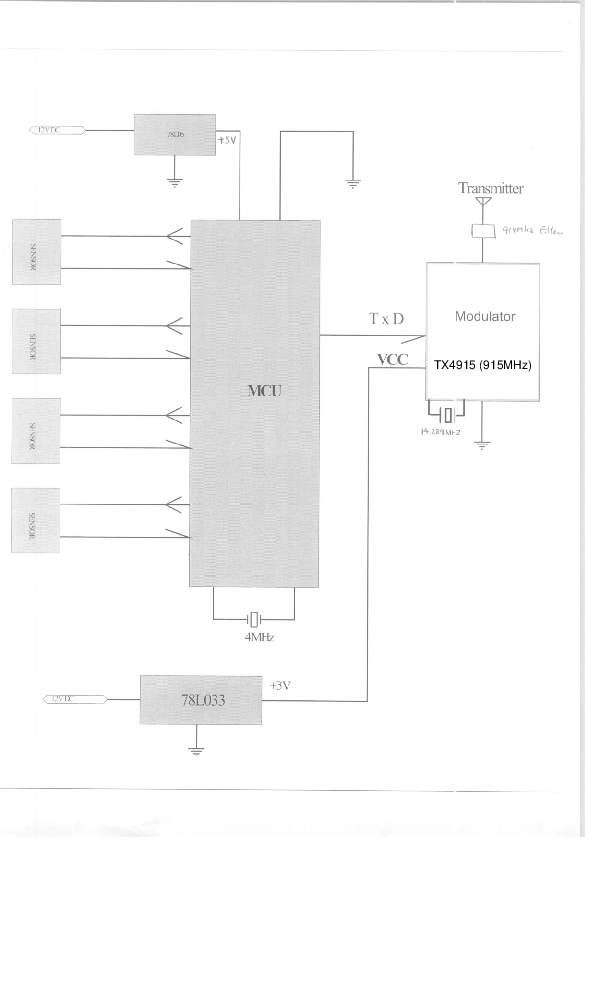

Block Diagram
Parking Sensor
Document preview loads when visible.
Document Details
| FCC ID | QU7JPAA |
|---|---|
| Document ID | 424699 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Joyce Park Industrial Ltd |
| Equipment Class | Parking Sensor |
| Product Code | JPAA |
| Application ID | XtRRvwHSkhu0UC97UMJpyg== |
| Application Purpose | Original Equipment |
| Application Date | 2004-05-23 |
| Frequency Range | 915 MHz |
| FRN | 0003786449 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Derek Leung Supervisor |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2004-05-23 |
| Available | 2004-05-23 |
| Created | 2004-05-18 |
| Modified | 2004-05-19 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 833766 |
| File SHA-256 | c4e4ddf106ba028d66a148149ec7f06c72de2f28fe31887af5ae08fbd7420b84 |
| PDF Metadata Producer | Acrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 424699 |
