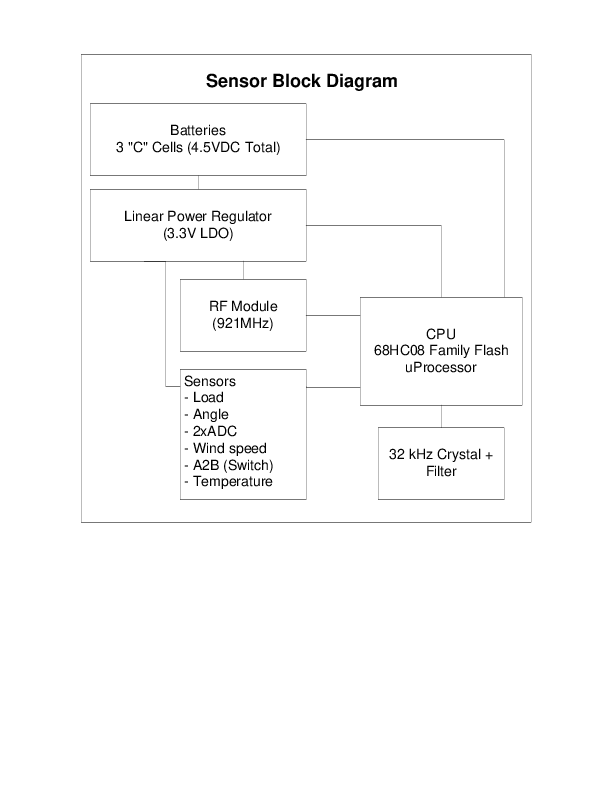

LS010 Angle Sensor Block Diagram - FCC ID QVBLS010

FCC ID QVBLS010

Block Diagram

Angle Sensor

by Load Systems International, Inc.

Document preview loads when visible.

Document Details

FCC IDQVBLS010
Document ID316650
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleVisio-Sensor block diagram.vsd
ApplicantLoad Systems International, Inc.
Equipment ClassAngle Sensor
Product CodeLS010
Application IDSQ9ScxLEvMyEvp9wEIQNMg==
Application PurposeOriginal Equipment
Application Date2003-04-08
Frequency Range921.3 MHz
FRN0008042517
Test FirmCompatible Electronics
Certified ByKyle Fujimoto Test Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-04-08
Available2003-04-08
Created2002-12-09
Modified2003-03-18
Pages1
File TypeAdobe Acrobat PDF
File Size7920
File SHA-256fb37d5ea8039b478c401d64505990e90da0ccd08d6956ee2864f5dbee82bed21
PDF Metadata AuthorProd
PDF Metadata ProducerAcrobat PDFWriter 5.0 for Windows NT Prod
FCC.gov SourcesFCC.gov 316650
