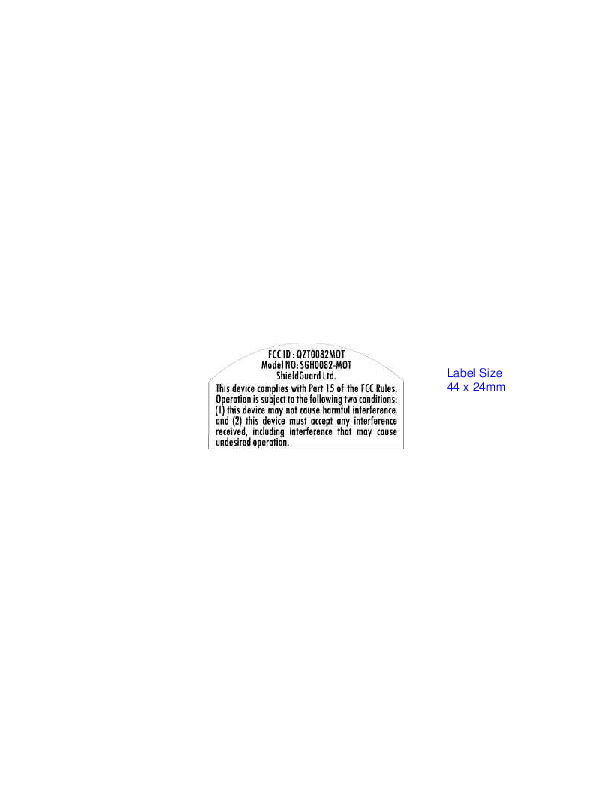

0082MOT Motion Sensor Unit Label Diagram - FCC ID QZT0082MOT

FCC ID QZT0082MOT

Label Artwork and Location

Motion Sensor Unit

by ShieldGuard Ltd

Document preview loads when visible.

Document Details

FCC IDQZT0082MOT
Document ID333244
Document TypeID Label/Location Info
DescriptionLabel Artwork and Location
ApplicantShieldGuard Ltd
Equipment ClassMotion Sensor Unit
Product Code0082MOT
Application IDYT40MWhsQZq43YN542J68g==
Application PurposeOriginal Equipment
Application Date2003-06-18
Frequency Range433.92 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2003-06-18
Available2003-06-18
Created2003-04-03
Modified2003-04-03
Pages2
File TypeAdobe Acrobat PDF
File Size247028
File SHA-25627e6ec549646d4b2569d3e5ffdde9ab8edce1086220e3c8e2a56459dfe9bfd8b
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 333244
