9452A01 BLUETOOTH SLIM PAD Block Diagram - FCC ID RAC9452A01
FCC ID RAC9452A01

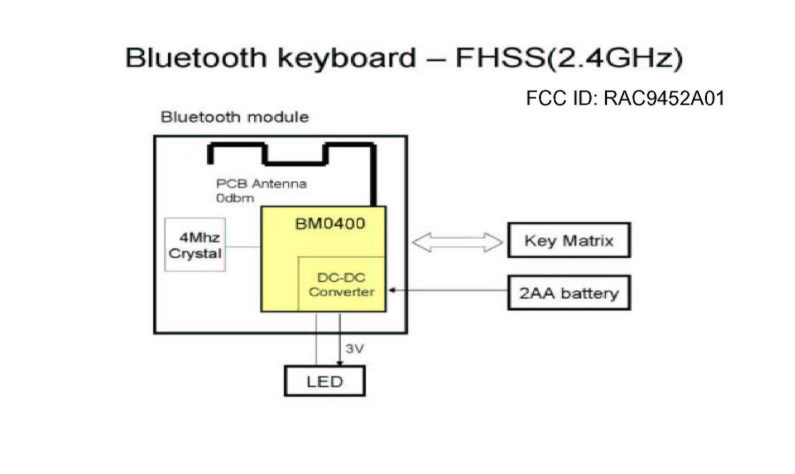

Block Diagram
BLUETOOTH SLIM PAD
Document preview loads when visible.
Document Details
| FCC ID | RAC9452A01 |
|---|---|
| Document ID | 1047275 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | None |
| Applicant | Precision Squared Technology Corporation |
| Equipment Class | BLUETOOTH SLIM PAD |
| Product Code | 9452A01 |
| Application ID | D8e+IMmo1XkszZX8v54i6g== |
| Application Purpose | Original Equipment |
| Application Date | 2008-12-19 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0016882565 |
| Test Firm | PEP Testing Laboratory |
| Certified By | Michael Chow R&D; Dept. Director |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2008-12-19 |
| Available | 2008-12-19 |
| Created | 2008-12-08 |
| Modified | 2008-12-08 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 78167 |
| File SHA-256 | e8266847a4be0e842cdb1b83231626fc8bc882ccfe31cf3c16b5ee737ebbdab5 |
| PDF Metadata Author | None |
| PDF Metadata Creator | Acrobat 5.0 Image Conversion Plug-in for Windows |
| PDF Metadata Producer | Acrobat 5.0 Image Conversion Plug-in for Windows |
| FCC.gov Sources | FCC.gov 1047275 |
