FCC ID RAD558
HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone
by TCT Mobile Limited
Grantee Code: RAD Product Code: 558
Latest application date: 2015-11-16

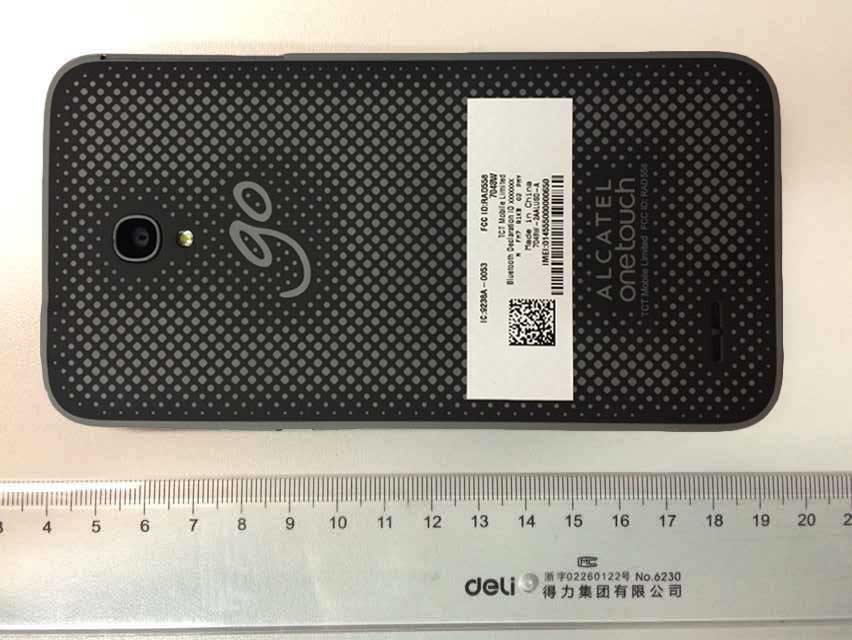

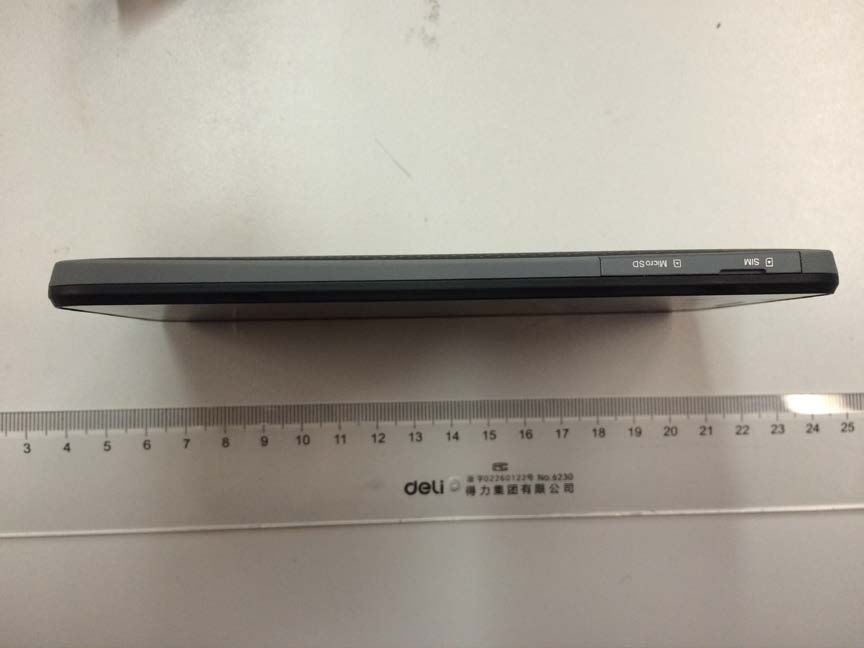

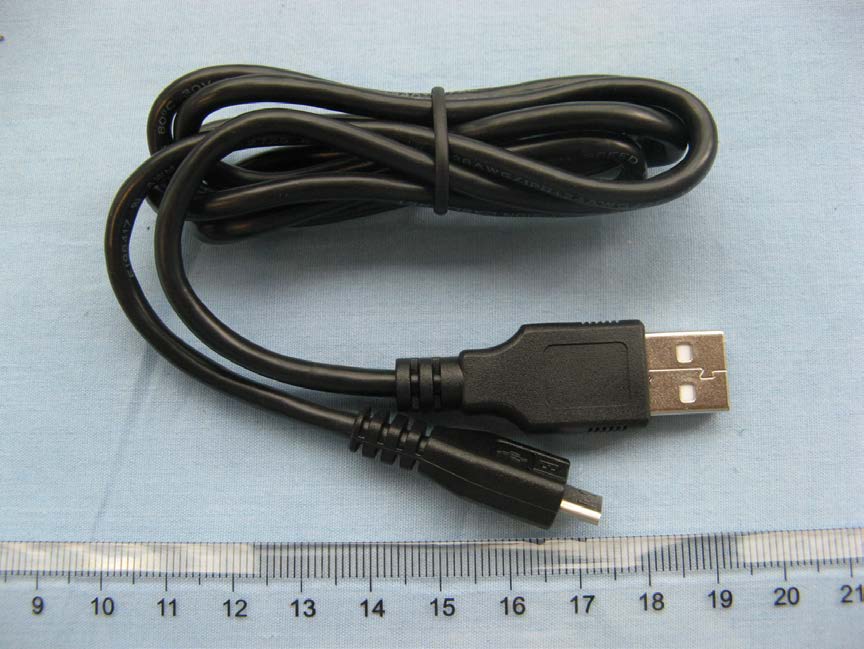

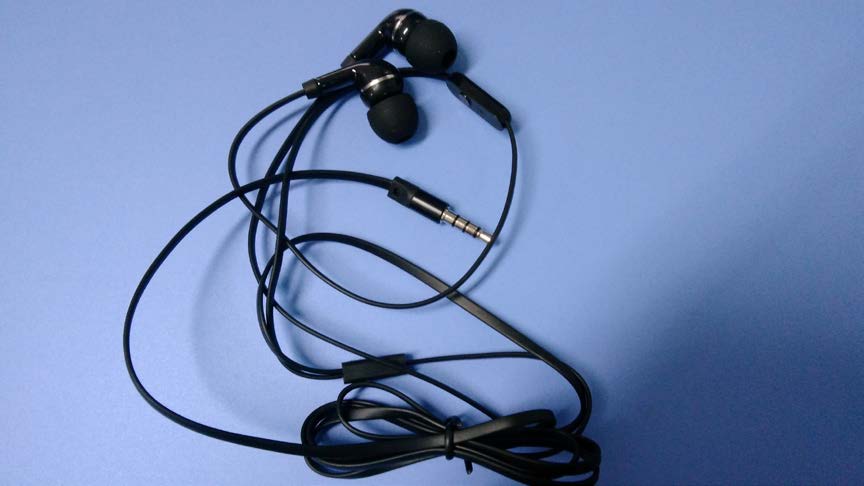

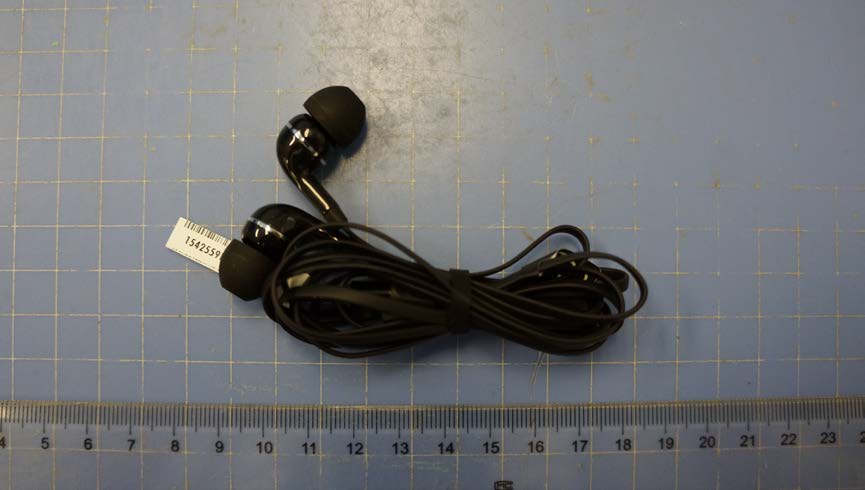

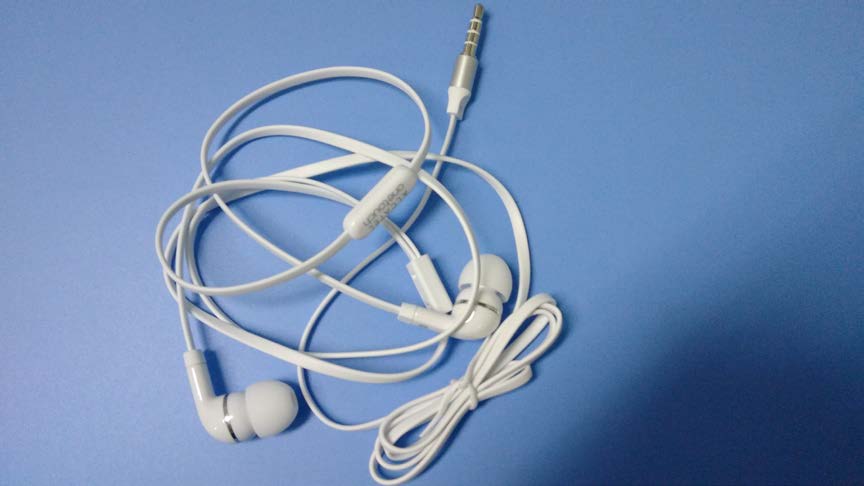

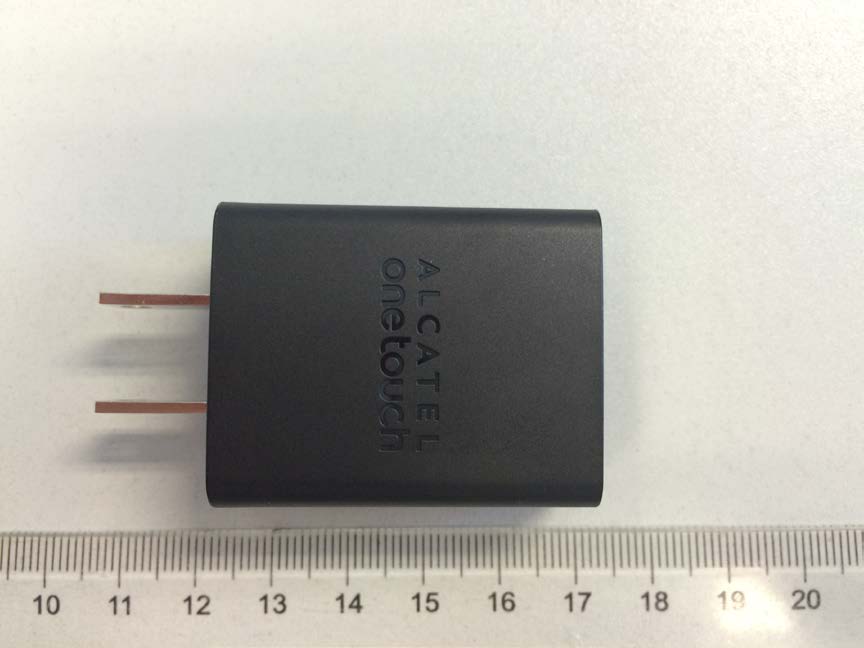

Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-11-16 |
| 2402-2480 MHz | Original Equipment | 2015-11-16 |
| 699.7-715.3 MHz | Original Equipment | 2015-11-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Go Play NA_7048W UM_V1 | Users Manual | 2015-11-16 | PDF 3.6 MB |

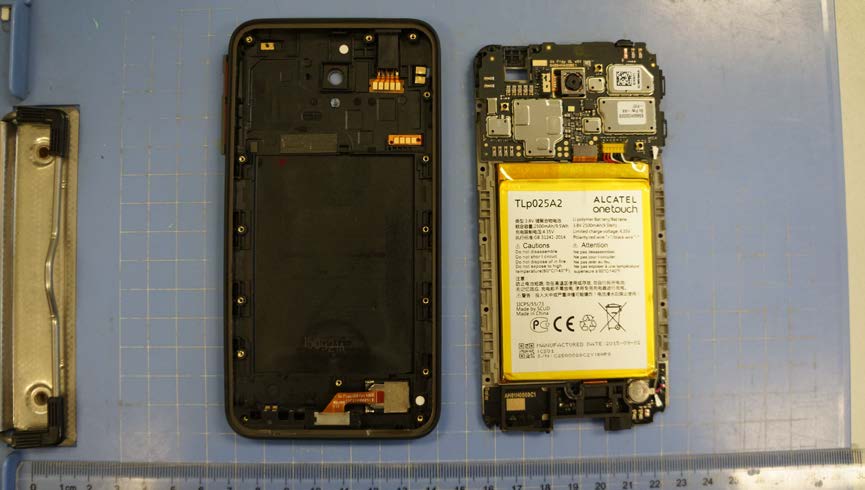

| 7048W Interior Photo | Internal Photos | 2015-11-16 | PDF 466.5 KB |
| 7048W Exteiror Photo | External Photos | 2015-11-16 | PDF 681.5 KB |
| 7048W IMEI Label placement | ID Label/Location Info | 2015-11-16 | PDF 117.6 KB |
| 7048W test_setup_photo | Test Setup Photos | 2015-11-16 | PDF 3.2 MB |
| The Photos of SAR test _42559_FCC | Test Setup Photos | 2015-11-16 | PDF 1.9 MB |
| The photos of HAC test | Test Setup Photos | 2015-11-16 | PDF 110.7 KB |
| I15Z42559-EMC01_7048W_FCC_Part15B Rev1 | Test Report | 2015-11-16 | PDF 276.3 KB |
| I15Z42559-GTE01_FCC_Part2224_GSM_Rev0 | Test Report | 2015-11-16 | PDF 1.2 MB |
| I15Z42559-GTE03_FCC_Part222427_WCDMA_Rev0 | Test Report | 2015-11-16 | PDF 1.1 MB |
| I15Z42559-GTE05_FCC_part222427_LTE_Rev0 | Test Report | 2015-11-16 | PDF 2.2 MB |
| I15Z42559-SEM03_HAC_Rev0_PART1 | Test Report | 2015-11-16 | PDF 4 MB |
| I15Z42559-SEM03_HAC_Rev0_PART2 | Test Report | 2015-11-16 | PDF 2.9 MB |
| I15Z42559-SEM04_T-coil_Rev0 | Test Report | 2015-11-16 | PDF 3.2 MB |
| I15Z42559-SRD01_FCC Report_WLAN 2.4G-Rev0_PART1 | Test Report | 2015-11-16 | PDF 5.3 MB |
| I15Z42559-SRD01_FCC Report_WLAN 2.4G-Rev0_PART2 | Test Report | 2015-11-16 | PDF 5.3 MB |
| I15Z42559-SRD01_FCC Report_WLAN 2.4G-Rev0_PART3 | Test Report | 2015-11-16 | PDF 4.2 MB |
| I15Z42559-SRD02 FCC_Report_Part15C_EDR_Rev0 | Test Report | 2015-11-16 | PDF 3 MB |
| I15Z42559-SRD03 FCC_Report_Part15C_BLE_Rev0 | Test Report | 2015-11-16 | PDF 1.2 MB |
| 7048W FCC Confidentiality Letter | Cover Letter(s) | 2015-11-16 | PDF 37.9 KB |
| Agent Letter-TCT-2015-10-19 | Cover Letter(s) | 2015-11-16 | PDF 77.6 KB |
| I15Z42559-SEM01_SAR_Rev0_PART1 | RF Exposure Info | 2015-11-16 | PDF 5.5 MB |
| I15Z42559-SEM01_SAR_Rev0_PART2 | RF Exposure Info | 2015-11-16 | PDF 5.5 MB |
| I15Z42559-SEM01_SAR_Rev0_PART3 | RF Exposure Info | 2015-11-16 | PDF 5.3 MB |
| I15Z42559-SEM01_SAR_Rev0_PART4 | RF Exposure Info | 2015-11-16 | PDF 5.4 MB |
| I15Z42559-SEM01_SAR_Rev0_PART5 | RF Exposure Info | 2015-11-16 | PDF 5.4 MB |
| I15Z42559-SEM01_SAR_Rev0_PART6 | RF Exposure Info | 2015-11-16 | PDF 4.8 MB |
| I15Z42559-SEM01_SAR_Rev0_PART7 | RF Exposure Info | 2015-11-16 | PDF 5.5 MB |
| I15Z42559-SEM01_SAR_Rev0_PART8 | RF Exposure Info | 2015-11-16 | PDF 1.2 MB |
| Confidential_7048W Block diagram Metadata only | Block Diagram | PDF 271.2 KB | |
| Confidential_7048W Schematics Metadata only | Schematics | PDF 3.4 MB | |
| Confidential_7048W Operation Description_v2 Metadata only | Operational Description | PDF 811.6 KB | |
| Confidential_Go Play NA 7048w Antenna Details Metadata only | Operational Description | PDF 80.4 KB | |
| Confidential_7048W BOM Metadata only | Parts List/Tune Up Info | PDF 109.2 KB | |
| Confidential_7048W Tune up procedure_v1 Metadata only | Parts List/Tune Up Info | PDF 234.4 KB | |
| Confidential_Go Play NA 7048w Antenna Details Metadata only | Parts List/Tune Up Info | PDF 80.4 KB |
Application Information
| Application ID | fIwj3WYd6R/pwY1s/tfB/g== |
|---|---|
| Final Action Date | 2015-11-16 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0009221672 |
| Model | 558 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Responsible Party | Zhizhou Gong, zhizhou.gong@tcl.com  , +86(0)2151798260 |
| Agent | Bo Bo Bo, CTTL, cttl_terminals@catr.cn  , +86(0)10-62304633 |
| Technical Contact | CTTL, cttl_terminals@catr.cn , +86(0)10-62304633 |
| Test Firm | Zou Dongyi, China Telecommunication Technology Labs, emc@chinattl.com  , 86-10-68094053 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This device contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| fIwj3WYd6R/pwY1s/tfB/g== | 2015-11-16 | Original Equipment |
| d3J1zTTGA7CUP9KXzj3IsQ== | 2015-11-16 | Original Equipment |
| IhEiZtZ2TxT4fa82OezIow== | 2015-11-16 | Original Equipment |
| IVtOrT40aXzfAaHuIJgS9w== | 2015-11-16 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 699.7-715.3 MHz | 0.0813 | 0.1ppm | 1M09G7D | 27 | BC, HX |
| 700.5-714.5 MHz | 0.0698 | 0.1ppm | 2M69W7D | 27 | BC, HX |
| 704-711 MHz | 0.0738 | 0.1ppm | 8M94G7D | 27 | BC, HX |
| 704-711 MHz | 0.0647 | 0.1ppm | 8M99W7D | 27 | BC, HX |
| 706.5-713.5 MHz | 0.0757 | 0.1ppm | 4M52G7D | 27 | BC, HX |
| 709-711 MHz | 0.0738 | 0.1ppm | 8M99G7D | 27 | BC, HX |
| 709-711 MHz | 0.0676 | 0.1ppm | 9M04W7D | 27 | BC, HX |
| 824.2-848.8 MHz | 0.1714 | 0.1ppm | 300KG7W | 22H | BC, HX |
| 825.5-847.5 MHz | 0.0944 | 0.1ppm | 2M69W7D | 22 | BC, HX |
| 826.4-846.6 MHz | 0.0838 | 0.1ppm | 4M50F9W | 22H | BC, HC |
| 829-844 MHz | 0.1042 | 0.1ppm | 9M04G7D | 22 | BC, HX |
| 829-844 MHz | 0.0916 | 0.1ppm | 8M99W7D | 22 | BC, HX |
| 1712.4-1752.6 MHz | 0.2679 | 0.1ppm | 4M50F9W | 27 | BC, HC |
| 1717.5-1747.5 MHz | 0.3013 | 0.1ppm | 13M5W7D | 27 | BC, HX |
| 1720-1745 MHz | 0.3648 | 0.1ppm | 17M9G7D | 27 | BC, HX |
| 1720-1745 MHz | 0.257 | 0.1ppm | 17M9W7D | 27 | BC, HX |
| 1850-1909.3 MHz | 0.1618 | 0.1ppm | 1M09W7D | 24E | BC, HX |
| 1850.2-1909.8 MHz | 0.3556 | 0.1ppm | 300KG7W | 24E | BC, HX |
| 1852.4-1907.6 MHz | 0.227 | 0.1ppm | 4M50F9W | 24E | BC, HC |
| 1860-1900 MHz | 0.1426 | 0.1ppm | 17M9W7D | 24E | BC, HX |
| 1860-1900 MHz | 0.2028 | 0.1ppm | 18M0G7D | 24E | BC, HX |
| 2402-2480 MHz | 0.0029000 | 15C | CC | ||
| 2402-2480 MHz | 0.0012 | 15C | CC | ||
| 2412-2462 MHz | 0.3954 | 15C | CC, HX | ||
| 2505-2565 MHz | 0.2655 | 0.1ppm | 8M94W7D | 27 | BC, HX |
| 2510-2560 MHz | 0.2931 | 0.1ppm | 18M0G7D | 27 | BC, HX |
| 2510-2560 MHz | 0.2323 | 0.1ppm | 17M9W7D | 27 | BC, HX |
Grants
TCB Grant - Application IVtOrT40aXzfAaHuIJgS9w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| TCT Mobile Limited |
| 5F, C building, No. 232, Liang Jing Road |
| Zhangjiang High-Tech Park, Pudong |
| Shanghai, 201203 China |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.798 | 0.1 PM | 300KGXW |
| BC HC | 24E | 1850.2 - 1909.8 | 1.0447 | 0.1 PM | 300KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1714 | 0.1 PM | 300KG7W |
| BC HX | 24E | 1850.2 - 1909.8 | 0.3556 | 0.1 PM | 300KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0838 | 0.1 PM | 4M50F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.2679 | 0.1 PM | 4M50F9W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.227 | 0.1 PM | 4M50F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.2028 | 0.1 PM | 18M0G7D |
| BC HX | 24E | 1850.0 - 1909.3 | 0.1618 | 0.1 PM | 1M09W7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1426 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.3648 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.3013 | 0.1 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.257 | 0.1 PM | 17M9W7D |
| BC HX | 22 | 829.0 - 844.0 | 0.1042 | 0.1 PM | 9M04G7D |
| BC HX | 22 | 825.5 - 847.5 | 0.0944 | 0.1 PM | 2M69W7D |
| BC HX | 22 | 829.0 - 844.0 | 0.0916 | 0.1 PM | 8M99W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.2931 | 0.1 PM | 18M0G7D |
| BC HX | 27 | 2505.0 - 2565.0 | 0.2655 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.2323 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0813 | 0.1 PM | 1M09G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0738 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 700.5 - 714.5 | 0.0698 | 0.1 PM | 2M69W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0647 | 0.1 PM | 8M99W7D |
| BC HX | 27 | 706.5 - 713.5 | 0.0757 | 0.1 PM | 4M52G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0738 | 0.1 PM | 8M99G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0676 | 0.1 PM | 9M04W7D |
| Power output is ERP for Part 22/27 and EIRP for Parts 24/27. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.0 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, Product Specific (Wireless Router) and simultaneous transmission conditions are 1.01 W/kg, 1.01 W/kg, 1.01 W/kg and 1.01 W/kg, respectively. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Band 7; 5 MHz and 10 MHz bandwidth modes for LTE Band 17. This device contains Bluetooth, BLE and WLAN transmitters. HAC Rating: M3/T3-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application IVtOrT40aXzfAaHuIJgS9w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road Zhangjiang High-Tech Park, Pudong Shanghai, 201203 China |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.798 | 0.1 PM | 300KGXW |
| BC HC | 24E | 1850.2 - 1909.8 | 1.0447 | 0.1 PM | 300KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.1714 | 0.1 PM | 300KG7W |
| BC HX | 24E | 1850.2 - 1909.8 | 0.3556 | 0.1 PM | 300KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.0838 | 0.1 PM | 4M50F9W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.2679 | 0.1 PM | 4M50F9W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.227 | 0.1 PM | 4M50F9W |
| BC HX | 24E | 1860.0 - 1900.0 | 0.2028 | 0.1 PM | 18M0G7D |
| BC HX | 24E | 1850.0 - 1909.3 | 0.1618 | 0.1 PM | 1M09W7D |
| BC HX | 24E | 1860.0 - 1900.0 | 0.1426 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.3648 | 0.1 PM | 17M9G7D |
| BC HX | 27 | 1717.5 - 1747.5 | 0.3013 | 0.1 PM | 13M5W7D |
| BC HX | 27 | 1720.0 - 1745.0 | 0.257 | 0.1 PM | 17M9W7D |
| BC HX | 22 | 829.0 - 844.0 | 0.1042 | 0.1 PM | 9M04G7D |
| BC HX | 22 | 825.5 - 847.5 | 0.0944 | 0.1 PM | 2M69W7D |
| BC HX | 22 | 829.0 - 844.0 | 0.0916 | 0.1 PM | 8M99W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.2931 | 0.1 PM | 18M0G7D |
| BC HX | 27 | 2505.0 - 2565.0 | 0.2655 | 0.1 PM | 8M94W7D |
| BC HX | 27 | 2510.0 - 2560.0 | 0.2323 | 0.1 PM | 17M9W7D |
| BC HX | 27 | 699.7 - 715.3 | 0.0813 | 0.1 PM | 1M09G7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0738 | 0.1 PM | 8M94G7D |
| BC HX | 27 | 700.5 - 714.5 | 0.0698 | 0.1 PM | 2M69W7D |
| BC HX | 27 | 704.0 - 711.0 | 0.0647 | 0.1 PM | 8M99W7D |
| BC HX | 27 | 706.5 - 713.5 | 0.0757 | 0.1 PM | 4M52G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0738 | 0.1 PM | 8M99G7D |
| BC HX | 27 | 709.0 - 711.0 | 0.0676 | 0.1 PM | 9M04W7D |
| Power output is ERP for Part 22/27 and EIRP for Parts 24/27. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.0 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for head, body-worn accessory, Product Specific (Wireless Router) and simultaneous transmission conditions are 1.01 W/kg, 1.01 W/kg, 1.01 W/kg and 1.01 W/kg, respectively. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; 1.4 MHz, 3MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Band 7; 5 MHz and 10 MHz bandwidth modes for LTE Band 17. This device contains Bluetooth, BLE and WLAN transmitters. HAC Rating: M3/T3-2011. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| TCT Mobile Limited |
| 5F, C building, No. 232, Liang Jing Road |
| Zhangjiang High-Tech Park, Pudong |
| Shanghai, 201203 China |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2462.0 | 0.3954 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0012 |
| Power output is conducted. Bodyworn operations are restricted to beltclips,holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.0 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, bodyworn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.78 W/kg, 0.42 W/kg, 0.42 W/kg and 1.01 W/kg, respectively. This device contains Bluetooth and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application IhEiZtZ2TxT4fa82OezIow==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road Zhangjiang High-Tech Park, Pudong Shanghai, 201203 China |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2462.0 | 0.3954 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0012 |
| Power output is conducted. Bodyworn operations are restricted to beltclips,holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.0 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, bodyworn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.78 W/kg, 0.42 W/kg, 0.42 W/kg and 1.01 W/kg, respectively. This device contains Bluetooth and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| TCT Mobile Limited |
| 5F, C building, No. 232, Liang Jing Road |
| Zhangjiang High-Tech Park, Pudong |
| Shanghai, 201203 China |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| This device contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application fIwj3WYd6R/pwY1s/tfB/g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road Zhangjiang High-Tech Park, Pudong Shanghai, 201203 China |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| This device contains Bluetooth, BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| TCT Mobile Limited |
| 5F, C building, No. 232, Liang Jing Road |
| Zhangjiang High-Tech Park, Pudong |
| Shanghai, 201203 China |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0029 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application d3J1zTTGA7CUP9KXzj3IsQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road Zhangjiang High-Tech Park, Pudong Shanghai, 201203 China |
Date of Grant: 11/16/2015 Application Dated: 11/16/2015 |
| Attention: Zhizhou Gong |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RAD558 |
| Name of Grantee: | TCT Mobile Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | HSUPA/HSDPA/UMTS tribands / GSM quadbands/LTE 6-band mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0029 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains BLE, WLAN and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
