LYD208CA Wireless Camera Block Diagram - FCC ID RAWLYD208CA
FCC ID RAWLYD208CA

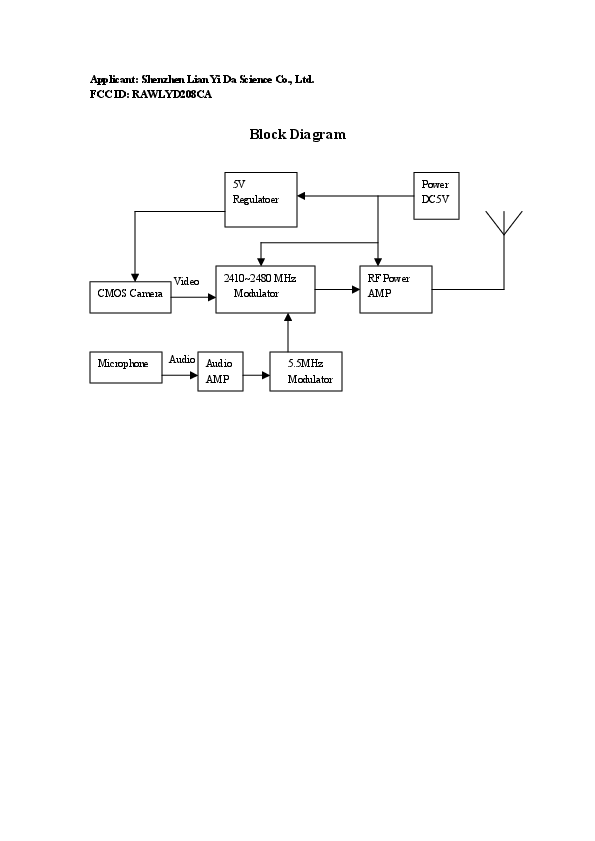

Block diagram
Wireless Camera
Document preview loads when visible.
Document Details
| FCC ID | RAWLYD208CA |
|---|---|
| Document ID | 371217 |
| Document Type | Block Diagram |
| Description | Block diagram |
| Document Title | Block Diagram |
| Applicant | Shenzhen Lian Yi Da Science Co., Ltd. |
| Equipment Class | Wireless Camera |
| Product Code | LYD208CA |
| Application ID | WOY6QKwG40jffWJ76pGAUw== |
| Application Purpose | Original Equipment |
| Application Date | 2003-11-04 |
| Frequency Range | 2414.2 MHz |
| FRN | 0004265807 |
| Test Firm | Ke Mei Ou Laboratory Co., Ltd. |
| Certified By | Mingsheng Deng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-11-06 |
| Available | 2003-11-04 |
| Created | 2003-10-16 |
| Modified | 2003-10-16 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 44426 |
| File SHA-256 | 951cc318f42e8dde4d9e60e8fc28d12cc9a4e455d62bbcea12ca88c830d7b638 |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | http://www.fineprint.com pdfFactory Pro v1.39 (Windows 2000 Chinese) |
| FCC.gov Sources | FCC.gov 371217 |
