LYD801CA Wireless Camera Operational... - FCC ID RAWLYD801CA

FCC ID RAWLYD801CA

Circuit Description

Wireless Camera

by Shenzhen Lian Yi Da Science Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDRAWLYD801CA
Document ID745098
Document TypeOperational Description
DescriptionCircuit Description

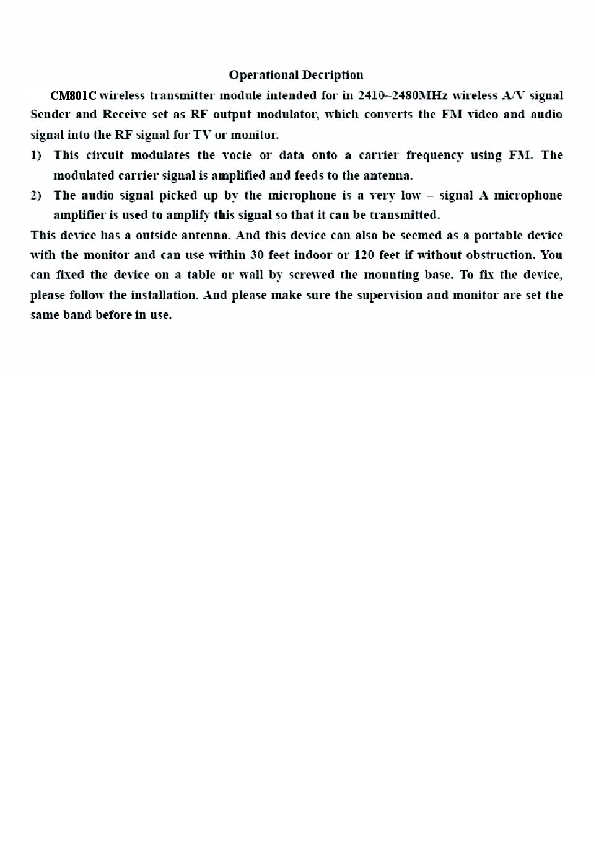

Document TitleCircuit description
ApplicantShenzhen Lian Yi Da Science Co., Ltd.
Equipment ClassWireless Camera
Product CodeLYD801CA
Application IDUQv2hK0LW0yuuicca7IK0w==
Application PurposeOriginal Equipment
Application Date2007-01-08
Frequency Range2414-2468 MHz
FRN0004265807
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByMingsheng Deng
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-01-08
Available2007-01-08
Created2007-01-05
Modified2007-01-05
Pages1
File TypeAdobe Acrobat PDF
File Size101179
File SHA-256760ed70045e0a893715f2ddffacadb2e5e09c31f68035663343899d2daa0bdfd
PDF Metadata Authormayw
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) mayw
FCC.gov SourcesFCC.gov 745098
