PRO711 2.4GHz WIRELESS MICRO TRANSMITTER... - FCC ID RBAPRO-711

FCC ID RBAPRO-711

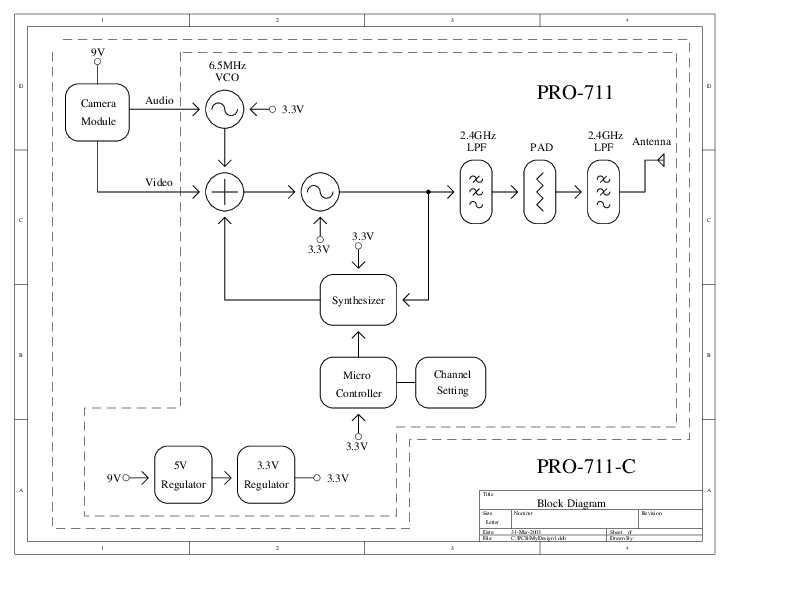

BLOCK DIAGRAM

2.4GHz WIRELESS MICRO TRANSMITTER

by TALITOR (FAR EAST) COMPANY LIMITED

Document preview loads when visible.

Document Details

FCC IDRBAPRO-711
Document ID351479
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantTALITOR (FAR EAST) COMPANY LIMITED
Equipment Class2.4GHz WIRELESS MICRO TRANSMITTER
Product CodePRO711
Application IDbYZpIPyDda7Zn5mrvuseqw==
Application PurposeOriginal Equipment
Application Date2003-08-27
Frequency Range2414-2468 MHz
FRN0008923815
Test FirmSGS Taiwan Ltd.
Certified ByJOAN WU MARKETING MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-08-27
Available2003-08-27
Created2003-03-31
Modified2003-03-31
Pages1
File TypeAdobe Acrobat PDF
File Size11574
File SHA-256e4e723461b994f6950248910c07992b2d3d66b94b0bbcd6655961d530eb5d3cd
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows)
FCC.gov SourcesFCC.gov 351479
