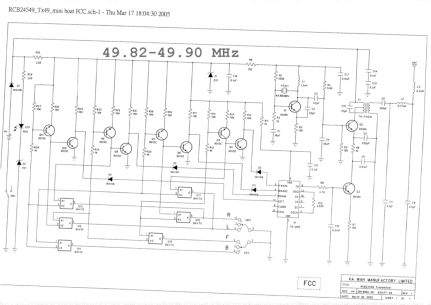

24549 REMOTE CONTROL TRANSMITTER Schematics - FCC ID RCB24549

FCC ID RCB24549

schematics

REMOTE CONTROL TRANSMITTER

by TOYS "R" US

Document preview loads when visible.

Document Details

FCC IDRCB24549
Document ID531695
Document TypeSchematics
Descriptionschematics
ApplicantTOYS "R" US
Equipment ClassREMOTE CONTROL TRANSMITTER
Product Code24549
Application IDABvdMXz5Mfh7n3UJJDAVUA==
Application PurposeOriginal Equipment
Application Date2005-04-12
Frequency Range49.86 MHz
FRN0006757777
Test FirmTimco Engineering, Inc.
Certified ByCHUCK MIGA ENGINEERING MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2005-04-13
Available2005-04-12
Created2005-04-04
Modified2005-04-04
Pages1
File TypeAdobe Acrobat PDF
File Size804347
File SHA-256f693fee7adc2abfb5d5014bf231bbeb4461cec69d0e58f9f3f4ca70a06b9e766
PDF Metadata ProducerAdobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows
FCC.gov SourcesFCC.gov 531695
