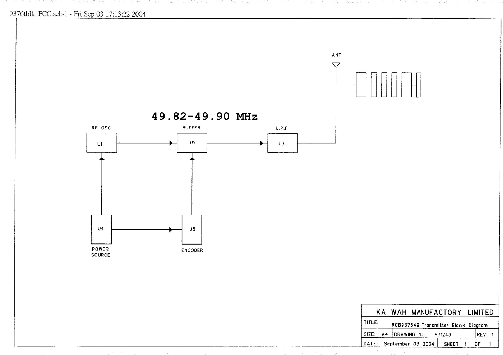

895A49 49 MHz WIRELESS R/C TOY-TX Block Diagram - FCC ID RCB895A49

FCC ID RCB895A49

BLOCK DIAGRAM

49 MHz WIRELESS R/C TOY-TX

by TOYS "R" US

Document preview loads when visible.

Document Details

FCC IDRCB895A49
Document ID467506
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantTOYS "R" US
Equipment Class49 MHz WIRELESS R/C TOY-TX
Product Code895A49
Application IDrAxB5S3gLA445XxaVn7zdw==
Application PurposeOriginal Equipment
Application Date2004-09-10
Frequency Range49.86-49.9 MHz
FRN0006757777
Test FirmTimco Engineering, Inc.
Certified ByCHUCK MIGA ENGINEERING MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-09-10
Available2004-09-10
Pages1
File TypeAdobe Acrobat PDF
File Size70695
File SHA-256d52c527e4e88ac6736a42e7d0bcabc35b970ce49ea2ecb437f66506a3eb7d7a7
PDF Metadata ProducerAdobe Photoshop 5.0 Adobe Photoshop for Windows
FCC.gov SourcesFCC.gov 467506
