IMC1404000014 TOY STORY WT BUZZ &... - FCC ID RCPIMC1404000014

FCC ID RCPIMC1404000014

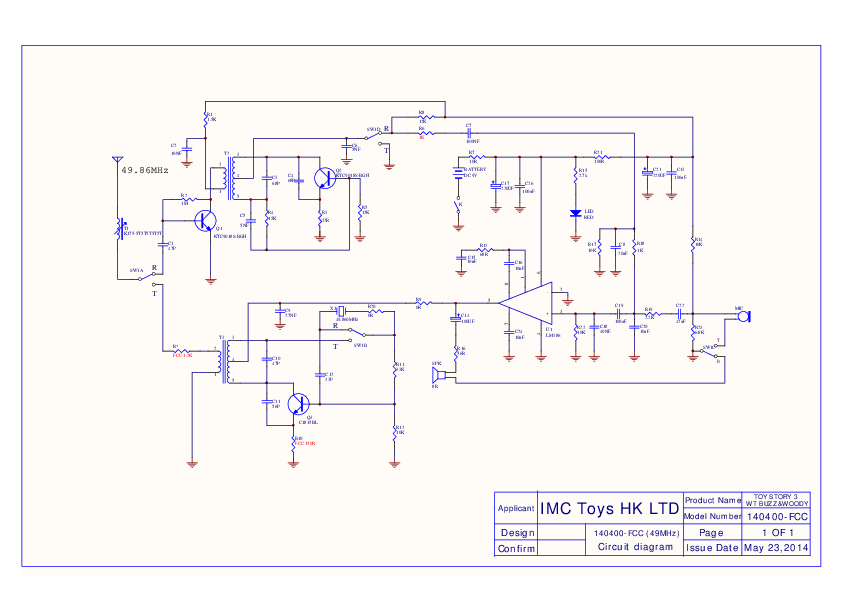

Circuit Diagram

TOY STORY WT BUZZ & WOODY

by IMC TOYS HONG KONG LIMTED

Document preview loads when visible.

Document Details

FCC IDRCPIMC1404000014
Document ID2300612
Document TypeSchematics
DescriptionCircuit Diagram
Document TitleProtel Schematic
ApplicantIMC TOYS HONG KONG LIMTED
Equipment ClassTOY STORY WT BUZZ & WOODY
Product CodeIMC1404000014
Application IDLtxyQA5fyX+kVbJj9ShKTQ==
Application PurposeOriginal Equipment
Application Date2014-06-19
Frequency Range49.86 MHz
FRN0009301243
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByJack Cheung
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-06-19
Available2014-06-19
Created2014-05-24
Modified2014-06-11
Pages1
File TypeAdobe Acrobat PDF
File Size22828
File SHA-25649a99fabddaccccfaf9748632d6809a253263e777f304dc75bc278db0e8e1b8a
PDF Metadata Authoryangguang
PDF Metadata Produceryangguang pdfFactory Pro 2.10 (Windows XP Chinese)
FCC.gov SourcesFCC.gov 2300612
