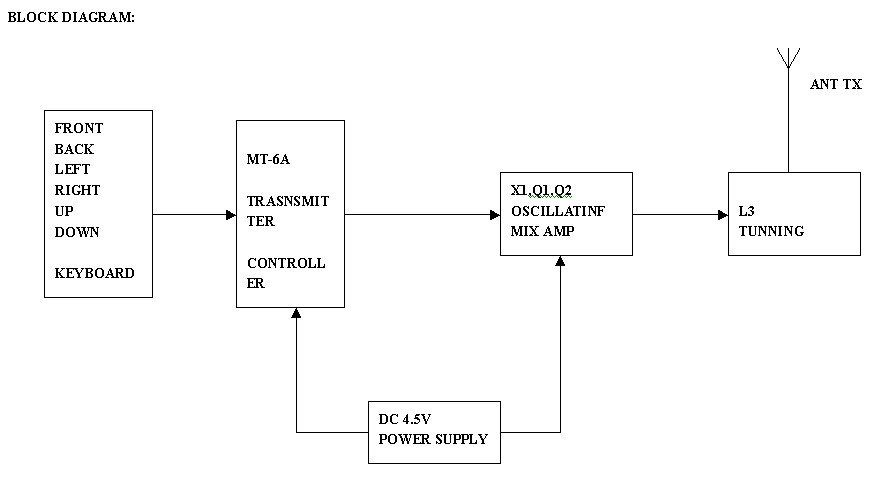

MB93130 27MHz Radio Transmitter Block Diagram - FCC ID RDJMB93130

FCC ID RDJMB93130

Block Diagram

27MHz Radio Transmitter

by Serendipity (H.K.) Ltd.

Document preview loads when visible.

Document Details

FCC IDRDJMB93130
Document ID384180
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSerendipity (H.K.) Ltd.
Equipment Class27MHz Radio Transmitter
Product CodeMB93130
Application IDjIHfbpdsm1Z1spiS9uhP4A==
Application PurposeOriginal Equipment
Application Date2003-12-23
Frequency Range27.145 MHz
FRN0003786449
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Superviser (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-12-23
Available2003-12-23
Created2003-12-19
Modified2003-12-19
Pages1
File TypeAdobe Acrobat PDF
File Size38237
File SHA-2562fa65a11264b7edc9a439d0763f433a2e708ce21c03f6462aff6d84d3e943401
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows Acrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 384180
