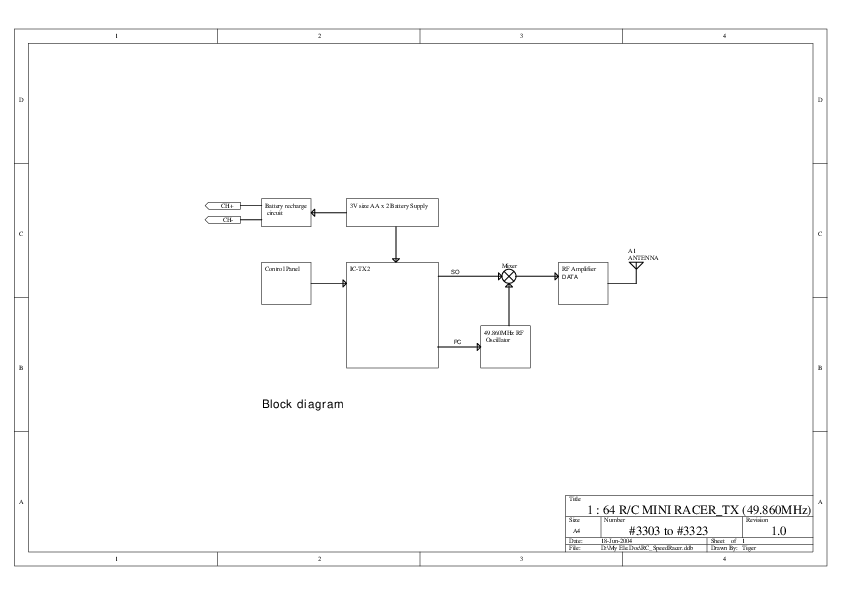

FF49B 49MHz Radio Transmitter Block Diagram - FCC ID REKFF49B

FCC ID REKFF49B

Block diagram

49MHz Radio Transmitter

by Switoy Limited

Document preview loads when visible.

Document Details

FCC IDREKFF49B
Document ID443959
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantSwitoy Limited
Equipment Class49MHz Radio Transmitter
Product CodeFF49B
Application IDTyyD3fAlxinBr+RGeoO6HQ==
Application PurposeOriginal Equipment
Application Date2004-06-22
Frequency Range49.86 MHz
FRN0009435322
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Superviser (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-06-25
Available2004-06-22
Created2004-06-18
Modified2004-06-22
Pages1
File TypeAdobe Acrobat PDF
File Size337652
File SHA-2565c3e10bf1a95816d4c8ebb8f4e2e3bf9cade04749e421c61ca2b28fb7f046c66
PDF Metadata ProducerPScript5.dll Version 5.2 Acrobat Distiller 6.0.1 (Windows)
FCC.gov SourcesFCC.gov 443959
