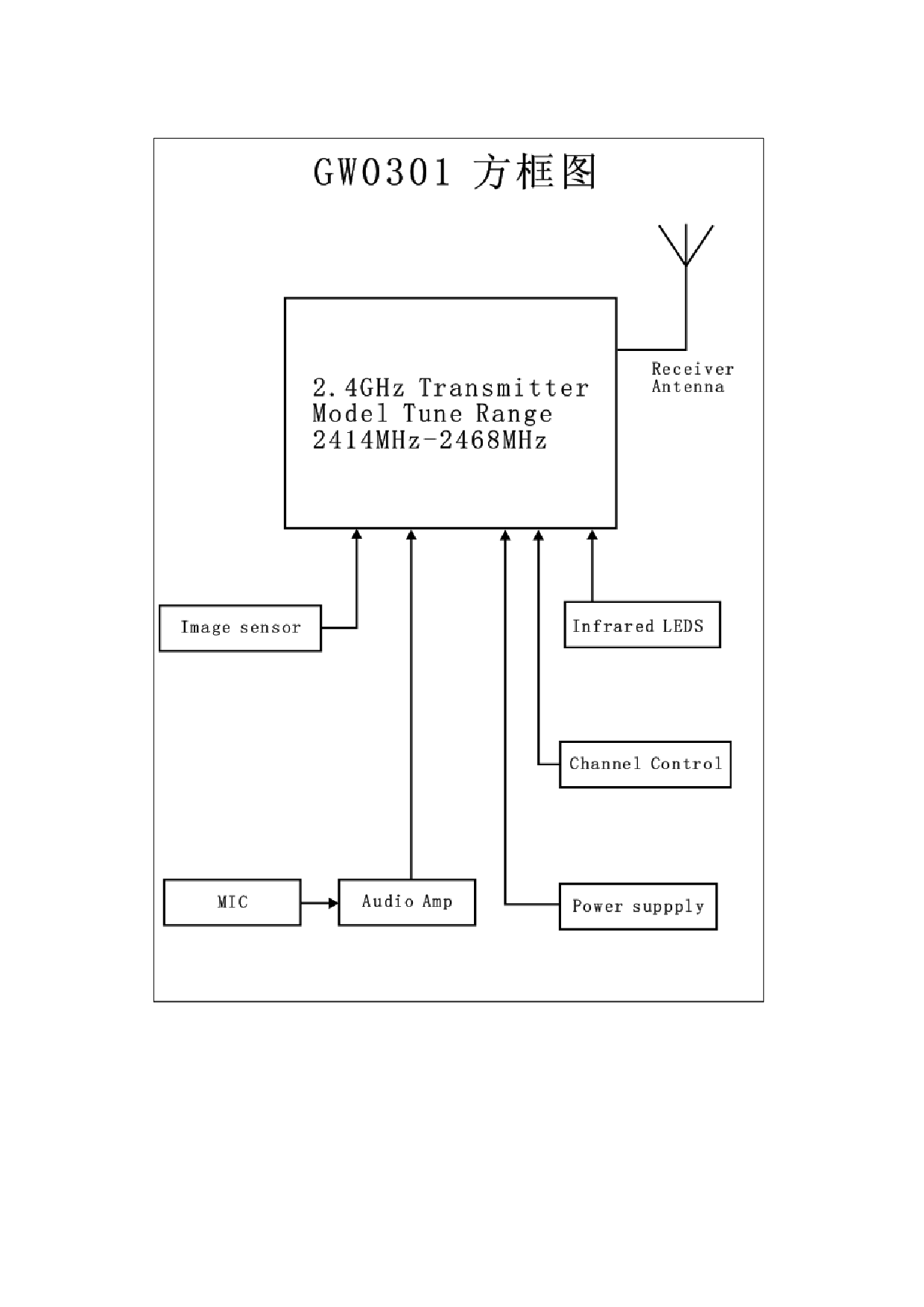

GW0301 2.4GHz WIRELESS CAMERA Block Diagram - FCC ID RFQGW0301

FCC ID RFQGW0301

BLOCK DIAGRAM

2.4GHz WIRELESS CAMERA

by Shenzhen Goodwill Electrical Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDRFQGW0301
Document ID818274
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleBlock Diagram
ApplicantShenzhen Goodwill Electrical Co., Ltd.
Equipment Class2.4GHz WIRELESS CAMERA
Product CodeGW0301
Application IDznZYk6r/rGDILQN3efBFKg==
Application PurposeOriginal Equipment
Application Date2007-07-19
Frequency Range2414-2468 MHz
FRN0009496662
Test FirmSinTek Laboratory Co., Ltd.
Certified ByWEI LIU GENERAL MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-07-19
Available2007-07-19
Created2007-07-18
Modified2007-07-19
Pages1
File TypeAdobe Acrobat PDF
File Size20101
File SHA-256c572cca5b0d9be991fa11eba90c3110a75fa116cc5e63acf5bb11e20bd1ced34
PDF Metadata AuthorOwner
PDF Metadata CreatorpdfFactory Pro www.fineprint.cn
PDF Metadata ProducerpdfFactory Pro 2.46 (Windows XP Home Chinese)
FCC.gov SourcesFCC.gov 818274
