FCC ID RID-LR101H
LoRa Wireless Module
by GlobalSat WorldCom Corporation
Grantee Code: RID Product Code: LR101H
Latest application date: 2015-11-24
Device Images
FCC ID Device Details
| FCC ID | RID-LR101H |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | RID |
| Product Code | LR101H |
| Applicant Business | GlobalSat WorldCom Corporation 🇹🇼 |
| Related Domains |  globalsat.com.tw |
| Equipment Class | LoRa Wireless Module |
| Test Firm | Bay Area Compliance Laboratories Corp. (Dongguan) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 903-927 MHz | Original Equipment | 2015-11-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-11-24 | PDF 312.5 KB |
| Int Photos | Internal Photos | 2015-11-24 | PDF 219.6 KB |
| Ext Photos | External Photos | 2015-11-24 | PDF 316.8 KB |
| FCC ID Label | ID Label/Location Info | 2015-11-24 | PDF 56.1 KB |

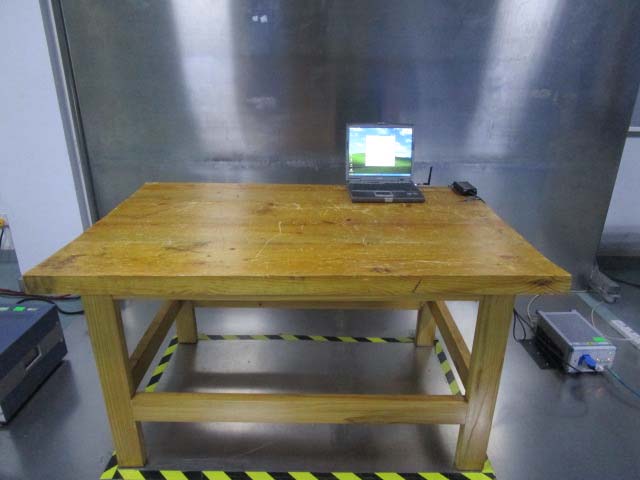

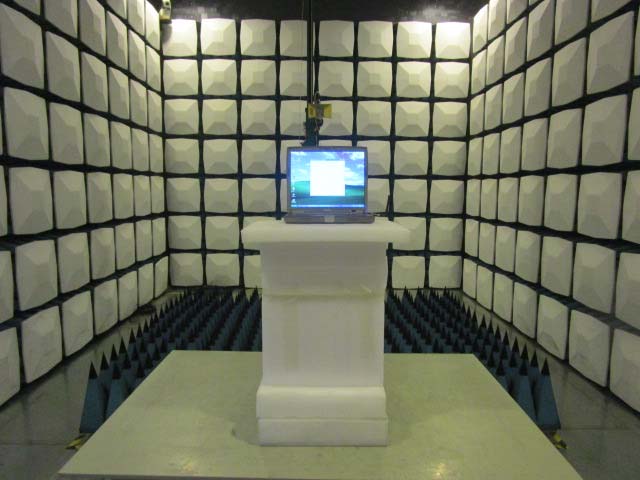

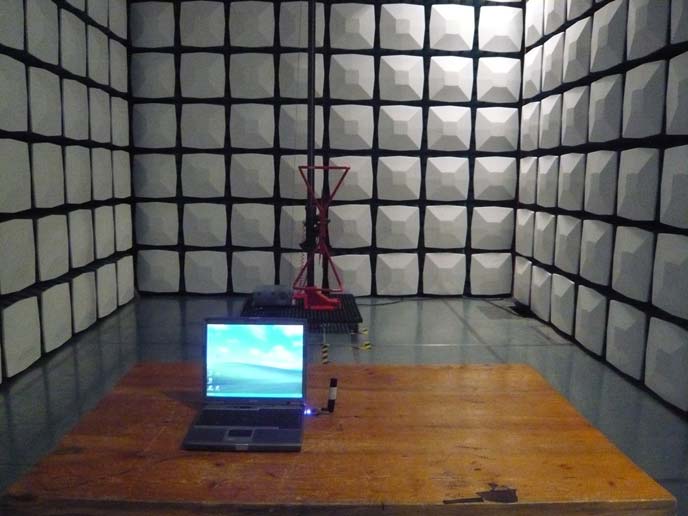

| Setup Photos | Test Setup Photos | 2015-11-24 | PDF 259 KB |
| Test Report | Test Report | 2015-11-24 | PDF 709.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2015-11-24 | PDF 80.1 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-11-24 | PDF 39.6 KB |
| POA | Cover Letter(s) | 2015-11-24 | PDF 24.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 55.1 KB | |
| Schematics Metadata only | Schematics | PDF 61.5 KB | |
| Circuit Description Metadata only | Operational Description | PDF 14.9 KB |
Application Information
| Application ID | dnGOjzCwhdH5OxEaq9cSsQ== |
|---|---|
| Final Action Date | 2015-11-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017928177 |
| Model | LR101H |
| Frequency Range | 903-927 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | LoRa Wireless Module |
| Responsible Party | Ray Tsai, Director, ray.tsai@globalsat.com.tw , 886-2-82263799 |
| Test Firm | John Chan, Bay Area Compliance Laboratories Corp. (Dongguan), john.chan@baclcorp.com  , 86-769-86858888 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This module is approved for use only in the mobile/desktop configurations associated with this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| dnGOjzCwhdH5OxEaq9cSsQ== | 2015-11-24 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 903-927 MHz | 0.0820000 | 15C |
Grants
TCB Grant - Application dnGOjzCwhdH5OxEaq9cSsQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| GlobalSat WorldCom Corporation |
| 16F., No.186, Jian 1st Rd. Zhonghe Dist., |
| New Taipei City, 23553 Taiwan |
| Attention: Ray Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RID-LR101H |
| Name of Grantee: | GlobalSat WorldCom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | LoRa Wireless Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 903.0 - 927.0 | 0.082 |
| Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This module is approved for use only in the mobile/desktop configurations associated with this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application dnGOjzCwhdH5OxEaq9cSsQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
GlobalSat WorldCom Corporation 16F., No.186, Jian 1st Rd. Zhonghe Dist., New Taipei City, 23553 Taiwan |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Attention: Ray Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RID-LR101H |
| Name of Grantee: | GlobalSat WorldCom Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | LoRa Wireless Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 903.0 - 927.0 | 0.082 |
| Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This module is approved for use only in the mobile/desktop configurations associated with this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: |
