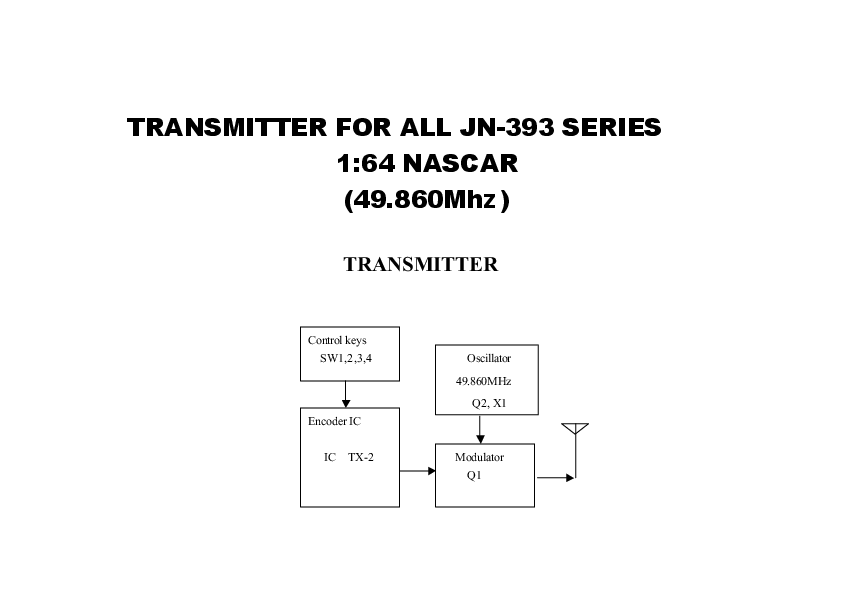

TUPDJN393049T RC Car Block Diagram - FCC ID RJ2TUPDJN-393049T

FCC ID RJ2TUPDJN-393049T

Block Diagram

RC Car

by Team Up Product Dev. Co. Ltd.

Document preview loads when visible.

Document Details

FCC IDRJ2TUPDJN-393049T
Document ID489032
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleSchematic
ApplicantTeam Up Product Dev. Co. Ltd.
Equipment ClassRC Car
Product CodeTUPDJN393049T
Application IDmCxQDLdASkHbkF4yHLVoZQ==
Application PurposeOriginal Equipment
Application Date2004-11-17
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-17
Available2004-11-17
Created2004-11-04
Modified2004-11-04
Pages1
File TypeAdobe Acrobat PDF
File Size193198
File SHA-256ffb4f8ab89c7f89e859be8c8e41f74ef2954d402655da5e015a78a7dc21c4ecd
PDF Metadata Authorgc2
PDF Metadata ProducerProtel Schematic Acrobat PDFWriter 4.0 for Windows
FCC.gov SourcesFCC.gov 489032
